TPE2 50-180 N-A-F-A-BQBE-GYC [99223249]

TPE2 50-180 N-A-F-A-BQBE-GYC [99223249]

Grundfos
Normale prijs €5.051,02 EUR
Normale prijs €6.313,78 EUR Aanbiedingsprijs €5.051,02 EUR
Aanbieding
Belastingen inbegrepen. Verzendkosten worden berekend bij de checkout.
Prijs (ex BTW): €4.174,40

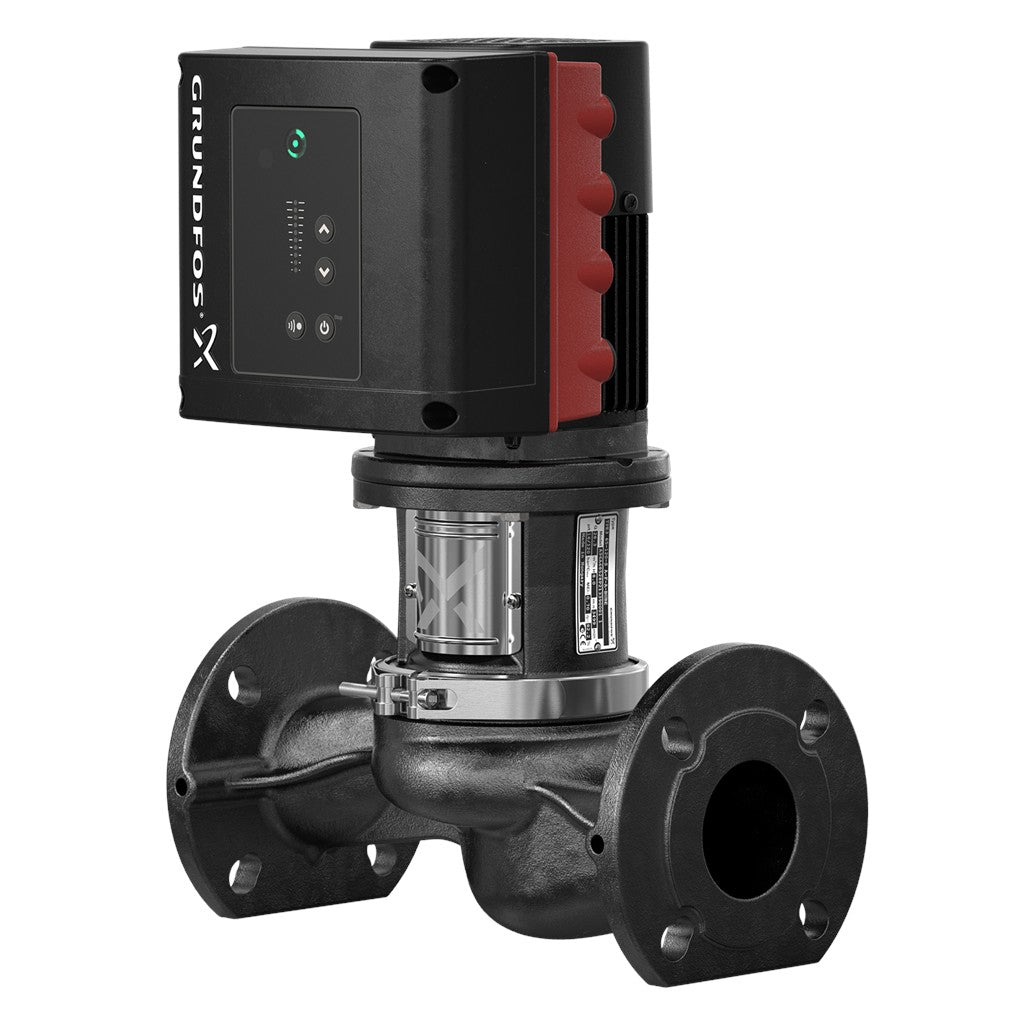

Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The shaft seal is according to EN 12756. Pipework connection is via PN 6/10 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is fitted with a fan-cooled, permanent-magnet synchronous motor. The pump is fitted

Specs Table

Regeling:
Frequency converter:Geïntegreerd
Vloeistof:
Te verpompen medium:Water
Bereik vloeistoftemperatuur:0 .. 120 °C
Medium temperatuur tijdens bedrijf:20 °C
Dichtheid:998.2 kg/m³

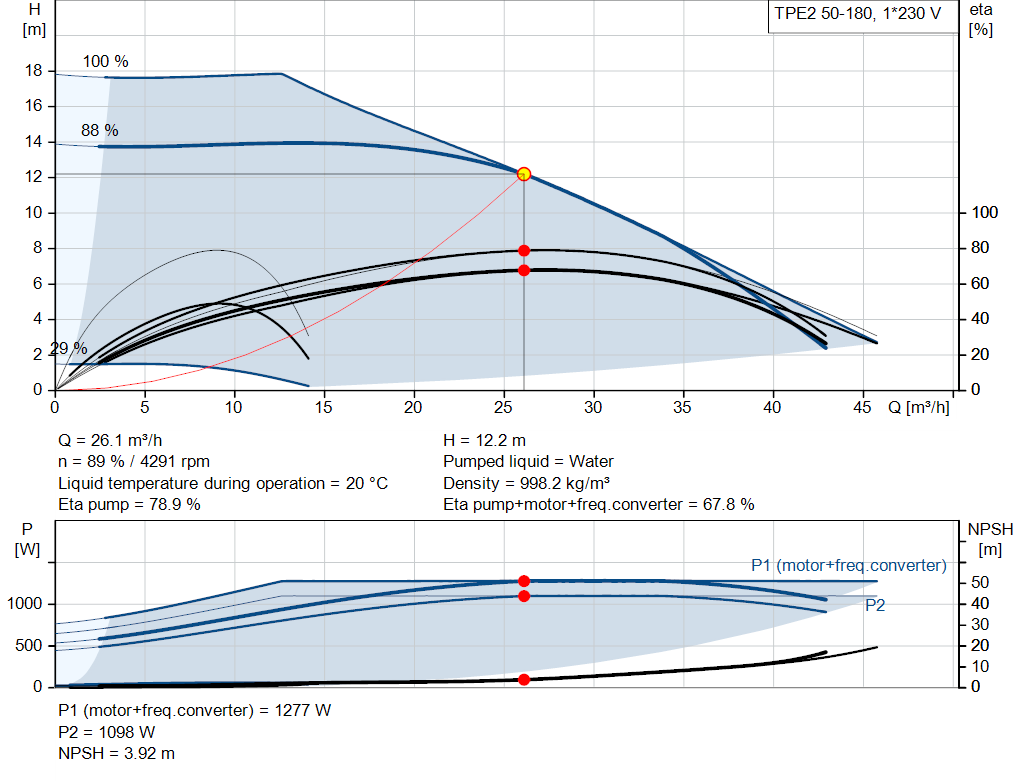

Technisch:
Toerental waarop de pompgegevens zijn gebaseerd:4360 omw/min
Nominaal debiet:26.1 m³/u
Nominale opvoerhoogte:12.2 m
Werkelijke waaierdiameter:74 mm
Primaire asafdichting:BQBE
Code voor asafdichting:BQBE
Curve tolerantie:ISO9906:2012 3B2
Materialen:
Pomphuis:Gietijzer
Pomp behuizing:EN-GJL-250
Pomphuis:ASTM class 35
Waaier:Composiet
 PES+30% GF
Installatie:
Bereik van omgevingstemperatuur:-20 .. 50 °C
Maximale bedrijfsdruk:10 bar
Max. druk bij toegestane temp:10 bar / 120 °C
Leidingaansluiting standaard:EN 1092-2
Type aansluiting:DIN
Grootte van aansluiting:DN 50
Druktrap voor leidingaansluiting:PN 6/10

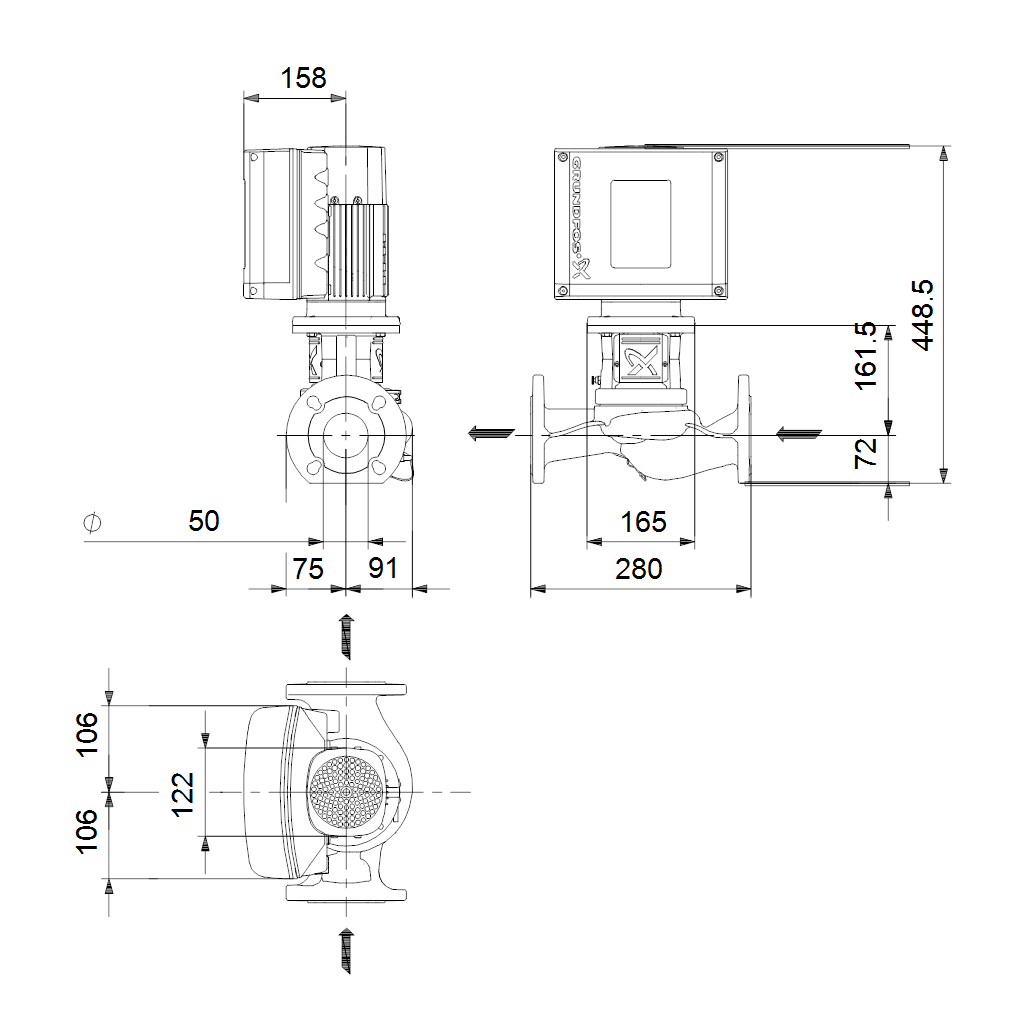

Inbouwlengte:280 mm
Flensmaat van de motor:56C

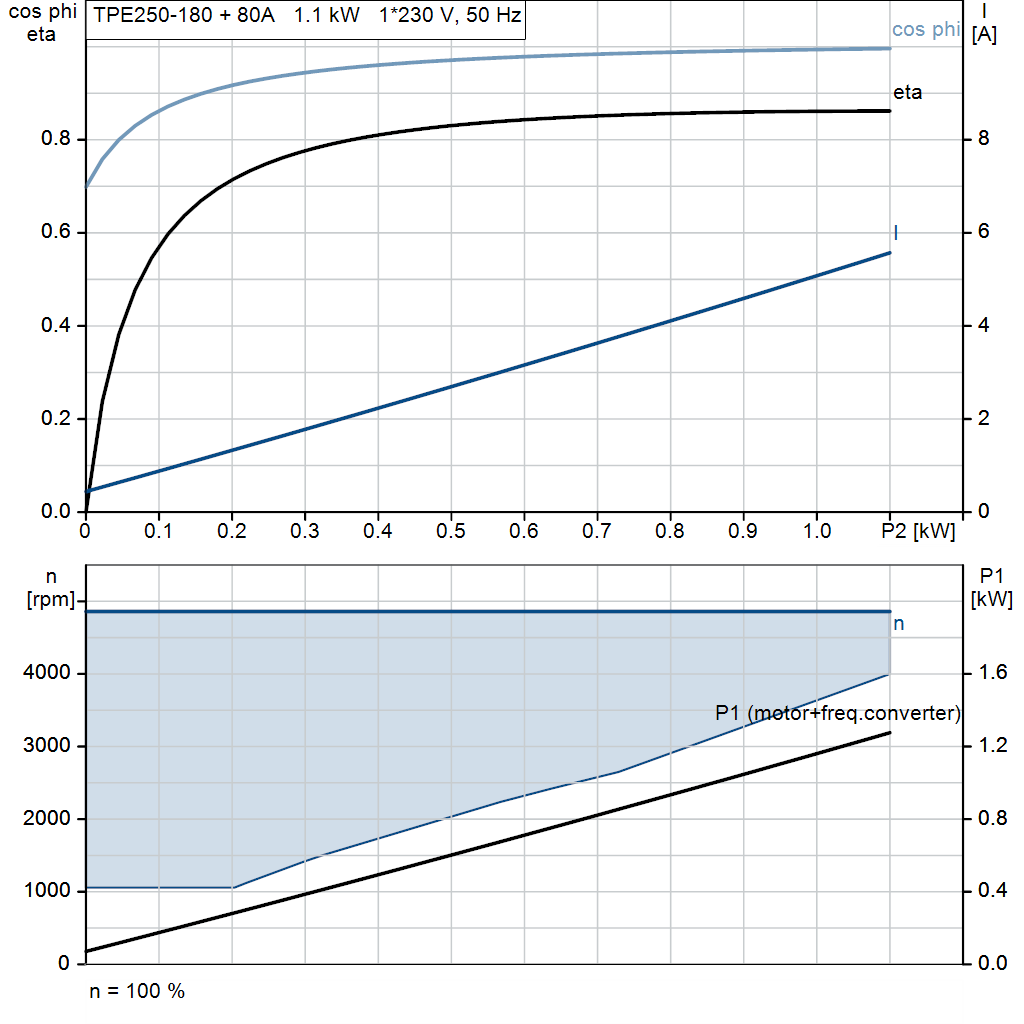

Elektrische gegevens:
Motortype:80A
Nominaal vermogen - P2:1.1 kW
Netfrequentie:50 / 60 Hz
Nominale spanning:1 x 200-240 V
Nominaalstroom:6.8-5.7 A
Cos phi - vermogensfactor:0.99
Nominaal toerental:480-5900 omw/min
IE efficiëntieklasse:IE5
Motorrendement bij nominale belasting:85.7 %
Pooltal:0
Dichtheidsklasse (IEC 34-5):IP55
Isolatie klasse (IEC 85):F
Motor Nr.:99138030
Overige:
Minimale Efficiëntie Index, MEI ≥:0.70
Netto gewicht:25.2 kg
Bruto gewicht:32.4 kg
Transportvolume:0.104 m³
