SP 5A-60 [5101960]
SP 5A-60 [5101960]
Grundfos
Normale prijs
€7.520,05 EUR
Normale prijs
€11.223,96 EUR
Aanbiedingsprijs
€7.520,05 EUR
Eenheidsprijs
/
per
Belastingen inbegrepen.
Verzendkosten worden berekend bij de checkout.
Prijs (ex BTW): €6.214,92
Kan beschikbaarheid voor afhalen niet laden

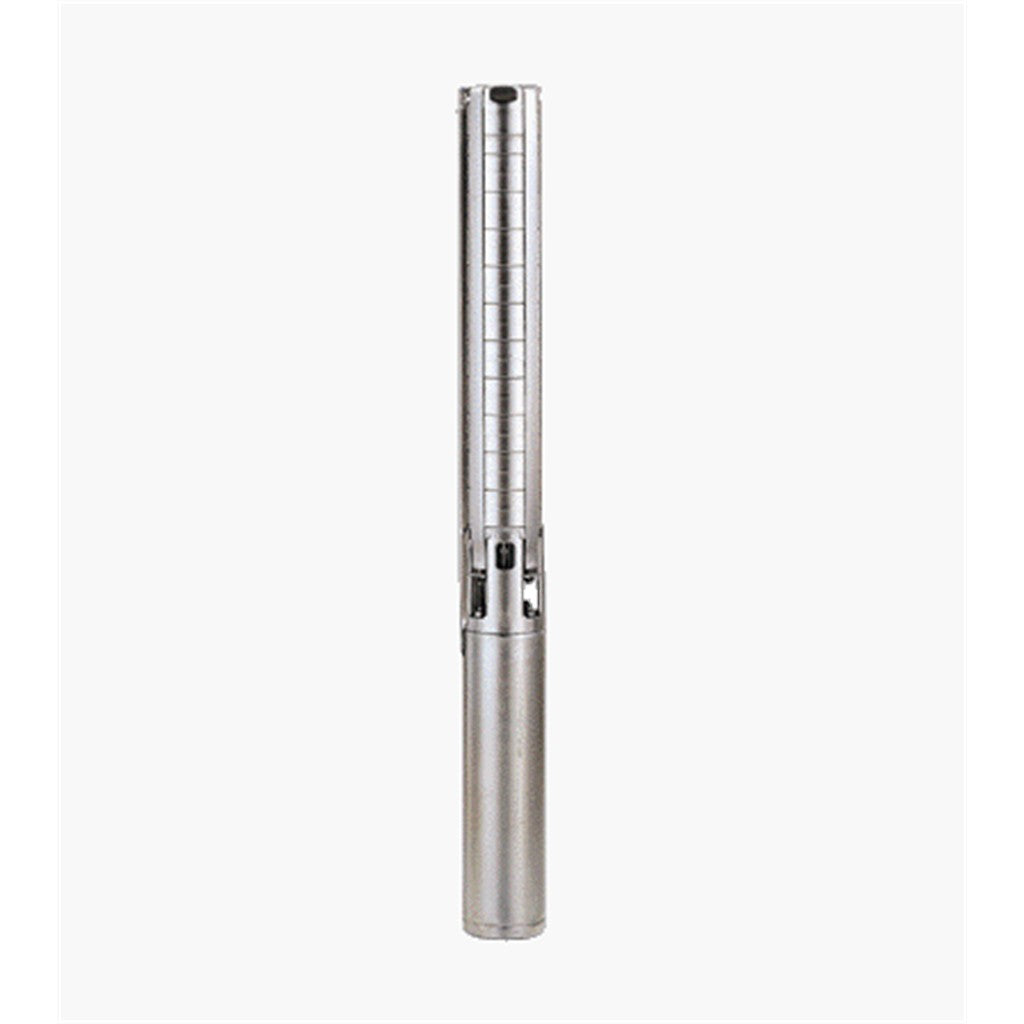

Submersible borehole pump, suitable for pumping clean water. Can be installed vertically or horizontally. All steel components are made in stainless steel, EN 1.4301 (AISI 304), that ensures high corrosive resistance. This pump carries drinking water approval. The pump is fitted with a 5.5 kW MS6000 motor with sand shield, mechanical shaft seal, water-lubricated journal bearings and a volume compensating diaphragm. The motor is a canned type submersible motor offering good mechanical stabili
Specs Table
| Vloeistof: | |
| Te verpompen medium: | Water |
| Bereik vloeistoftemperatuur: | -15 .. 40 °C |
| Max. vloeistoftemp. bij 0.15 m/sec: | 40 °C |
| Medium temperatuur tijdens bedrijf: | 20 °C |
| Dichtheid: | 998.2 kg/m³ |
| Technisch: | |

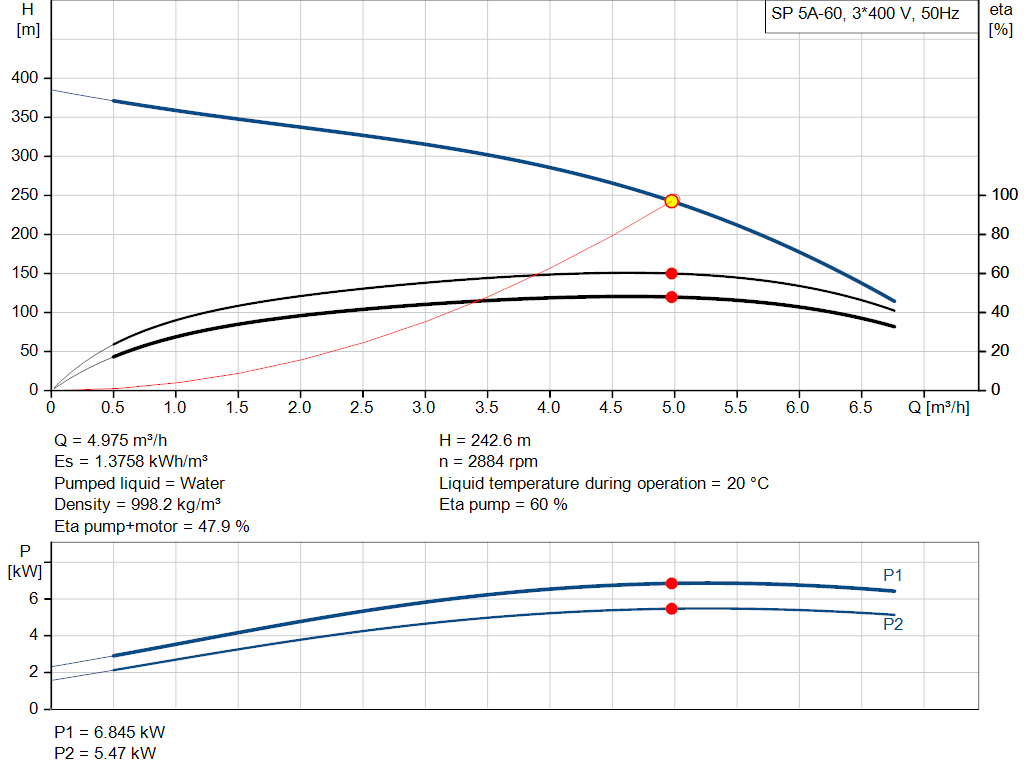

| Pompsnelheid waarop pompgegevens zijn gebaseerd: | 2900 omw/min |
| Nominaal debiet: | 5 m³/u |
| Nominale opvoerhoogte: | 245 m |
| Asafdichting voor motor: | CER/CARNBR |
| Goedkeuringen: | CE,EAC,UKCA,SEPRO,MOROCCO |
| Drinkwater keurmerk: | ACS,DM174 |
| Curve tolerantie: | ISO9906:2012 3B |
| Motorversie: | T40 |
| Terugslagklep: | YES |
| Specificaties aseinde: | CYLINDRICAL |
| Materialen: | |
| Pomp: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Waaier: | Roestvast staal |
| EN 1.4301 | |
| AISI 304 | |
| Motor: | Roestvast staal |
| DIN W.-Nr. 1.4301 | |
| AISI 304 | |
| Installatie: | |
| Maximale omgevingsdruk: | 60 bar |
| Maximale bedrijfsdruk: | 60 bar |
| Maximaal toelaatbare uitlaatdruk: | 39.3 bar |
| Type aansluiting: | Rp |

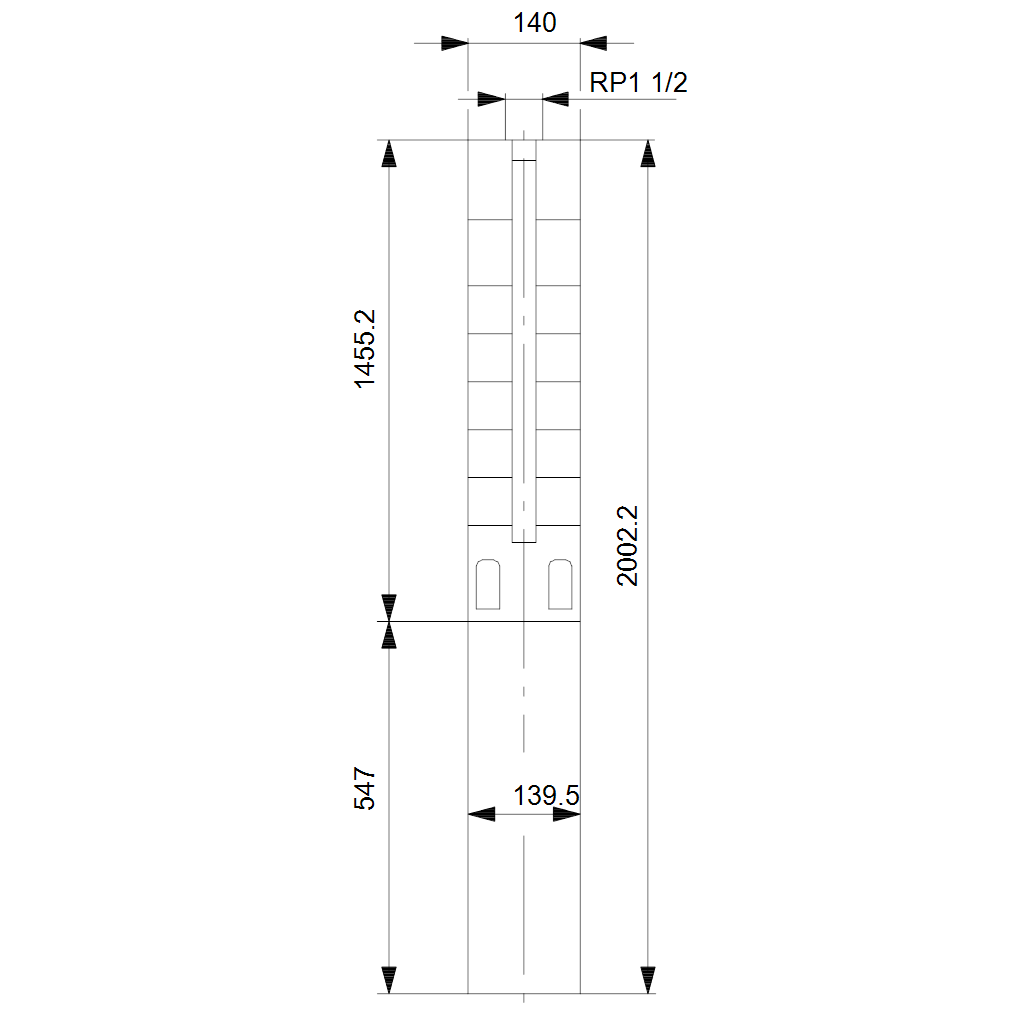

| Maat van de aansluiting: | 1 1/2 inch |
| Motor diameter: | 6 inch |
| Minimale diameter van boorgat: | 145 mm |
| Elektrische gegevens: | |

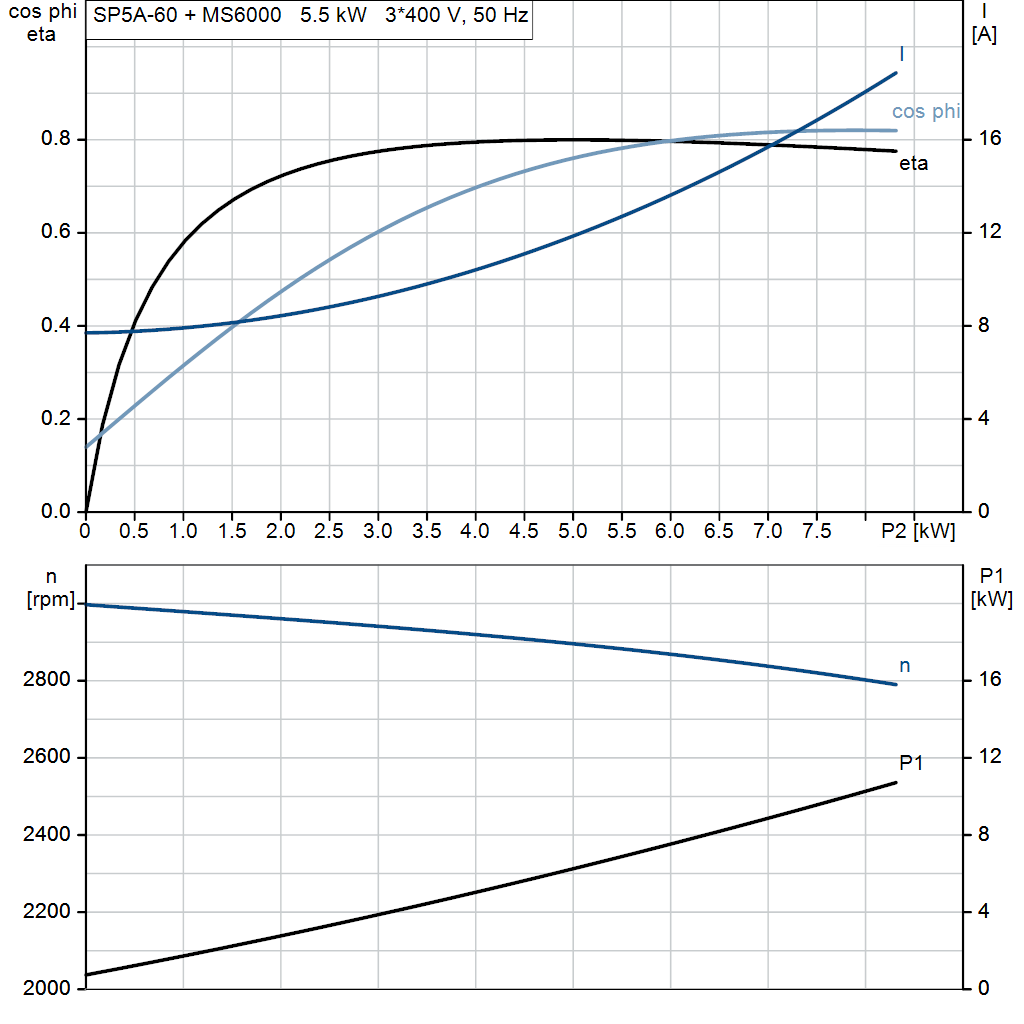

| Motortype: | MS6000 |
| Ontwerp motorflens: | Grundfos |
| Nominaal vermogen - P2: | 5.5 kW |
| Vermogen (P2) benodigd voor pomp: | 5.5 kW |
| Netfrequentie: | 50 Hz |
| Nominale spanning: | 3 x 380-400-415 V |
| Nominaalstroom: | 13.6-13.4-13.6 A |
| Startstroom: | 470-510-520 % |
| Cos phi - vermogensfactor: | 0.82-0.78-0.75 |
| Nominaal toerental: | 2870-2880-2890 omw/min |
| Aanloopmethode: | direct-on-line |
| Dichtheidsklasse (IEC 34-5): | IP68 |
| Isolatie klasse (IEC 85): | F |
| Ingebouwde temp. opnemer: | ja |
| Kabellengte: | 5 m |
| Type kabel: | FLAT |
| Motor Nr.: | 78195511 |
| Windingen: | Enamelled |
| Overige: | |
| Minimale Efficiëntie Index, MEI ≥: | 0.50 |
| Netto gewicht: | 58.4 kg |
| Bruto gewicht: | 92.6 kg |
| Transportvolume: | 0.253 m³ |
| Milieukeurmerken: | WEEE |
