SP 14-13 [98809288]
SP 14-13 [98809288]
Grundfos
Normale prijs
€3.525,21 EUR
Normale prijs
€5.036,02 EUR
Aanbiedingsprijs
€3.525,21 EUR
Eenheidsprijs
/
per
Belastingen inbegrepen.
Verzendkosten worden berekend bij de checkout.
Prijs (ex BTW): €2.913,40
Kan beschikbaarheid voor afhalen niet laden

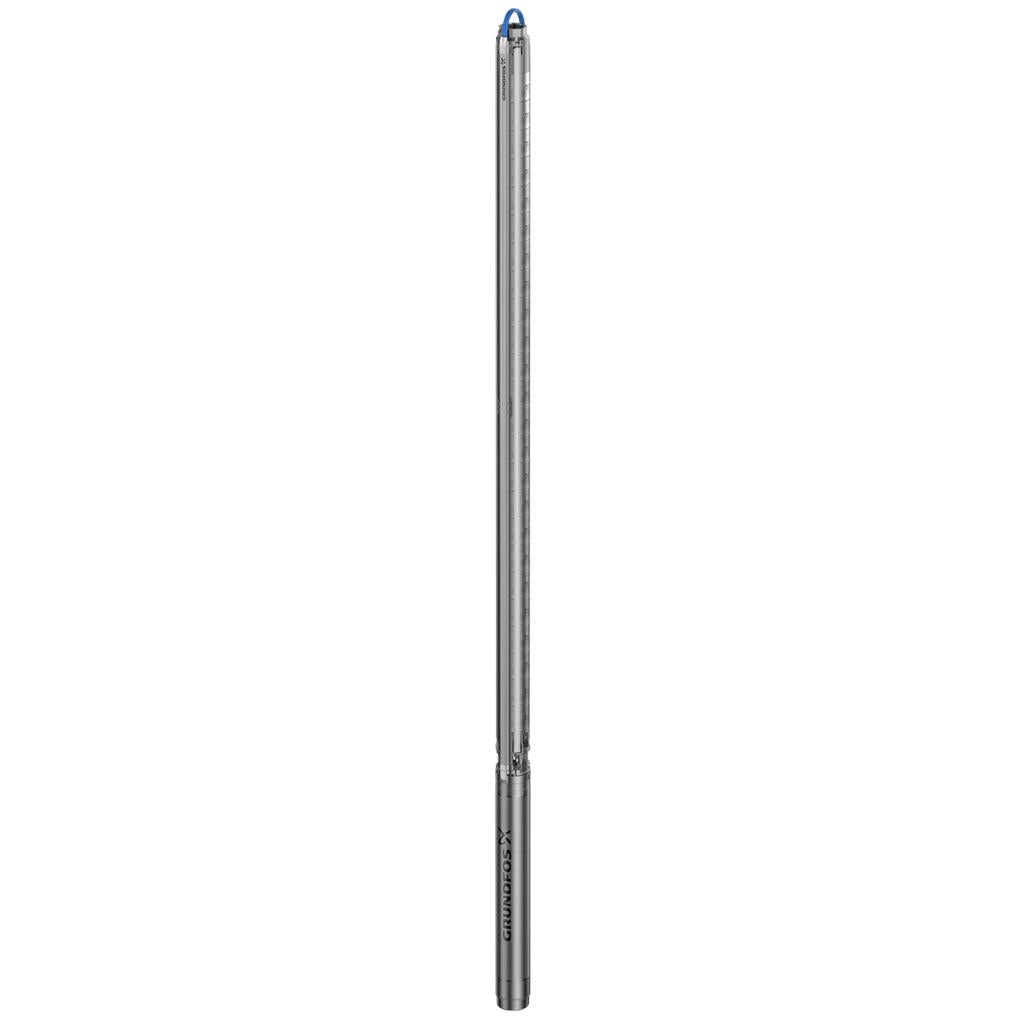

Onderwatermotorpomp, geschikt voor het verpompen van schoon water. Kan zowel verticaal als horizontaal worden geïnstalleerd. Alle stalen onderdelen zijn gemaakt van rvs, EN 1.4301 (AISI 304), dat hoge corrosieweerstand biedt. Deze pomp is goedgekeurd voor het verpompen van drinkwater.
Specs Table
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -15 .. 40 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |
| Pump speed on which pump data are based: | 2900 rpm |
| Rated flow: | 14 m³/h |
| Rated head: | 56.2 m |
| Approvals: | CE,EAC,UKCA,SEPRO,MOROCCO |
| Approvals for motor: | CE,EAC,C_UL_US_NSF372MOROCCO,UKCA,SEPRO,RCM |
| Approvals for drinking water: | ACS,DM174 |
| Curve tolerance: | ISO9906:2012 3B |
| Motor version: | T40 |
| Return valve: | YES |
| Materials: | |
| Pump: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Motor: | Stainless steel |
| EN 1.4301 | |
| Shaft seal: | HM/Ceramics |
| Installation: | |
| Maximum ambient pressure: | 60 bar |
| Maximum operating pressure: | 60 bar |
| Maximum outlet pressure: | 7.9 bar |
| Type of connection: | Rp |
| Size of connection: | 2 inch |
| Motor diameter: | 4 inch |
| Minimum borehole diameter: | 105 mm |
| Electrical data: | |
| Motor type: | MS4000 |
| Motor flange design: | NEMA |
| Rated power - P2: | 3 kW |
| Power (P2) required by pump: | 3 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-400-415 V |
| Rated current: | 7.7-7.9-8.1 A |
| Starting current: | 430-450-460 % |
| Cos phi - power factor: | 0.86-0.81-0.77 |
| Rated speed: | 2830-2850-2870 rpm |
| Method of start: | Direct-on-line (DOL) |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Built-in motor protection: | NONE |
| Thermal protection: | External |
| Built-in temp. transmitter: | Yes |
| Length of cable: | 2.5 m |
| Power cable type: | FLAT |
| Motor No: | 7C193508 |
| Windings: | Enameled |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.50 |
| Net weight: | 31.4 kg |
| Gross weight: | 37 kg |
| Shipping volume: | 0.068 m³ |
| Country of origin: | DK |
| Custom tariff no.: | 84137029 |
| Environmental approvals: | WEEE |
