NK 50-250/257 AY1F2IESBQQEXW2 [97690963]
NK 50-250/257 AY1F2IESBQQEXW2 [97690963]
Grundfos
Normale prijs
€9.276,34 EUR
Normale prijs
€11.595,43 EUR
Aanbiedingsprijs
€9.276,34 EUR
Eenheidsprijs
/
per
Belastingen inbegrepen.
Verzendkosten worden berekend bij de checkout.
Prijs (ex BTW): €7.666,40
Kan beschikbaarheid voor afhalen niet laden

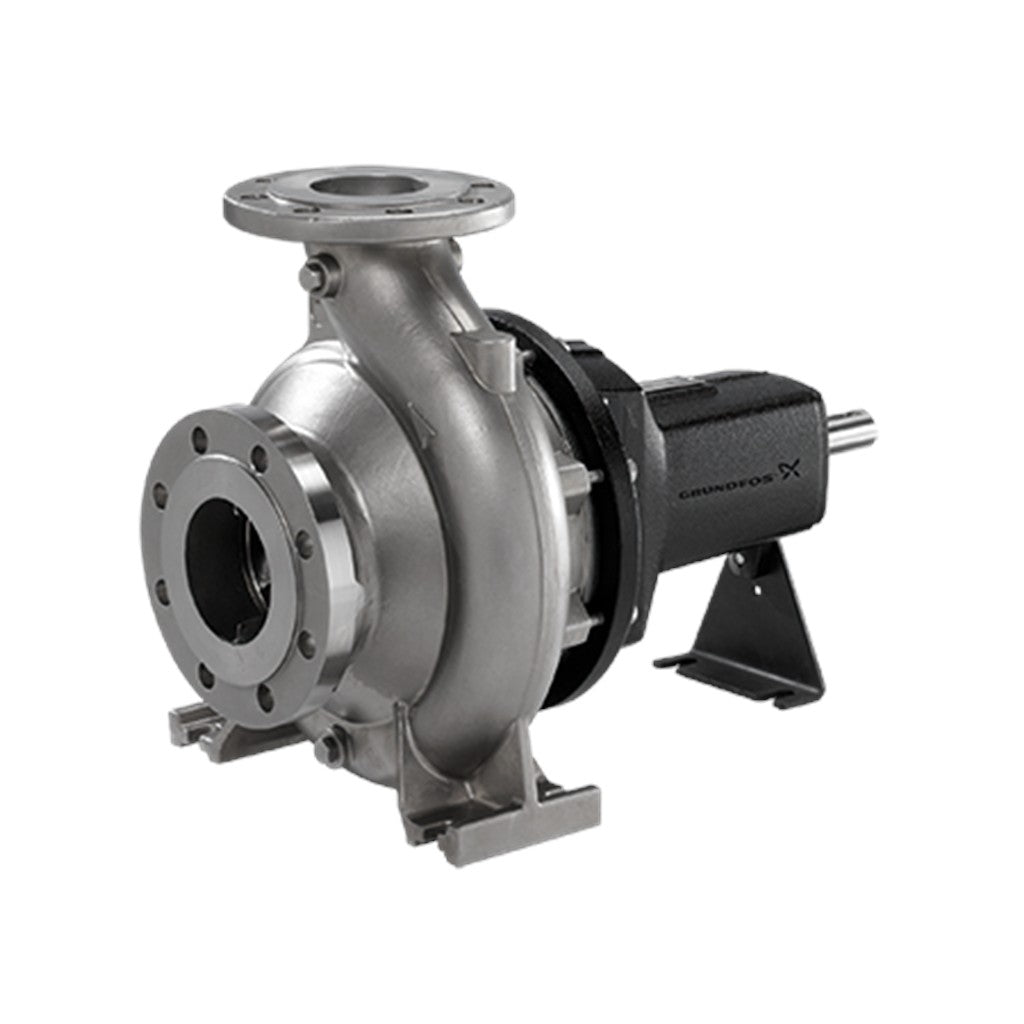

Non-self-priming, single-stage, centrifugal pump designed according to ISO 5199 with dimensions and rated performance according to EN 733. Flanges are PN 16 with dimensions according to EN 1092-1. The pump has an axial suction port, a radial discharge port and horizontal shaft. It is of the back pull-out design enabling removal of the motor, coupling, bearing bracket and impeller without disturbing the pump housing or pipework. The unbalanced rubber bellows seal is according to DIN EN 12756.
Specs Table
| Regeling: | |
| Frequency converter: | NONE |
| Druksensor: | N |
| Vloeistof: | |
| Te verpompen medium: | Water |
| Bereik vloeistoftemperatuur: | -25 .. 120 °C |
| Medium temperatuur tijdens bedrijf: | 20 °C |
| Dichtheid: | 998.2 kg/m³ |
| Technisch: | |

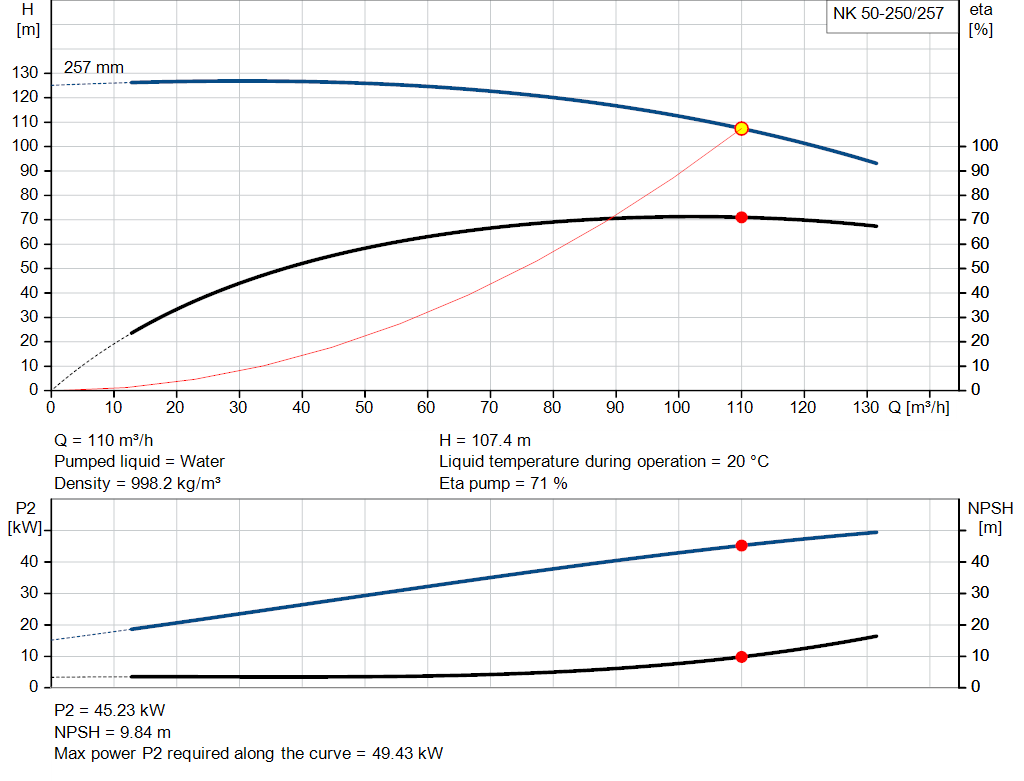

| Toerental waarop de pompgegevens zijn gebaseerd: | 3500 omw/min |
| Nominaal debiet: | 110 m³/u |
| Pomp met motor: | N |
| Nominale opvoerhoogte: | 107.4 m |
| Werkelijke waaierdiameter: | 257 mm |
| Nominale waaierdiameter: | 250 |
| Primaire asafdichting: | BQQE |
| Code voor asafdichting: | BQQE |
| Type mechanische asafdichting: | Single |
| Curve tolerantie: | ISO9906:2012 3B |
| Lager ontwerp: | Standaard |
| Min. pomp snelheid: | 500 omw/min |
| Max. pomp snelheid: | 3700 omw/min |
| Materialen: | |
| Pomphuis: | Roestvast staal |
| Pomp behuizing: | EN 1.4408 |
| Pomphuis: | ASTM CF8M |
| Slijtring: | Stainless steel |
| EN 1.4517 | |
| ASTM CD4MCuN | |
| Waaier: | Roestvast staal |
| EN 1.4408 | |
| ASTM CF8M | |
| Interne coating pomphuis: | No coating |
| As: | Stainless steel |
| EN 1.4462 | |
| SAF 2205 | |
| Installatie: | |

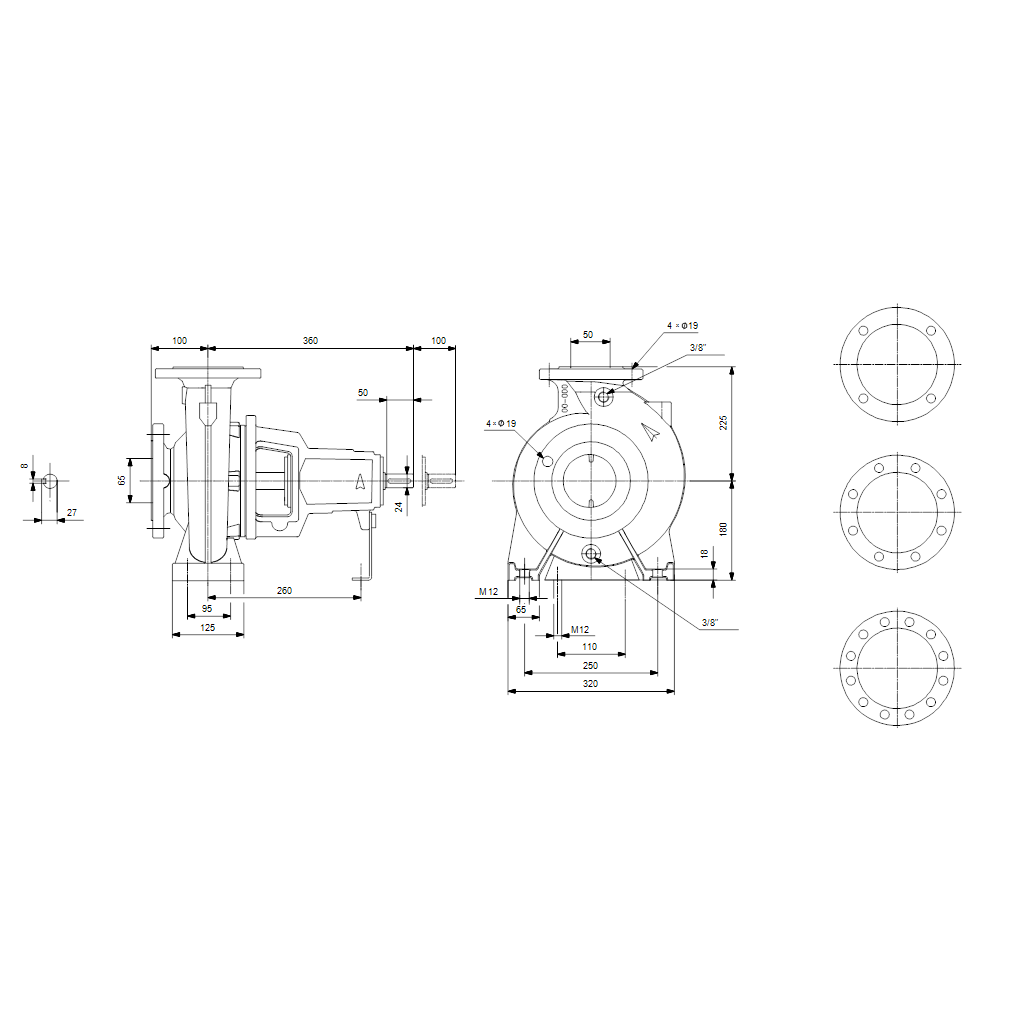

| Maximale bedrijfsdruk: | 16 bar |
| Leidingaansluiting standaard: | EN 1092-1 |
| Type zuig aansluiting: | DIN |
| Type persaansluiting: | DIN |
| Maat van de zuigaansluiting: | DN 65 |
| Maat van de persaansluiting: | DN 50 |
| Druktrap voor leidingaansluiting: | PN 16 |
| Voegen (ja/nee): | N |
| Overige: | |
| Minimale Efficiëntie Index, MEI ≥: | 0.61 |
| DOE pomp energie-index CL: | 0.93 |
| DOE pomp energie-index VL: | 0.00 |
| Netto gewicht: | 60 kg |
| Bruto gewicht: | 69.5 kg |
| Transportvolume: | 0.383 m³ |
| Taal op pompnaamplaat: | GB |
