NBE 32-125/122 AAF2KESBQQEJWB [99102469]
NBE 32-125/122 AAF2KESBQQEJWB [99102469]
Grundfos
Normale prijs
€7.859,19 EUR
Normale prijs
€9.823,99 EUR
Aanbiedingsprijs
€7.859,19 EUR
Eenheidsprijs
/
per
Belastingen inbegrepen.
Verzendkosten worden berekend bij de checkout.
Prijs (ex BTW): €6.495,20
Kan beschikbaarheid voor afhalen niet laden

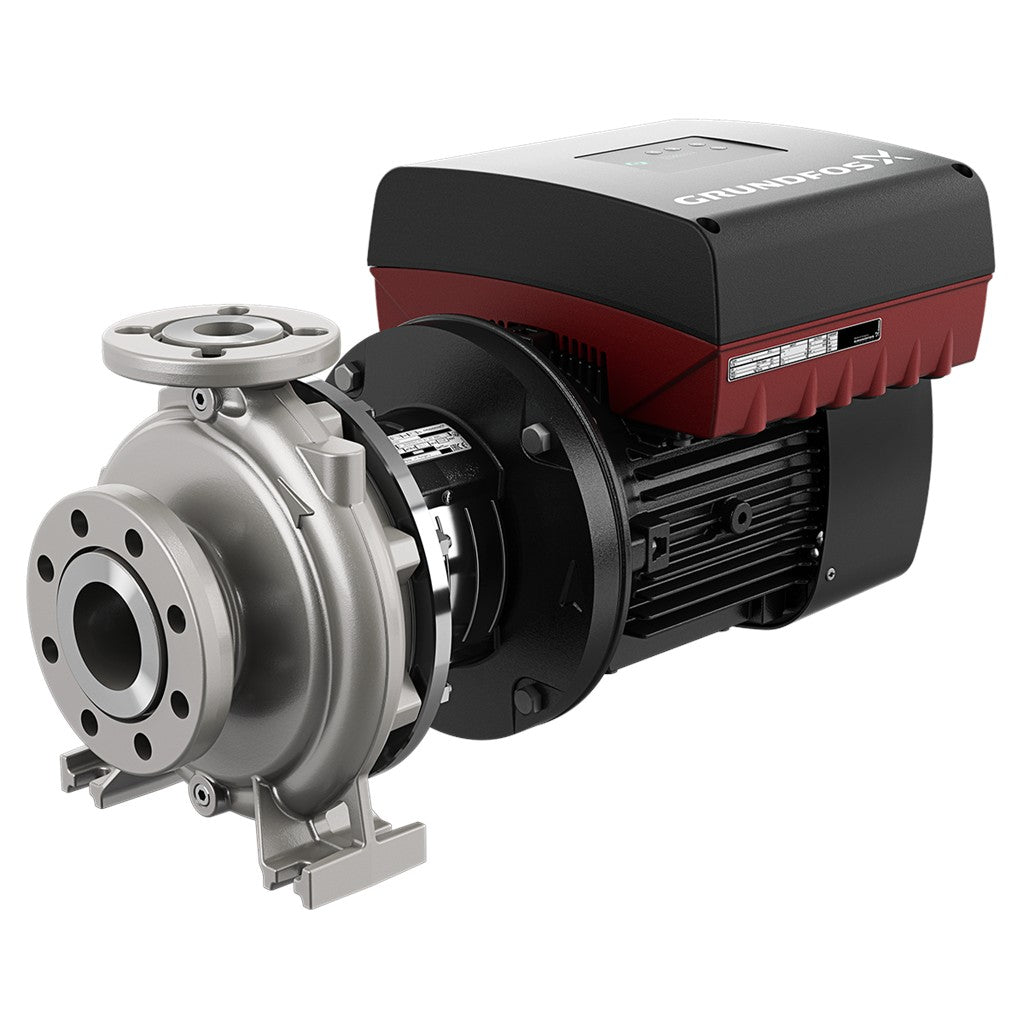

Non-self-priming, single-stage, centrifugal volute pump designed according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar). Flanges are PN 16 with dimensions according to EN 1092-1. The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework. The unbalanced rubber bellows seal is according to DIN EN 12756. The
Specs Table
| Regeling: | |
| Frequency converter: | Geïntegreerd |
| Druksensor: | N |
| Vloeistof: | |
| Te verpompen medium: | Water |
| Bereik vloeistoftemperatuur: | -25 .. 120 °C |
| Medium temperatuur tijdens bedrijf: | 20 °C |
| Dichtheid: | 998.2 kg/m³ |

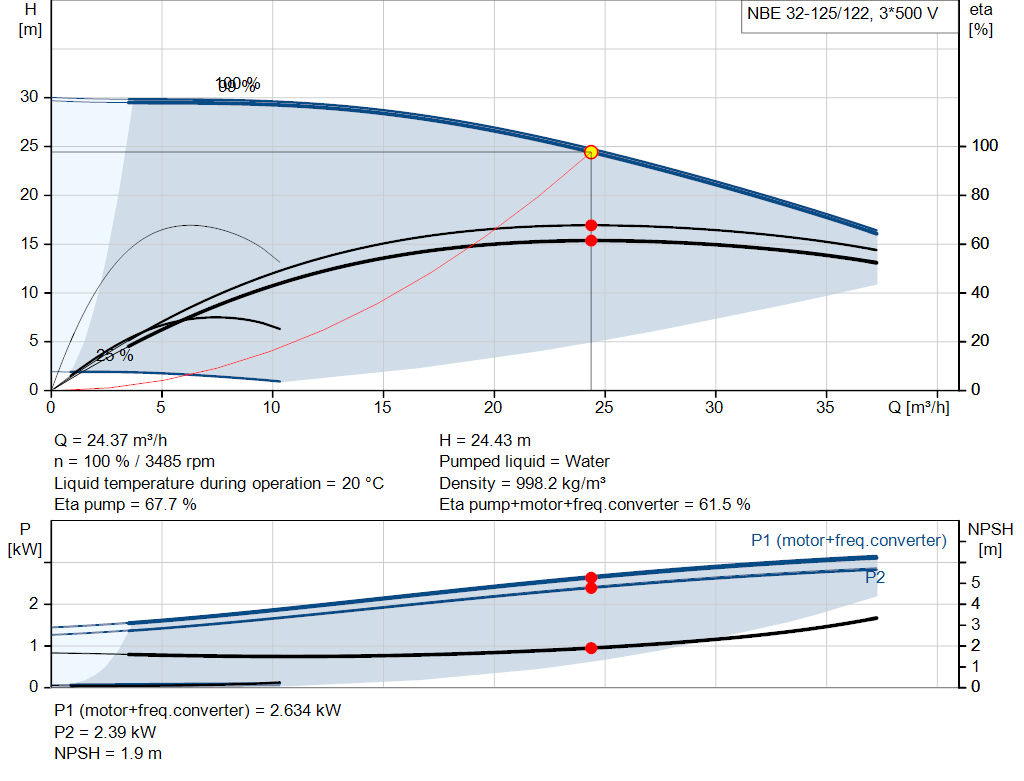

| Technisch: | |
| Toerental waarop de pompgegevens zijn gebaseerd: | 3481 omw/min |
| Nominaal debiet: | 24.37 m³/u |
| Nominale opvoerhoogte: | 24.43 m |
| Werkelijke waaierdiameter: | 122 mm |
| Nominale waaierdiameter: | 125 |
| Asafdichting arrangement: | Enkel |
| Primaire asafdichting: | BQQE |
| Code voor asafdichting: | BQQE |
| Curve tolerantie: | ISO9906:2012 3B2 |
| Lager ontwerp: | Standaard |
| Materialen: | |
| Pomphuis: | Roestvast staal |
| Pomp behuizing: | EN 1.4408 |
| Pomphuis: | ASTM CF8M |
| Slijtring: | Stainless steel |
| EN 1.4517 | |
| ASTM CD4MCuN | |
| Waaier: | Roestvast staal |
| EN 1.4408 | |
| ASTM CF8M | |
| Interne coating pomphuis: | No coating |
| As: | Stainless steel |
| EN 1.4401 | |
| AISI 316 | |
| Installatie: | |
| Bereik van omgevingstemperatuur: | -20 .. 50 °C |
| Maximale bedrijfsdruk: | 16 bar |
| Leidingaansluiting standaard: | EN 1092-1 |
| Maat van de zuigaansluiting: | DN 50 |
| Maat van de persaansluiting: | DN 32 |
| Druktrap voor leidingaansluiting: | PN 16 |
| Lagersmering: | Grease |
| Pomphuis met voeten: | Yes |
| Ja = met ondersteuningsblok, Nee = zonder ondersteuningsblok: | N |

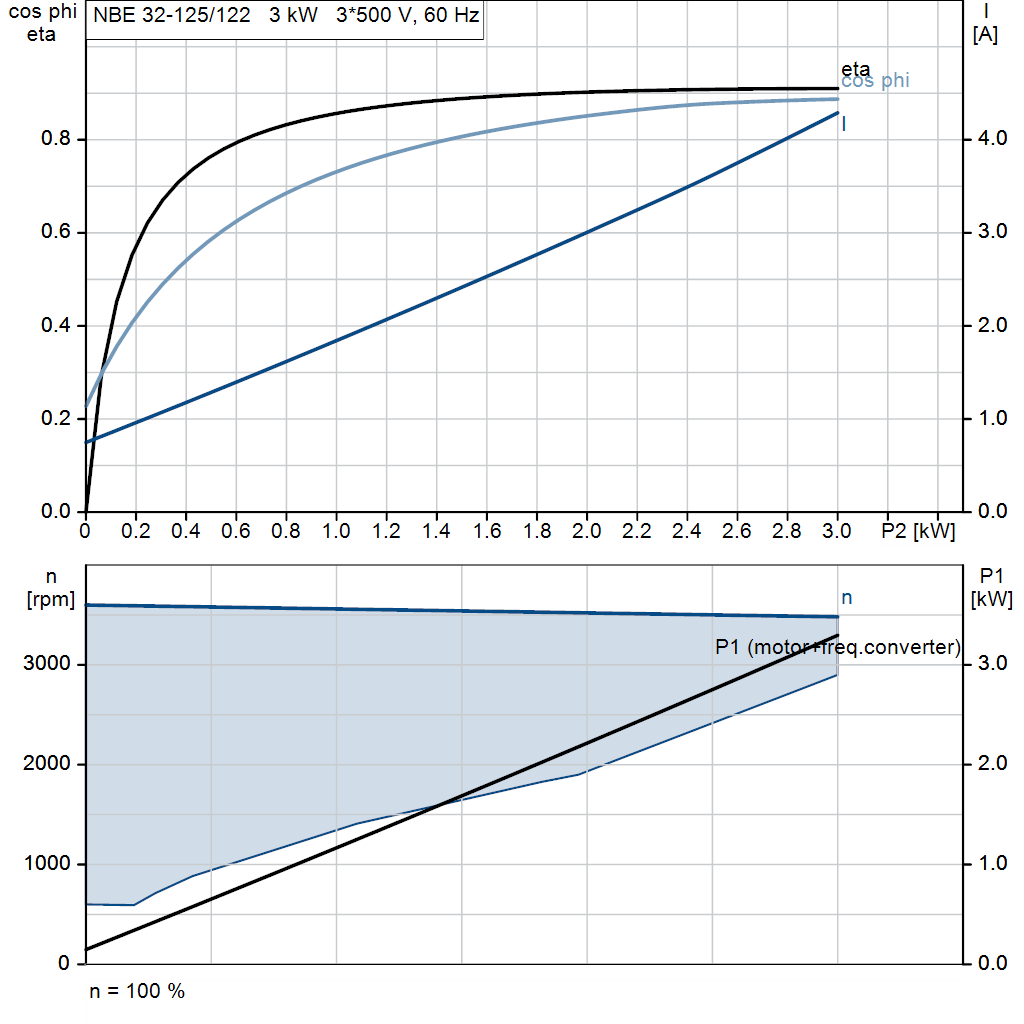

| Elektrische gegevens: | |
| Nominaal vermogen - P2: | 3 kW |
| Netfrequentie: | 60 Hz |
| Nominale spanning: | 3 x 380-500 V |
| Nominaalstroom: | 5.80-4.80 A |
| Cos phi - vermogensfactor: | 0.91-0.86 |
| Nominaal toerental: | 360-4000 omw/min |
| IE efficiëntieklasse: | IE5 |
| Motorrendement bij nominale belasting: | 90.7 % |
| Pooltal: | 2 |
| Dichtheidsklasse (IEC 34-5): | IP55 |
| Isolatie klasse (IEC 85): | F |
| Motor Nr.: | 93108477 |
| Lagerisolatie type N-uiteinde: | Steel Bearing |
| Overige: | |
| Minimale Efficiëntie Index, MEI ≥: | 0.64 |
| DOE pomp energie-index CL: | 0.91 |
| DOE pomp energie-index VL: | 0.47 |
| Netto gewicht: | 55 kg |
| Bruto gewicht: | 65 kg |
| Transportvolume: | 0.178 m³ |
| Taal op pompnaamplaat: | GB |
