Grundfos
Normale prijs
€7.073,18 EUR
Normale prijs
€8.841,47 EUR
Aanbiedingsprijs
€7.073,18 EUR
Eenheidsprijs
/
per
Belastingen inbegrepen.
Verzendkosten worden berekend bij de checkout.
Kan beschikbaarheid voor afhalen niet laden

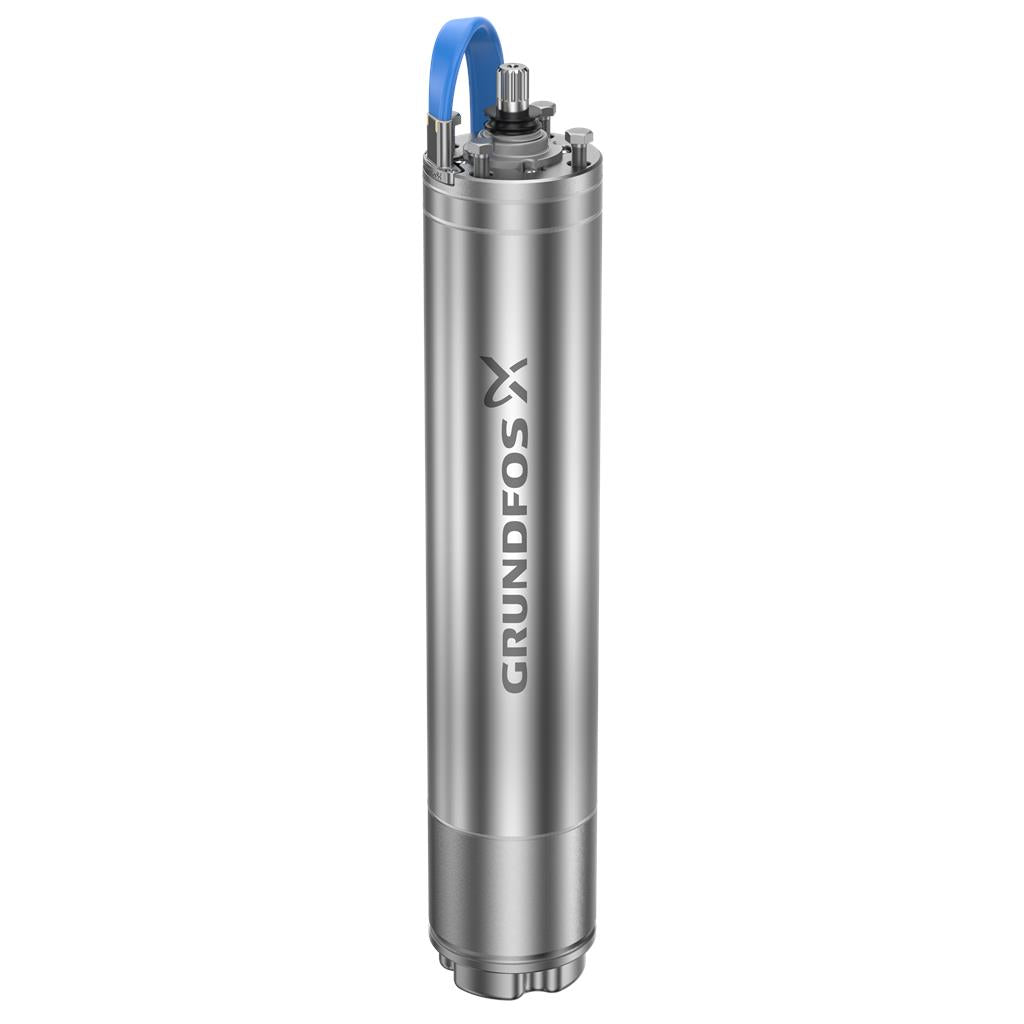

De motor is een 3-fase(n) onderwatermotor met bescherming tegen binnendringen van zand, vloeistofgesmeerde lagers en drukvereffeningsmembraan.
Specs Table
|
| Max liquid t at 0.15 m/sec: | 40 °C |
|
| Shaft seal for motor: | CER/CARNBR |
| CE approved (Yes/No): | Y |
| Motor version: | T40 |
|
| Motor: | Stainless steel |
| | DIN W.-Nr. 1.4301 |
| | AISI 304 |
|
| Maximum ambient pressure: | 60 bar |
| Motor diameter: | 6 inch |
|
| Motor type: | MS6000 |
| Rated power - P2: | 30 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-400-415 V |
| Voltage tolerance: | +6/-10 % |
| Rated current: | 66.5-64.0-63.0 A |
| Starting current: | 450-500-530 % |
| Cos phi - power factor: | 0.87-0.85-0.82 |
| Rated speed: | 2850-2870-2880 rpm |
| Rated full-load torque: | 100 Nm |
| Locked-rotor torque: | 140-160-170 % |
| Breakdown torque: | 230-260-290 % |
| Moment of inertia: | 0.0125 kg m² |
| Axial load max: | 27 kN |
| Start. method: | direct-on-line |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Built-in temp. transmitter: | yes |
| Winding resistance: | 0.383 Ohm |
| Windings: | Enamelled |
|
| Net weight: | 78 kg |
Alle details bekijken
