MS6000RESWT40 [98735511]
MS6000RESWT40 [98735511]
Grundfos
Normale prijs
€6.702,43 EUR
Normale prijs
€8.378,04 EUR
Aanbiedingsprijs
€6.702,43 EUR
Eenheidsprijs
/
per
Belastingen inbegrepen.
Verzendkosten worden berekend bij de checkout.
Prijs (ex BTW): €5.539,20
Kan beschikbaarheid voor afhalen niet laden

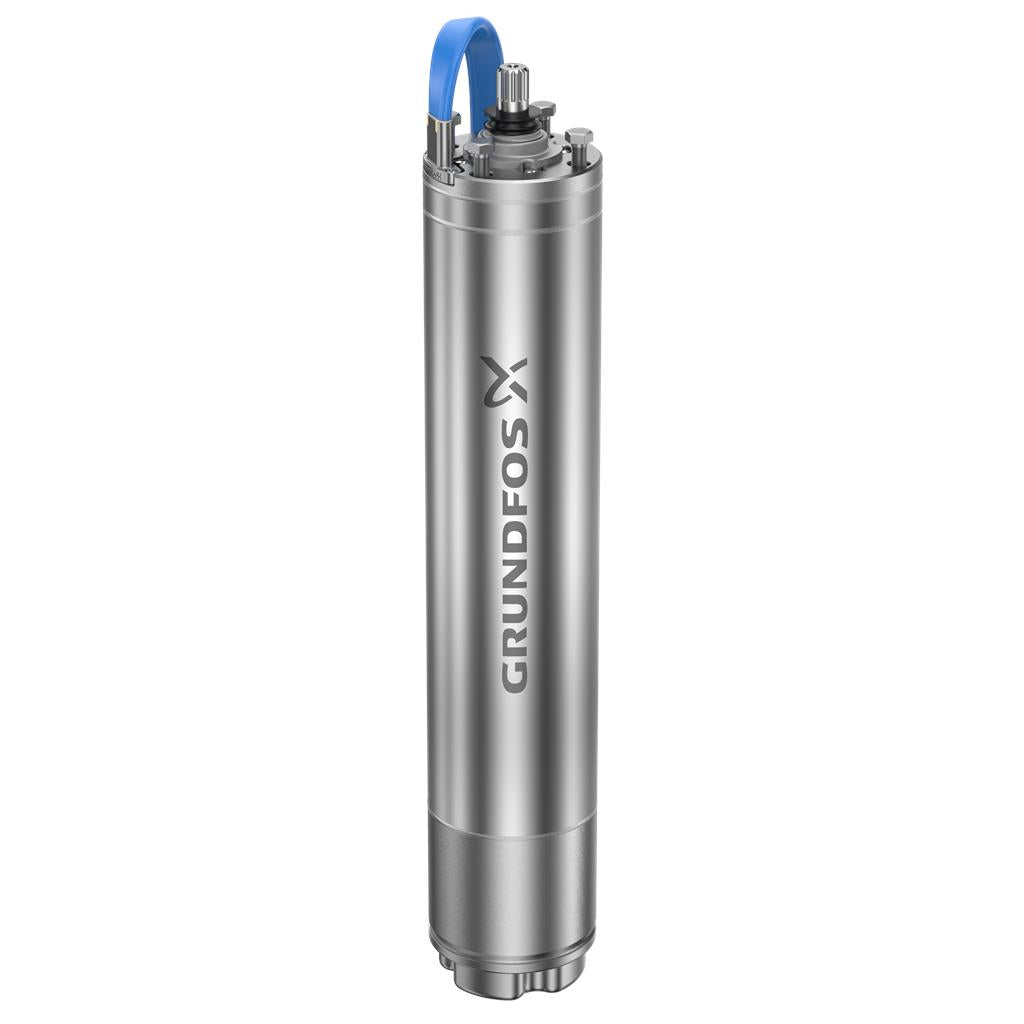

De motor is een 3-fase(n) onderwatermotor met bescherming tegen binnendringen van zand, vloeistofgesmeerde lagers en drukvereffeningsmembraan.
Specs Table
| Liquid: | |
| Max liquid t at 0.15 m/sec: | 40 °C |
| Technical: | |
| Shaft seal for motor: | SIC/SICFKM |
| CE approved (Yes/No): | Y |
| Motor version: | T40 |
| Materials: | |
| Motor: | Stainless steel |
| DIN W.-Nr. 1.4539 | |
| AISI 904L | |
| Installation: | |
| Maximum ambient pressure: | 60 bar |

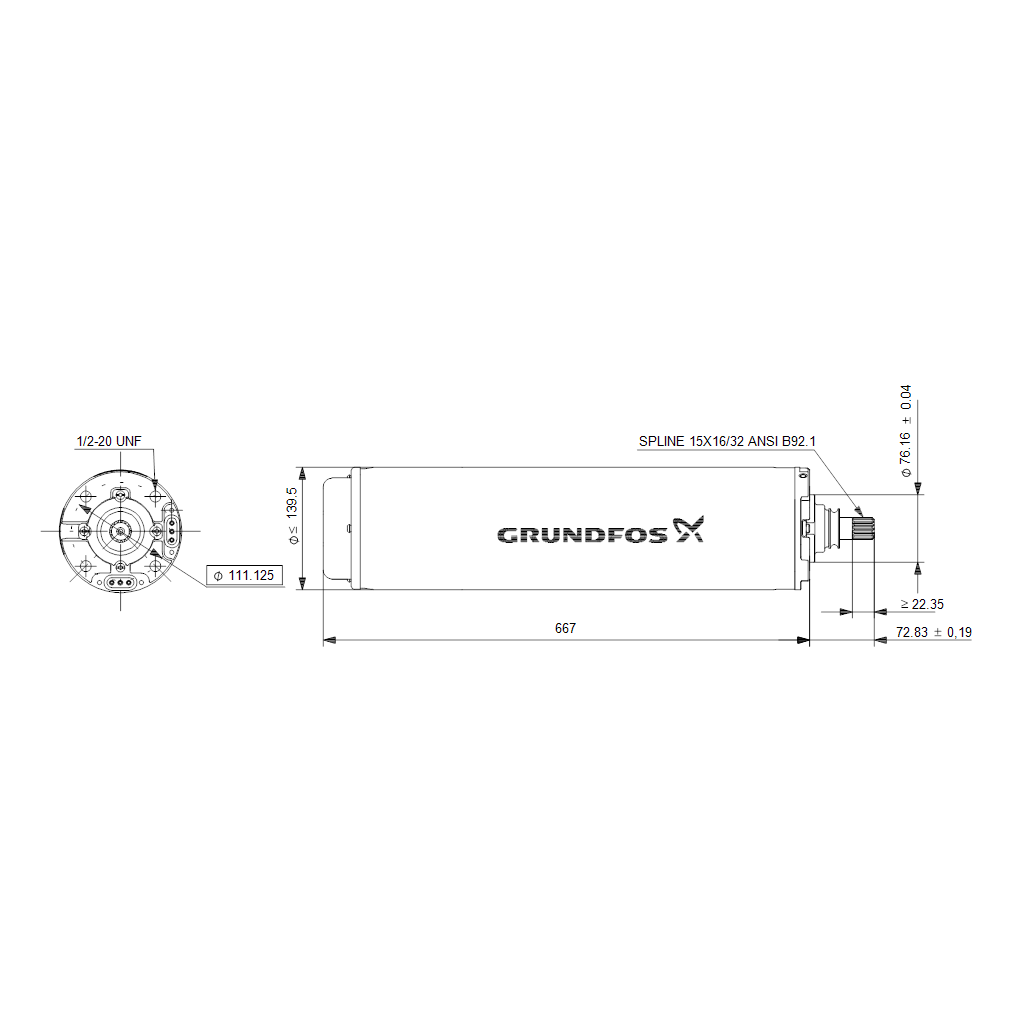

| Motor diameter: | 6 inch |
| Electrical data: | |
| Motor type: | MS6000 |
| Rated power - P2: | 13 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-400-415 V |
| Voltage tolerance: | +6/-10 % |
| Rated current: | 30.0-29.0-29.0 A |
| Starting current: | 490-540-560 % |
| Cos phi - power factor: | 0.85-0.82-0.79 |
| Rated speed: | 2850-2870-2880 rpm |
| Rated full-load torque: | 43.5 Nm |
| Locked-rotor torque: | 150-170-180 % |
| Breakdown torque: | 250-280-310 % |
| Moment of inertia: | 0.0064 kg m² |
| Axial load max: | 27 kN |

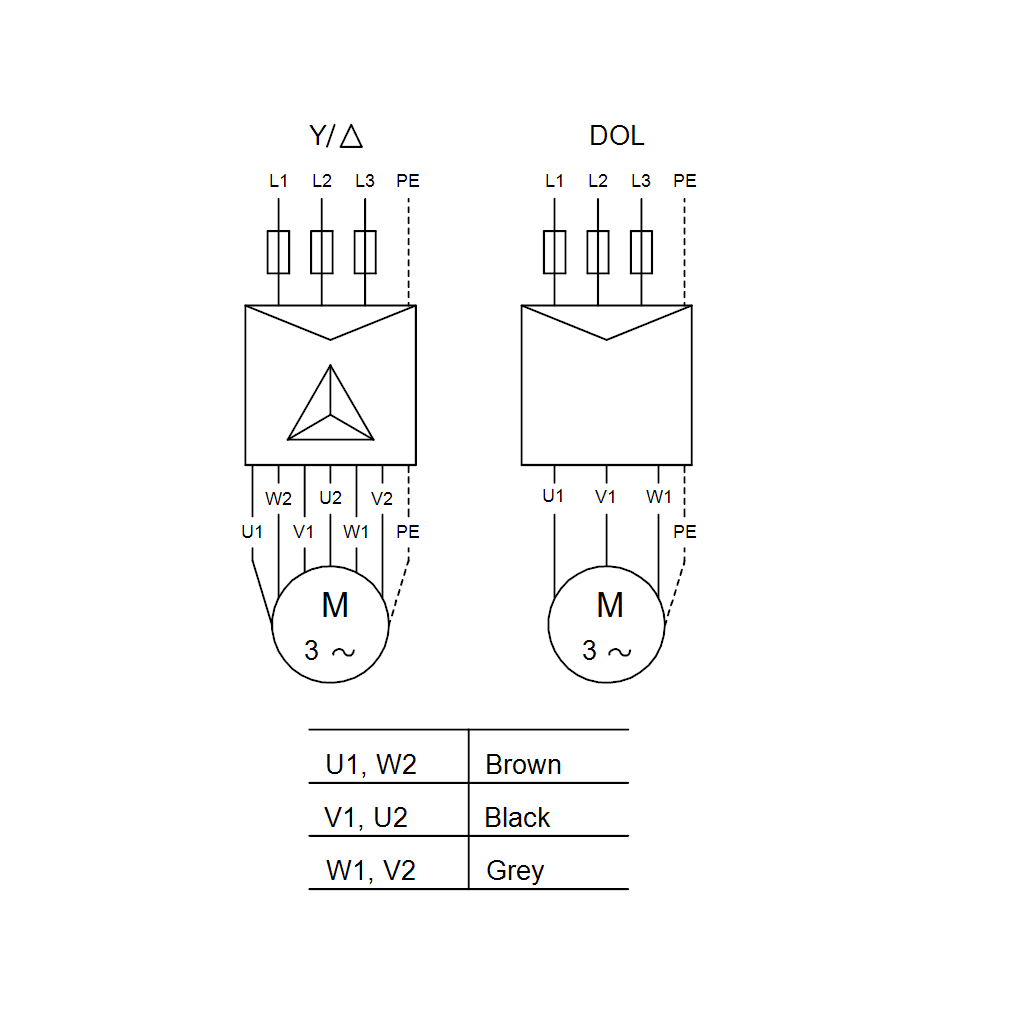

| Start. method: | direct-on-line |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Built-in temp. transmitter: | yes |
| Winding resistance: | 1.000 Ohm |
| Windings: | Enamelled |
| Others: | |
| Net weight: | 49 kg |
| Country of origin: | HU |
| Custom tariff no.: | 84139100 |
