MS4000 AZBCWLMJT4 [7C193511]
MS4000 AZBCWLMJT4 [7C193511]
Grundfos
Normale prijs
€1.942,78 EUR
Normale prijs
€2.428,47 EUR
Aanbiedingsprijs
€1.942,78 EUR
Eenheidsprijs
/
per
Belastingen inbegrepen.
Verzendkosten worden berekend bij de checkout.
Prijs (ex BTW): €1.605,60
Kan beschikbaarheid voor afhalen niet laden

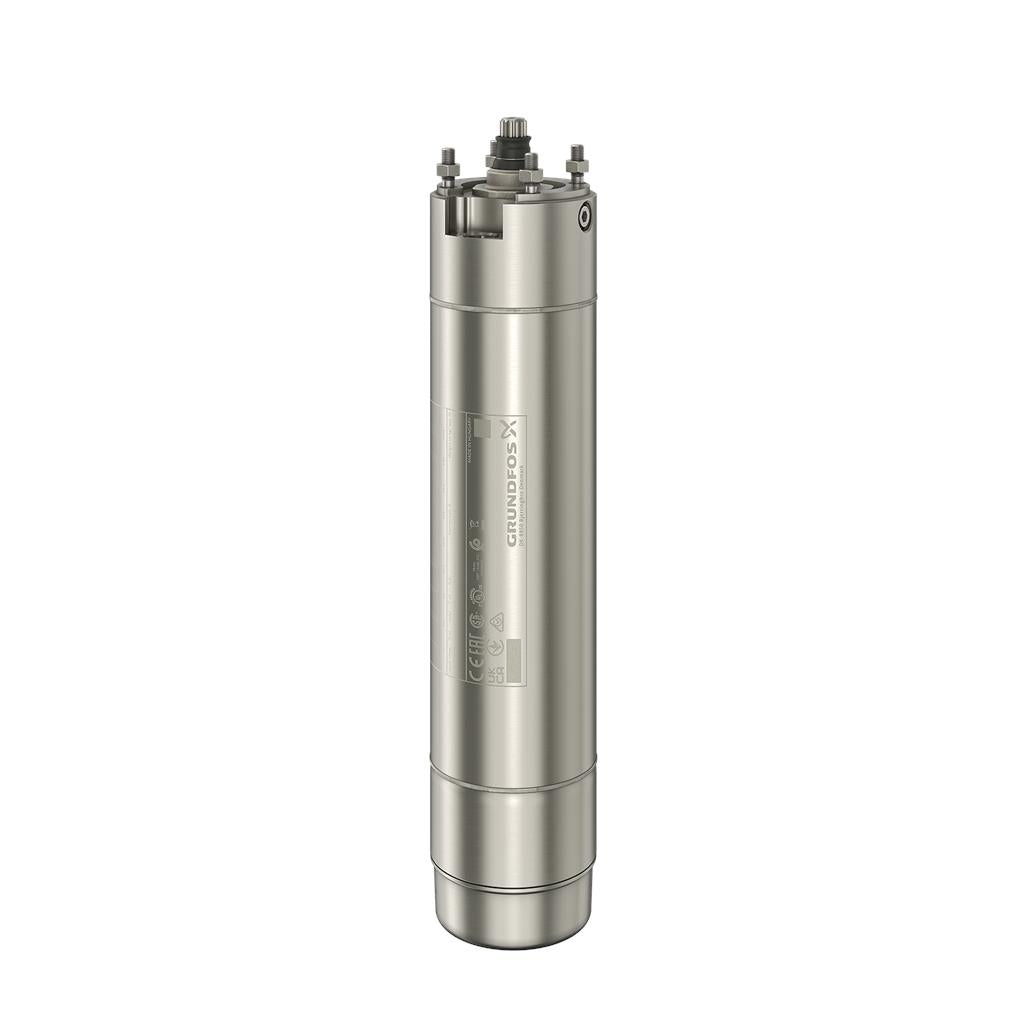

De motor is een 3-fase(n) onderwatermotor met bescherming tegen binnendringen van zand, vloeistofgesmeerde lagers en drukvereffeningsmembraan.
Specs Table
| Liquid: | |
| Liquid temperature range: | -15 .. 40 °C |
| Technical: | |
| Approvals for motor: | CE,EAC,C_UL_US_NSF372MOROCCO,UKCA,SEPRO |
| Model: | C |
| Motor version: | T40 |
| Specification for shaft end: | SPLINE 14X24/48-30 ANSI B92.1 |
| Materials: | |
| Motor: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Shaft seal: | HM/Ceramics |
| Installation: | |
| Maximum ambient pressure: | 60 bar |
| Thread standard: | ISO 724 |

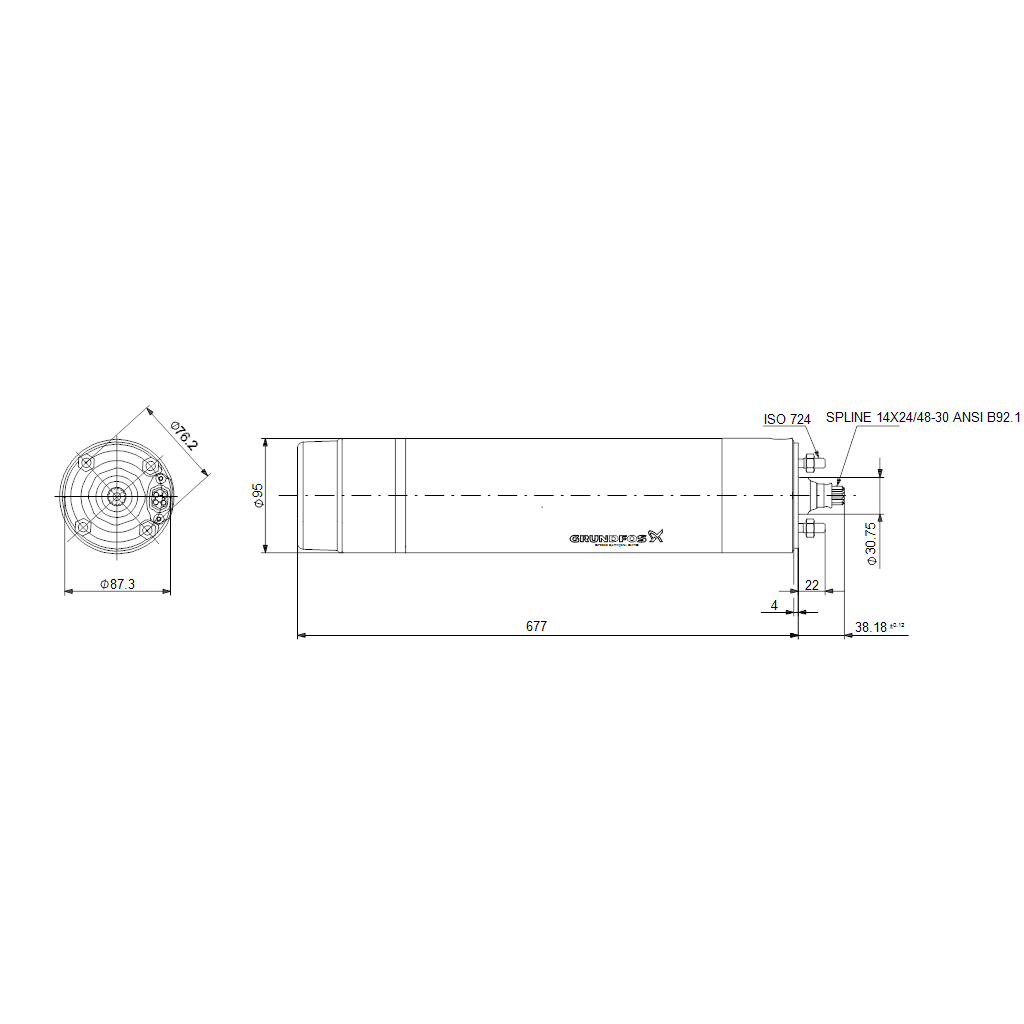

| Motor diameter: | 4 inch |
| Electrical data: | |
| Motor type: | MS4000 |
| Rated power - P2: | 5.5 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-400-415 V |
| Voltage tolerance: | +6/-10 % |
| Rated current: | 13-13-13.4 A |
| Starting current: | 470-500-510 % |
| Cos phi - power factor: | 0.85-0.81-0.76 |
| Rated speed: | 2840-2860-2880 rpm |
| Rated full-load torque: | 19-18-18 Nm |
| Breakdown torque: | 40.3-45.1-49 Nm |
| Moment of Inertia: | 0.0029 kg m² |
| Maximum axial load: | 450 kg |
| Method of start: | Direct-on-line (DOL) |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Built-in motor protection: | NONE |
| Thermal protection: | External |
| Built-in temp. transmitter: | Yes |
| Winding resistance: | 3.280 Ohm |
| Windings: | Enameled |
| Others: | |
| Net weight: | 26 kg |
| Gross weight: | 26 kg |
| Shipping volume: | 0.007 m³ |
| Country of origin: | HU |
| Custom tariff no.: | 85015220 |
| Environmental approvals for motor: | WEEE |
