MS4000 [92959954]
MS4000 [92959954]
Grundfos
Normale prijs
€2.110,24 EUR
Normale prijs
€2.637,80 EUR
Aanbiedingsprijs
€2.110,24 EUR
Eenheidsprijs
/
per
Belastingen inbegrepen.
Verzendkosten worden berekend bij de checkout.
Prijs (ex BTW): €1.744,00
Kan beschikbaarheid voor afhalen niet laden

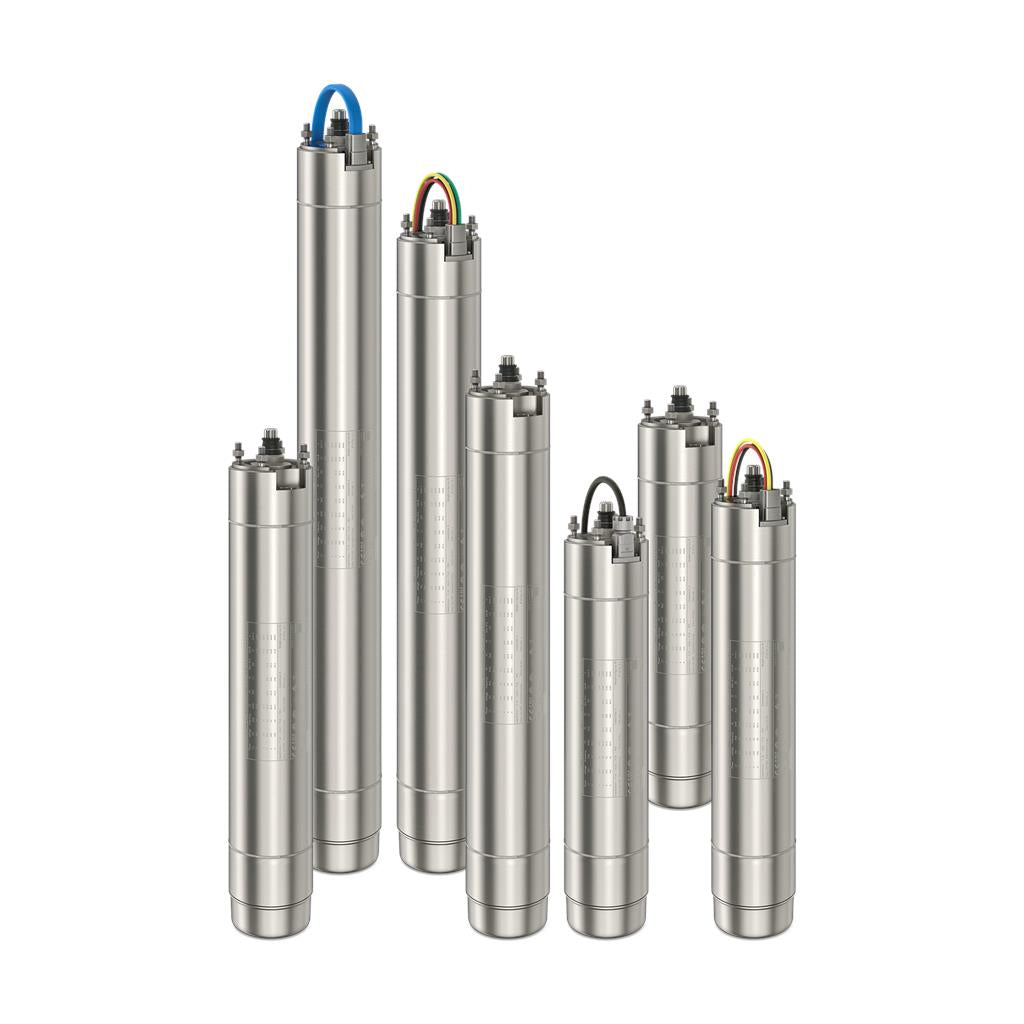

De motor is een 3-fase(n) onderwatermotor met bescherming tegen binnendringen van zand, vloeistofgesmeerde lagers en drukvereffeningsmembraan.
Specs Table
| Liquid: | |
| Liquid temperature range: | -15 .. 40 °C |
| Technical: | |
| Approvals for motor: | CCSAUS,C_UL_US_NSF372 |
| Model: | C |
| Motor version: | T40 |

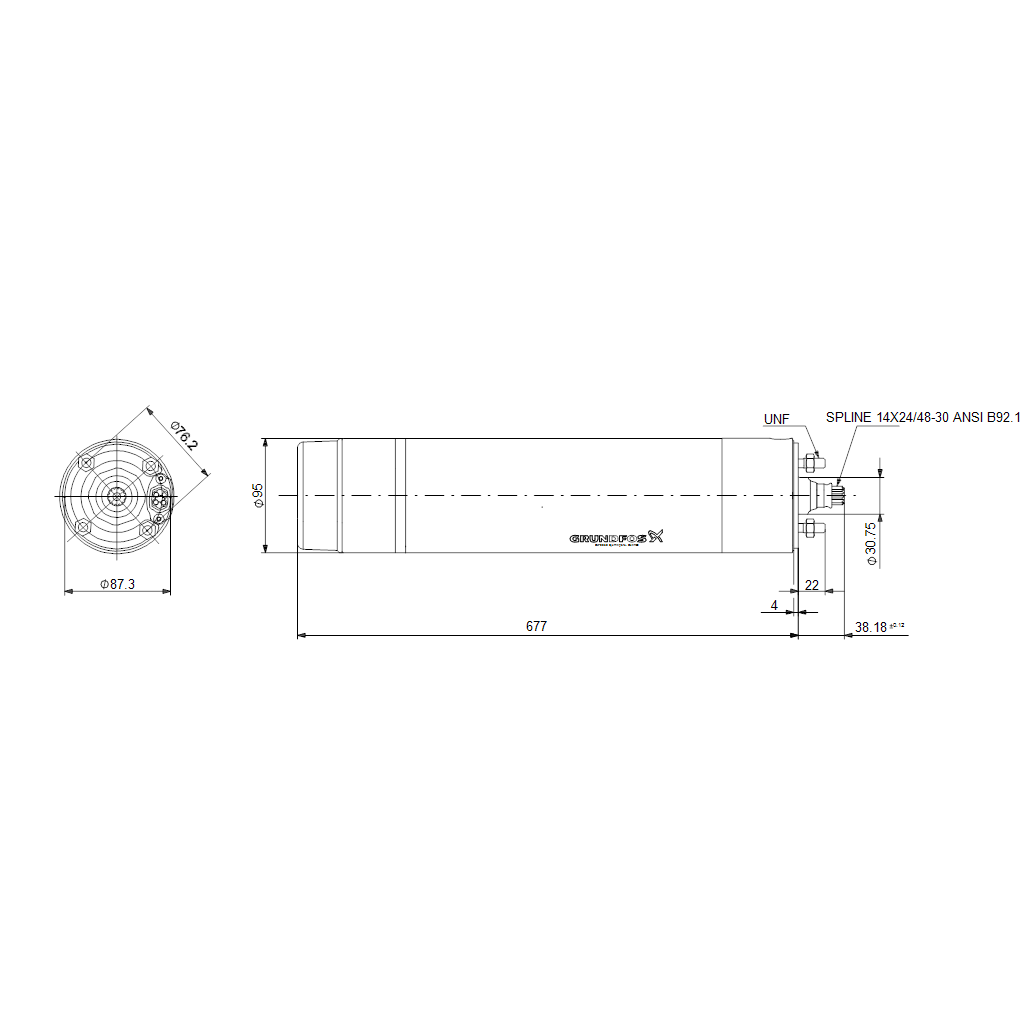

| Specification for shaft end: | SPLINE 14X24/48-30 ANSI B92.1 |
| Materials: | |
| Motor: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Shaft seal: | HM/Ceramics |
| Installation: | |
| Maximum ambient pressure: | 60 bar |
| Thread standard: | UNF |
| Motor diameter: | 4 inch |
| Electrical data: | |

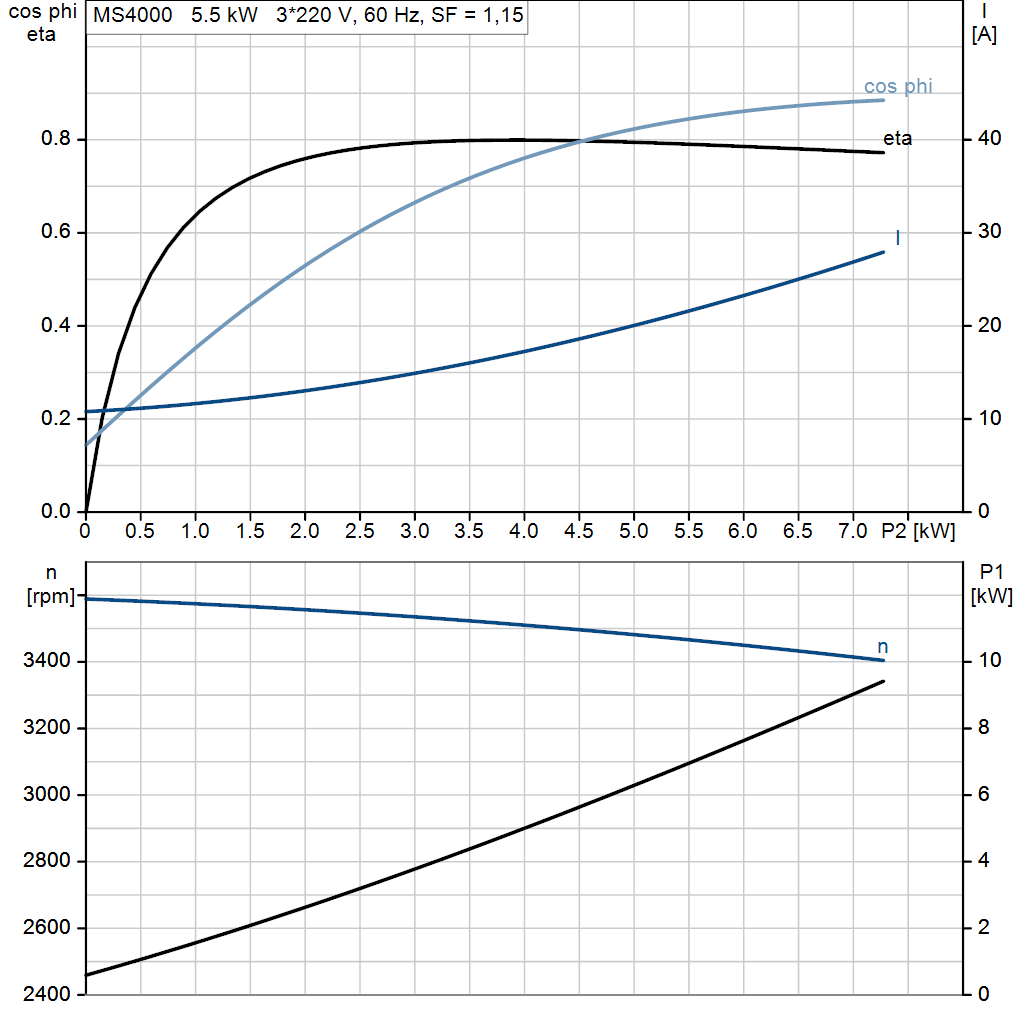

| Motor type: | MS4000 |
| Rated power - P2: | 5.5 kW |
| KVA code: | J |
| Mains frequency: | 60 Hz |
| Rated voltage: | 3 x 208-220-230 V |
| Voltage tolerance: | +6/-10 % |
| Service factor: | 1.15 |
| Rated current: | 24.5-23.4-23.8 A |
| Maximum current consumption - service factor: | 27.0-24.5-25.0 A |
| Starting current: | 490-550-570 % |
| Cos phi - power factor: | 0.87-0.84-0.79 |
| Rated speed: | 3440-3470-3480 rpm |
| Speed - service factor: | 3420-3440-3460 rpm |
| Rated full-load torque: | 15-15-15 Nm |
| Locked-rotor torque: | 160-190-210 % |
| Breakdown torque: | 35.0-39.6-44.1 Nm |
| Moment of Inertia: | 0.0029 kg m² |
| Maximum axial load: | 450 kg |

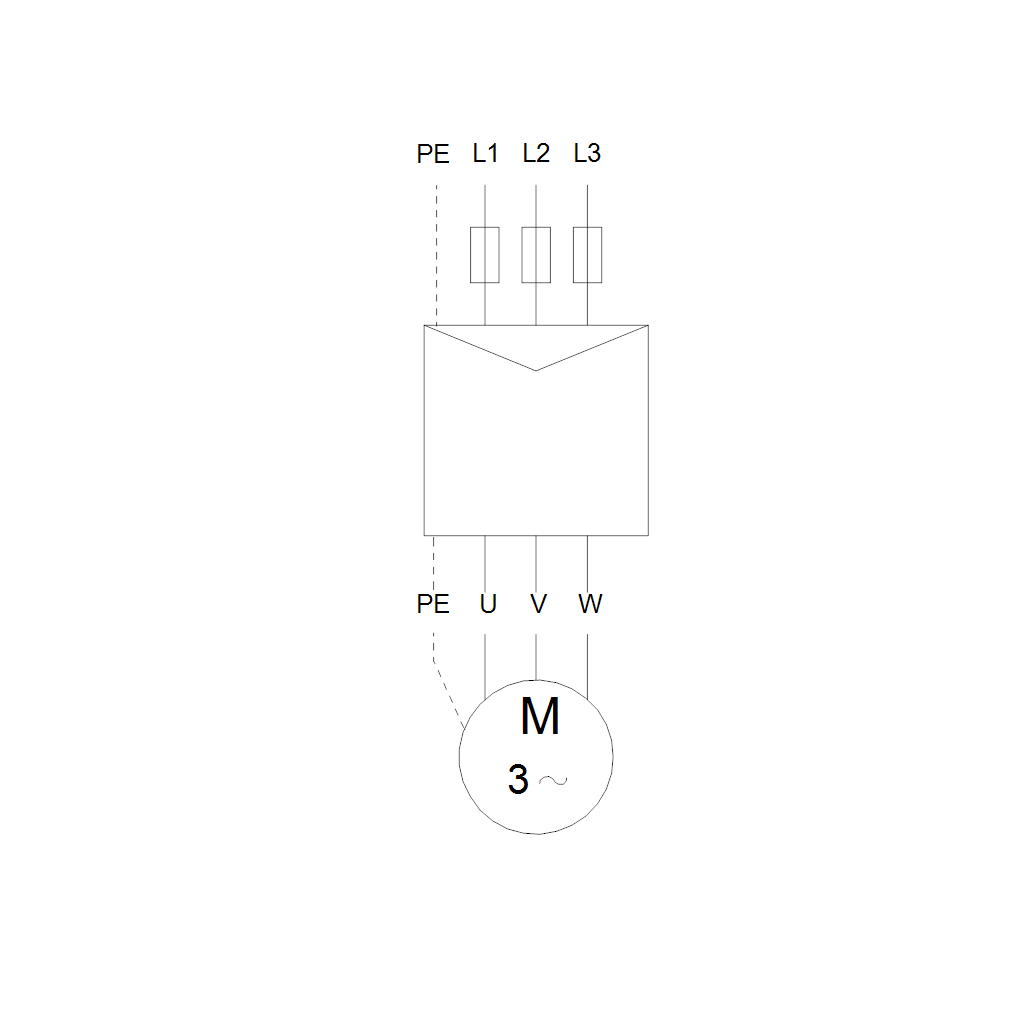

| Method of start: | Direct-on-line (DOL) |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Built-in motor protection: | NONE |
| Thermal protection: | External |
| Built-in temp. transmitter: | Yes |
| Winding resistance: | 0.830 Ohm |
| Windings: | Enameled |
| Others: | |
| Net weight: | 27.4 kg |
| Gross weight: | 28.5 kg |
| Shipping volume: | 1.74 m³ |
