MS4000 [92959951]
MS4000 [92959951]
Grundfos
Normale prijs
€1.704,65 EUR
Normale prijs
€2.130,81 EUR
Aanbiedingsprijs
€1.704,65 EUR
Eenheidsprijs
/
per
Belastingen inbegrepen.
Verzendkosten worden berekend bij de checkout.
Prijs (ex BTW): €1.408,80
Kan beschikbaarheid voor afhalen niet laden

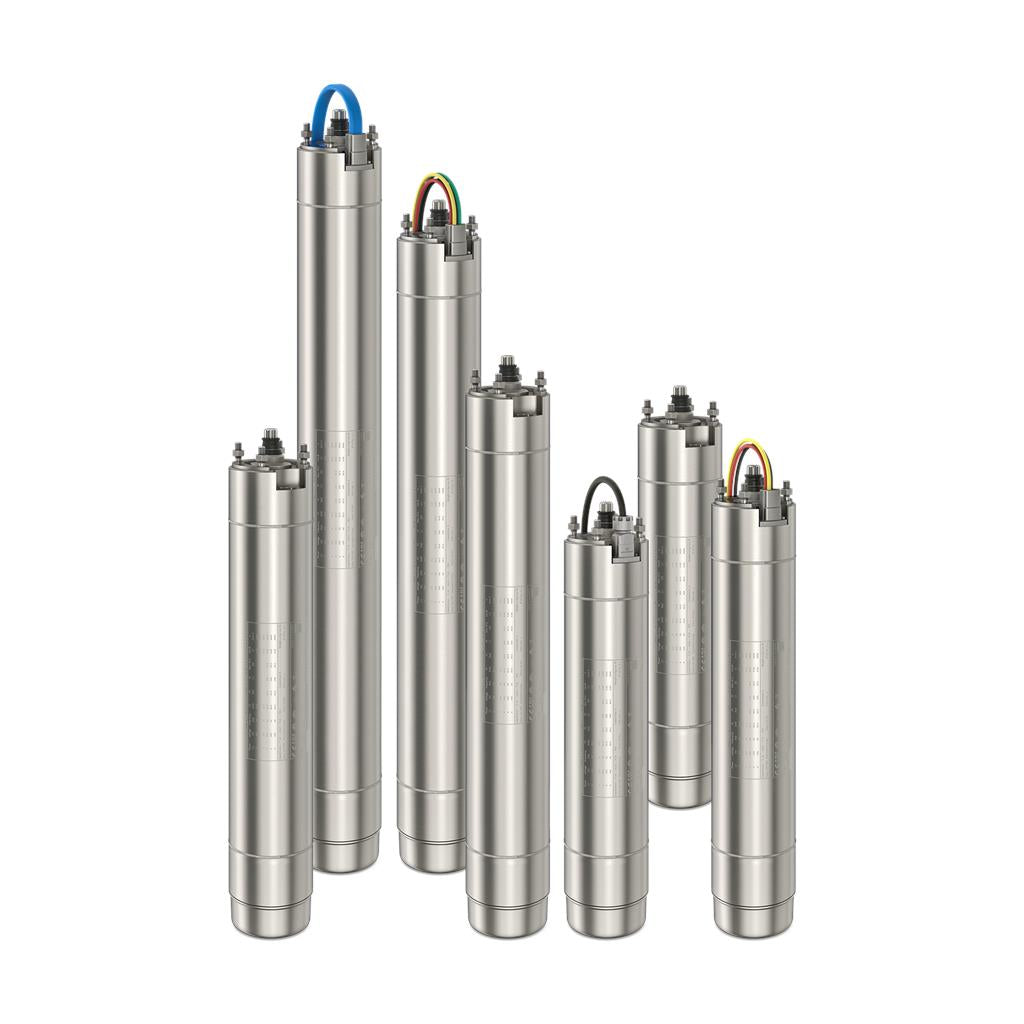

De motor is een 3-fase(n) onderwatermotor met bescherming tegen binnendringen van zand, vloeistofgesmeerde lagers en drukvereffeningsmembraan.
Specs Table
| Liquid: | |
| Liquid temperature range: | -15 .. 40 °C |
| Technical: | |
| Approvals for motor: | CCSAUS,C_UL_US_NSF372 |
| Model: | C |
| Motor version: | T40 |

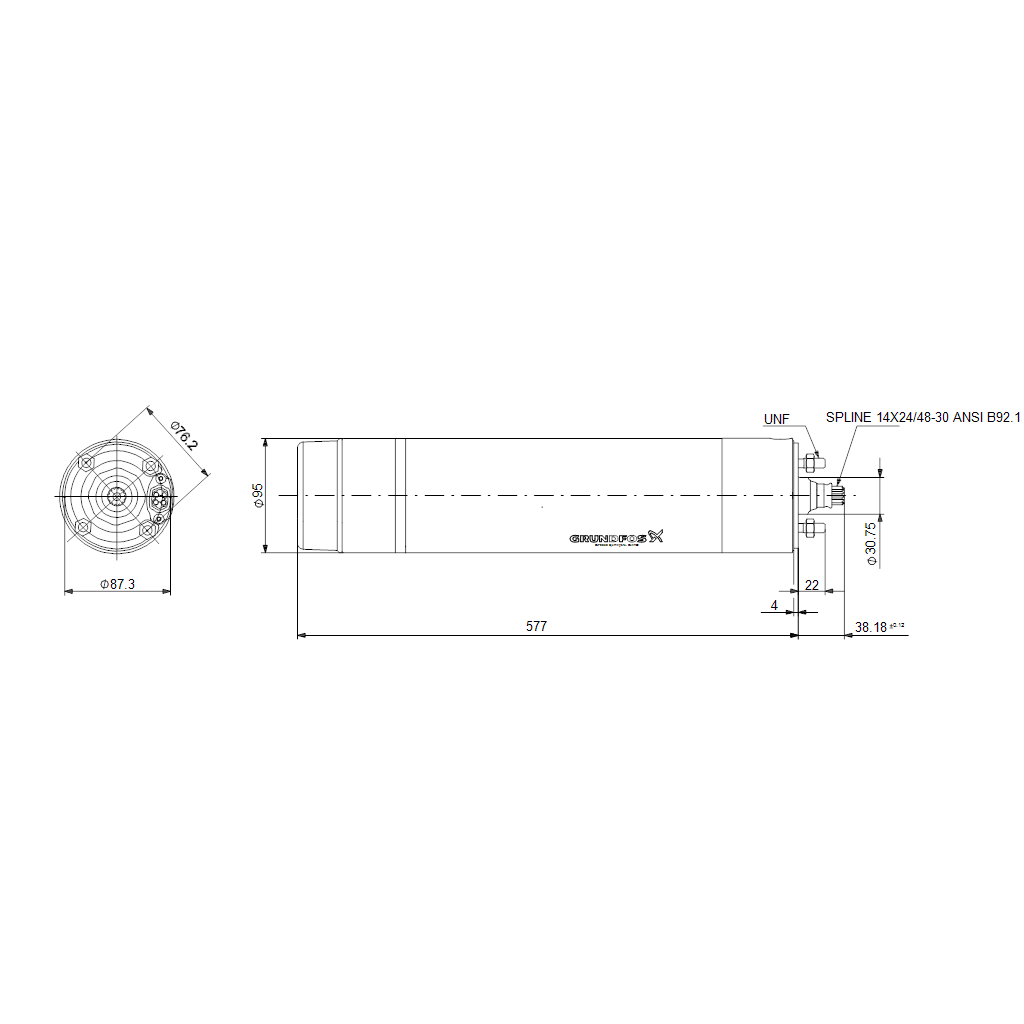

| Specification for shaft end: | SPLINE 14X24/48-30 ANSI B92.1 |
| Materials: | |
| Motor: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Shaft seal: | HM/Ceramics |
| Installation: | |
| Maximum ambient pressure: | 60 bar |
| Thread standard: | UNF |
| Motor diameter: | 4 inch |
| Electrical data: | |
| Motor type: | MS4000 |

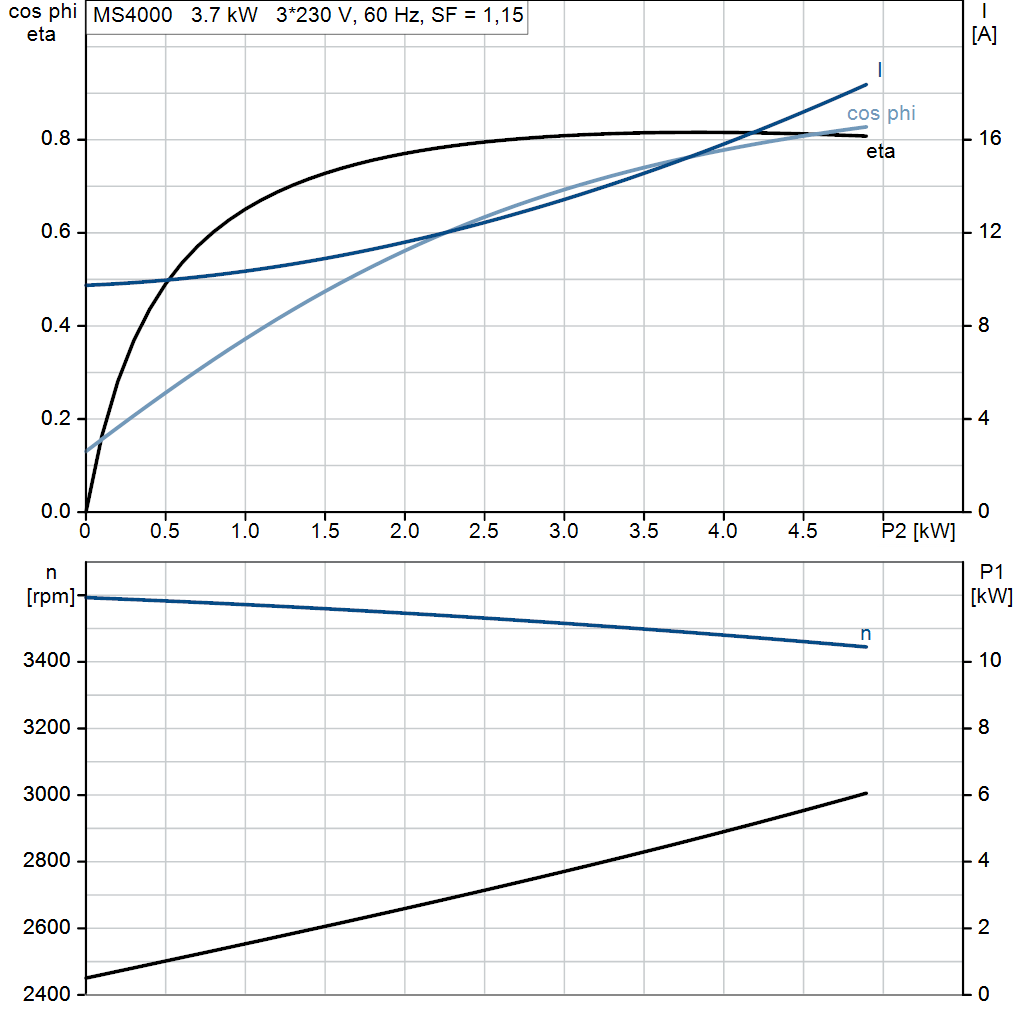

| Rated power - P2: | 3.7 kW |
| KVA code: | K |
| Mains frequency: | 60 Hz |
| Rated voltage: | 3 x 208-220-230 V |
| Voltage tolerance: | +6/-10 % |
| Service factor: | 1.15 |
| Rated current: | 17.0-16.4-16.1 A |
| Maximum current consumption - service factor: | 18.6-17.8-17.4 A |
| Starting current: | 490-540-590 % |
| Cos phi - power factor: | 0.86-0.84-0.76 |
| Rated speed: | 3450-3470-3480 rpm |
| Speed - service factor: | 3420-3440-3460 rpm |
| Rated full-load torque: | 10-10-10 Nm |
| Locked-rotor torque: | 160-190-210 % |
| Breakdown torque: | 24.9-28.1-31.4 Nm |
| Moment of Inertia: | 0.0022 kg m² |
| Maximum axial load: | 450 kg |

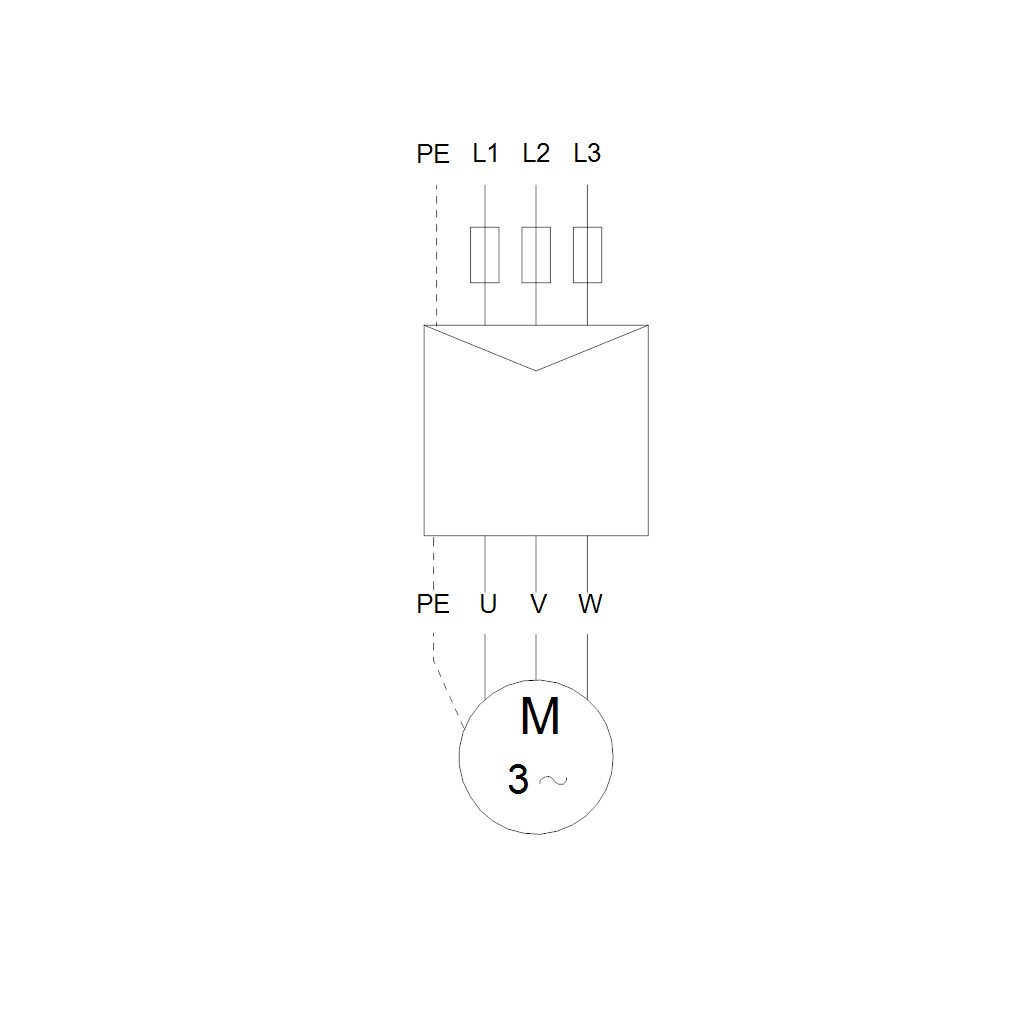

| Method of start: | Direct-on-line (DOL) |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Built-in motor protection: | NONE |
| Thermal protection: | External |
| Built-in temp. transmitter: | No |
| Winding resistance: | 1.120 Ohm |
| Windings: | Enameled |
| Others: | |
| Net weight: | 21 kg |
| Gross weight: | 21 kg |
| Shipping volume: | 0.2 m³ |
