CRN 32-2-2 A-G-A-E-HQQE [96419592]
CRN 32-2-2 A-G-A-E-HQQE [96419592]
Grundfos
Normale prijs
€6.227,80 EUR
Normale prijs
€9.295,22 EUR
Aanbiedingsprijs
€6.227,80 EUR
Eenheidsprijs
/
per
Belastingen inbegrepen.
Verzendkosten worden berekend bij de checkout.
Prijs (ex BTW): €5.146,94
Kan beschikbaarheid voor afhalen niet laden

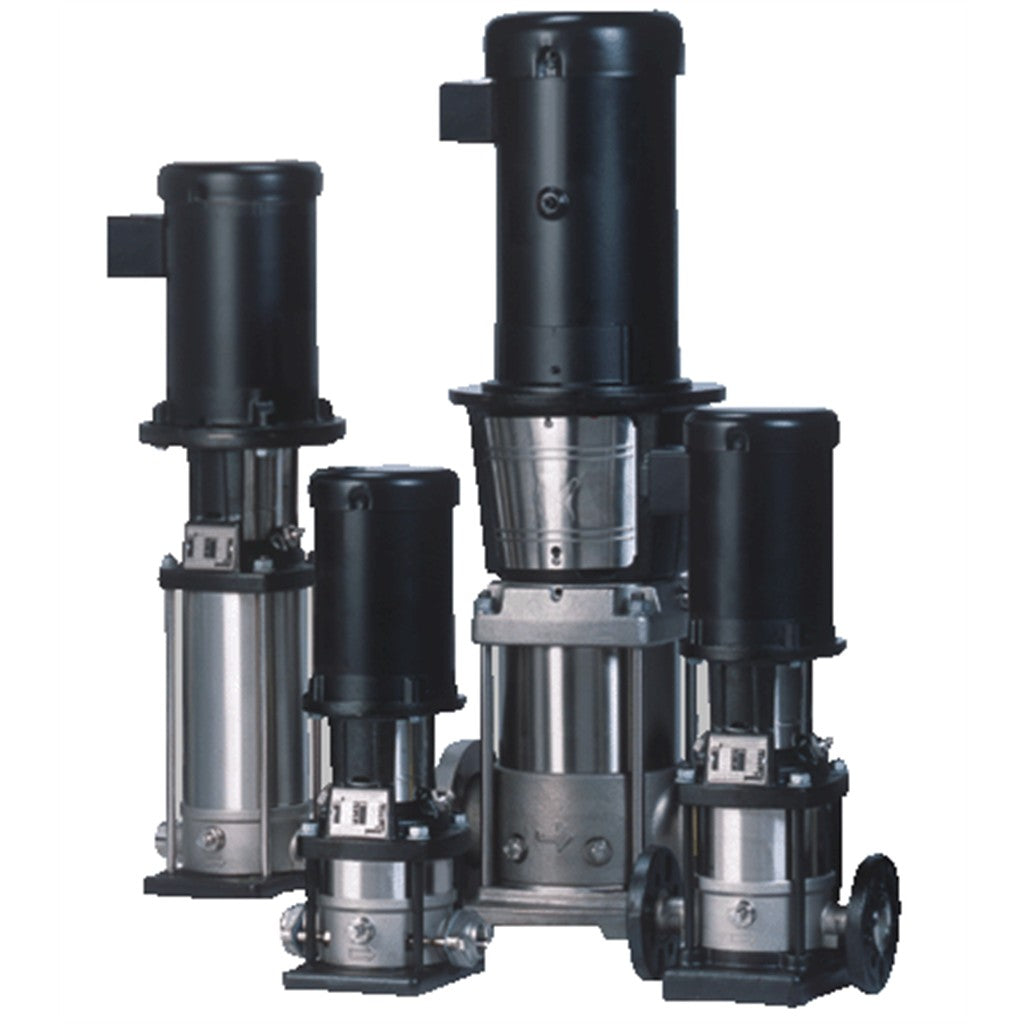

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.
Specs Table
| Vloeistof: | |
| Te verpompen medium: | Water |
| Bereik vloeistoftemperatuur: | -40 .. 120 °C |
| Medium temperatuur tijdens bedrijf: | 20 °C |
| Dichtheid: | 998.2 kg/m³ |
| Technisch: | |
| Toerental waarop de pompgegevens zijn gebaseerd: | 3467 omw/min |
| Nominaal debiet: | 36 m³/u |
| Nominale opvoerhoogte: | 33.5 m |
| Werkelijke waaierdiameter: | 118.4 mm |
| Plaatsing: | Verticaal |
| Asafdichting arrangement: | Enkel |
| Primaire asafdichting: | HQQE |
| Code voor asafdichting: | HQQE |
| Goedkeuringen: | CE,CURUS |
| Drinkwater keurmerk: | NSF/ANSI 61 |
| Curve tolerantie: | ISO9906:2012 3B |
| Materialen: | |
| Pomphuis: | Roestvast staal |
| EN 1.4408 | |
| AISI 316 | |
| Waaier: | Roestvast staal |
| EN 1.4401 | |
| AISI 316 | |
| Lager: | SIC |
| Steunlager: | Graflon |
| Installatie: | |
| Maximum omgevingstemperatuur: | 60 °C |
| Maximale bedrijfsdruk: | 16 bar |
| Max. druk bij toegestane temp: | 16 bar / 120 °C |
| 16 bar / -40 °C | |
| Type aansluiting: | ANSI |
| Maat van de zuigaansluiting: | 2 1/2 inch |
| Maat van de persaansluiting: | 2 1/2 inch |
| Druktrap voor leidingaansluiting: | PN 16 |
| Druktrap van de zuigaansluiting: | 150 lb |
| Flensmaat van de motor: | 213TC |
| Elektrische gegevens: | |
| Motor standaard: | NEMA |
| Motortype: | 132DA |
| Nominaal vermogen - P2: | 5.5 kW |
| Vermogen (P2) benodigd voor pomp: | 5.5 kW |
| Netfrequentie: | 60 Hz |

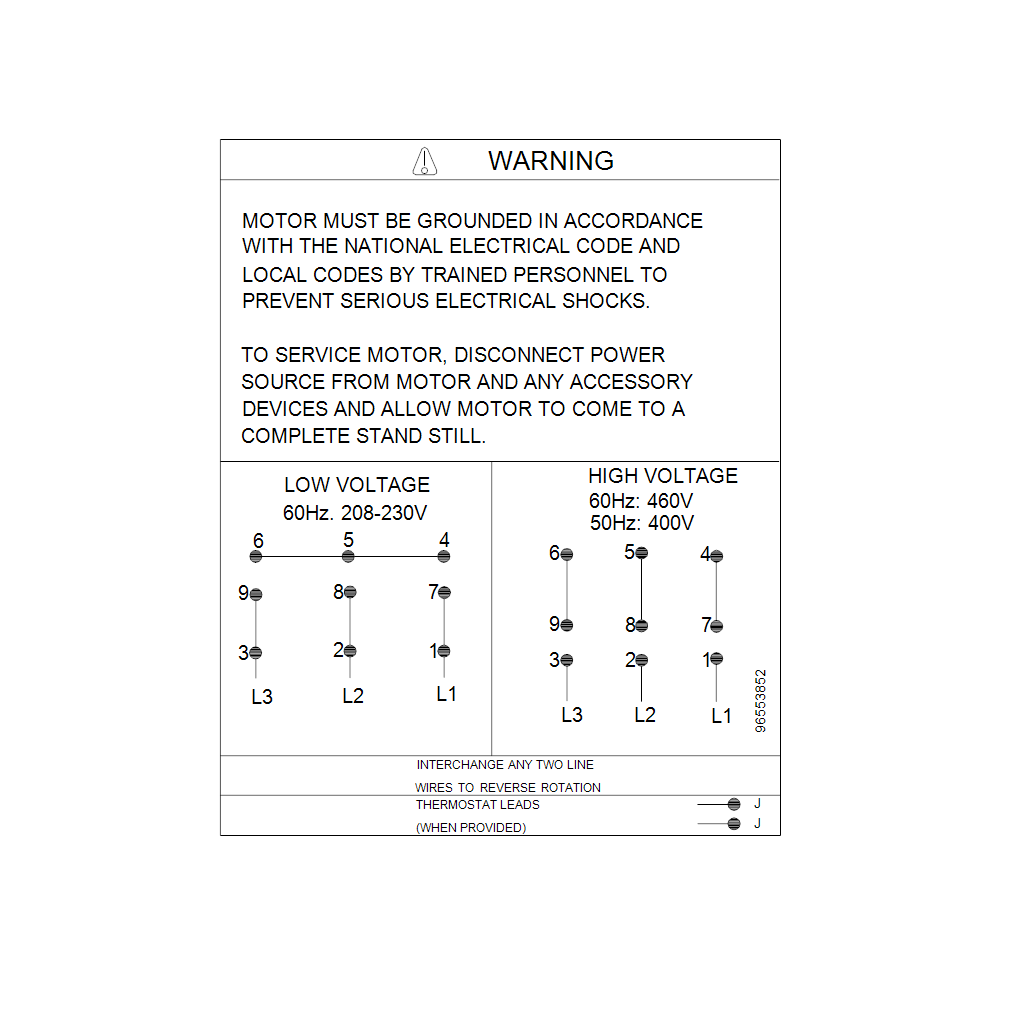

| Nominale spanning: | 3 x 208-230YY/460Y V |
| Service factor: | 1.15 |
| Nominaalstroom: | 19,5-18,1/9,09 A |
| Startstroom: | 1020-1480 % |
| Cos phi - vermogensfactor: | 0.89-0.86 |
| Nominaal toerental: | 3490-3520 omw/min |
| IE efficiëntieklasse: | NEMA Premium / IE3 60Hz |
| Motorrendement bij nominale belasting: | 89.5 % |
| Motor efficientie bij 3/4 vermogen: | 89.6-89.1 % |
| Motor efficientie bij half vermogen: | 88.1-86.7 % |
| Pooltal: | 2 |
| Dichtheidsklasse (IEC 34-5): | 55 Dust/Jetting |
| Isolatie klasse (IEC 85): | F |
| Motor Nr.: | 85904392 |
| Regeling: | |
| Frequency converter: | NONE |
| Overige: | |
| DOE pomp energie-index CL: | 0.87 |
| Netto gewicht: | 96.5 kg |
| Bruto gewicht: | 105 kg |
| Transportvolume: | 0.309 m³ |
