CRN 1S-6 A-FGJ-A-V-HQQV [96081860]
CRN 1S-6 A-FGJ-A-V-HQQV [96081860]
Grundfos
Normale prijs
€1.370,89 EUR
Normale prijs
€2.046,11 EUR
Aanbiedingsprijs
€1.370,89 EUR
Eenheidsprijs
/
per
Belastingen inbegrepen.
Verzendkosten worden berekend bij de checkout.
Prijs (ex BTW): €1.132,97
Kan beschikbaarheid voor afhalen niet laden

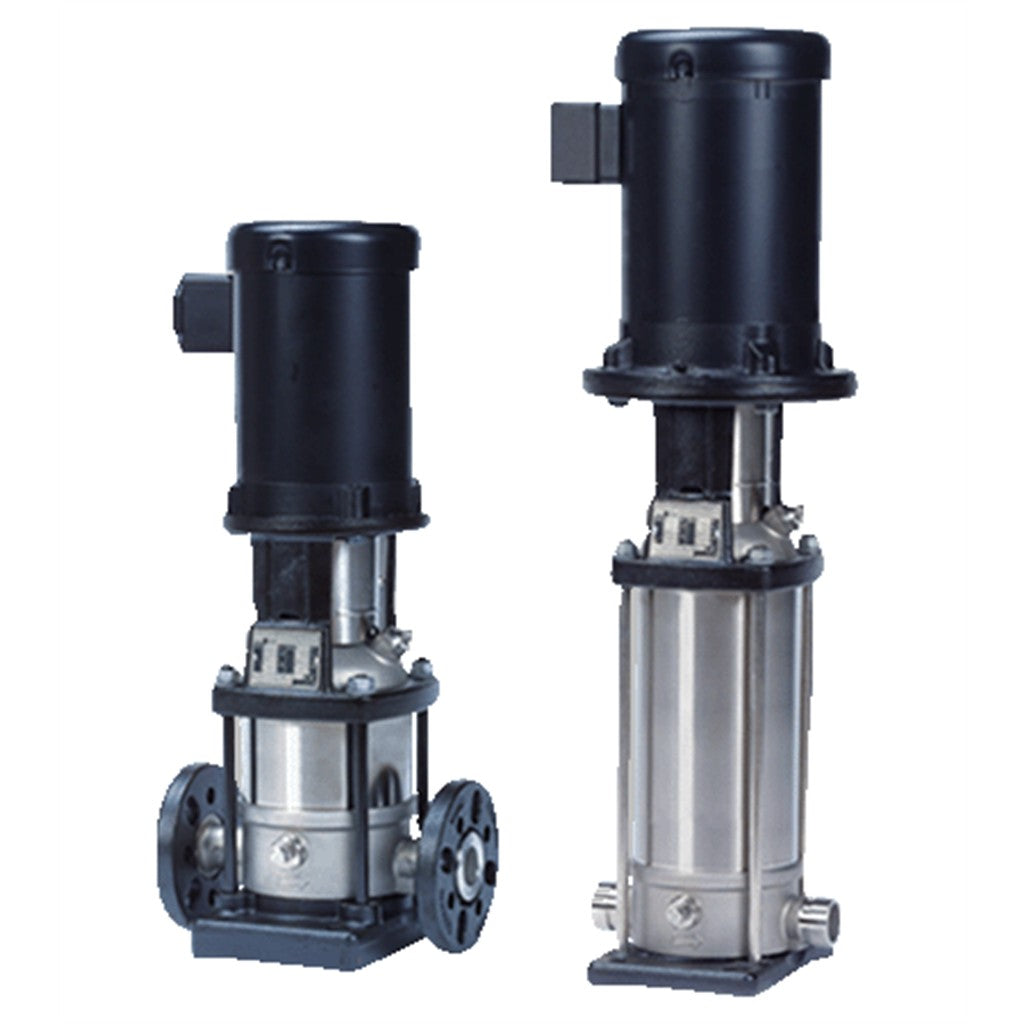

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges.
Specs Table
| Vloeistof: | |
| Te verpompen medium: | Water |
| Bereik vloeistoftemperatuur: | -20 .. 90 °C |
| Medium temperatuur tijdens bedrijf: | 20 °C |
| Dichtheid: | 998.2 kg/m³ |
| Technisch: | |

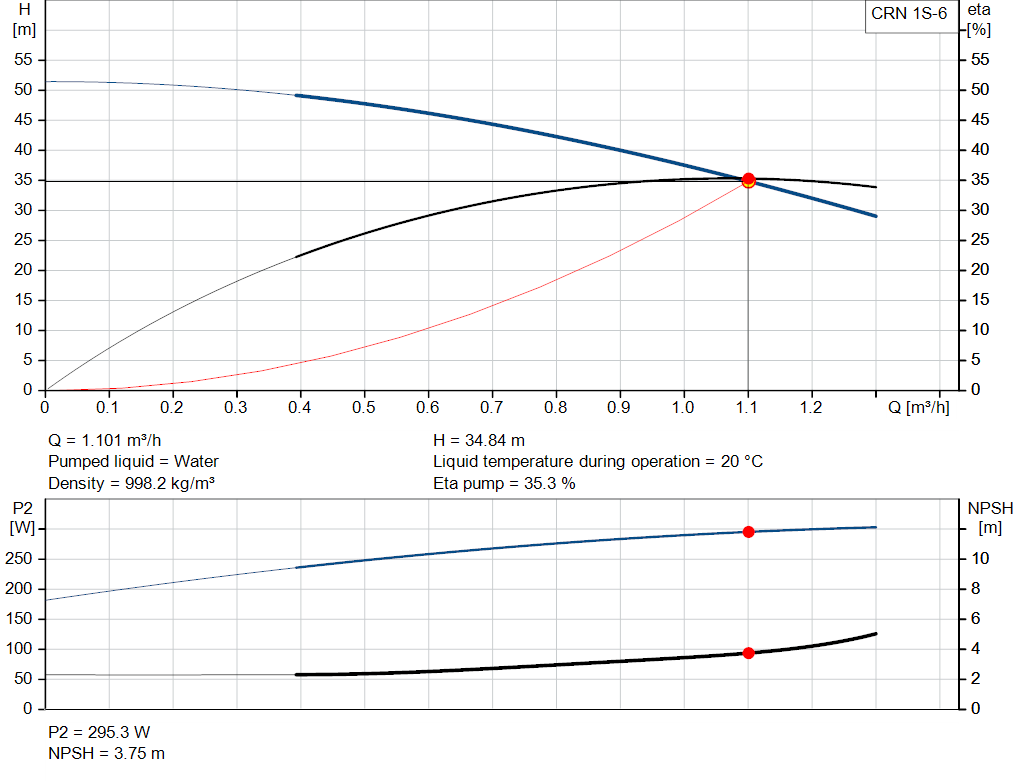

| Toerental waarop de pompgegevens zijn gebaseerd: | 3485 omw/min |
| Nominaal debiet: | 1.1 m³/u |
| Nominale opvoerhoogte: | 34.8 m |
| Plaatsing: | Verticaal |
| Asafdichting arrangement: | Enkel |
| Primaire asafdichting: | HQQV |
| Code voor asafdichting: | HQQV |
| Goedkeuringen: | CE |
| Curve tolerantie: | ISO9906:2012 3B |
| Materialen: | |
| Pomphuis: | Roestvast staal |
| EN 1.4408 | |
| AISI 316 | |
| Waaier: | Roestvast staal |
| EN 1.4401 | |
| AISI 316 | |
| Lager: | SIC |
| Installatie: | |
| Maximale bedrijfsdruk: | 25 bar |
| Max. druk bij toegestane temp: | 25 bar / 90 °C |
| 25 bar / -20 °C | |
| Type aansluiting: | DIN / ANSI / JIS |
| Maat van de zuigaansluiting: | DN 25/32 |
| 1 1/4 inch | |
| Maat van de persaansluiting: | DN 25/32 |
| 1 1/4 inch | |
| Druktrap voor leidingaansluiting: | PN 25 |
| Druktrap van de zuigaansluiting: | 300 lb |
| Flensmaat van de motor: | 56C |
| Elektrische gegevens: | |
| Motor standaard: | NEMA |
| Vermogen (P2) benodigd voor pomp: | 0.37 kW |
| Regeling: | |
| Frequency converter: | NONE |
| Overige: | |
| Netto gewicht: | 16.9 kg |
| Bruto gewicht: | 21.9 kg |
| Transportvolume: | 0.14 m³ |
