CRN 10-4 A-FGJ-A-E-HQQE [96523120]
CRN 10-4 A-FGJ-A-E-HQQE [96523120]
Grundfos
Normale prijs
€3.263,07 EUR
Normale prijs
€4.870,25 EUR
Aanbiedingsprijs
€3.263,07 EUR
Eenheidsprijs
/
per
Belastingen inbegrepen.
Verzendkosten worden berekend bij de checkout.
Prijs (ex BTW): €2.696,75
Kan beschikbaarheid voor afhalen niet laden

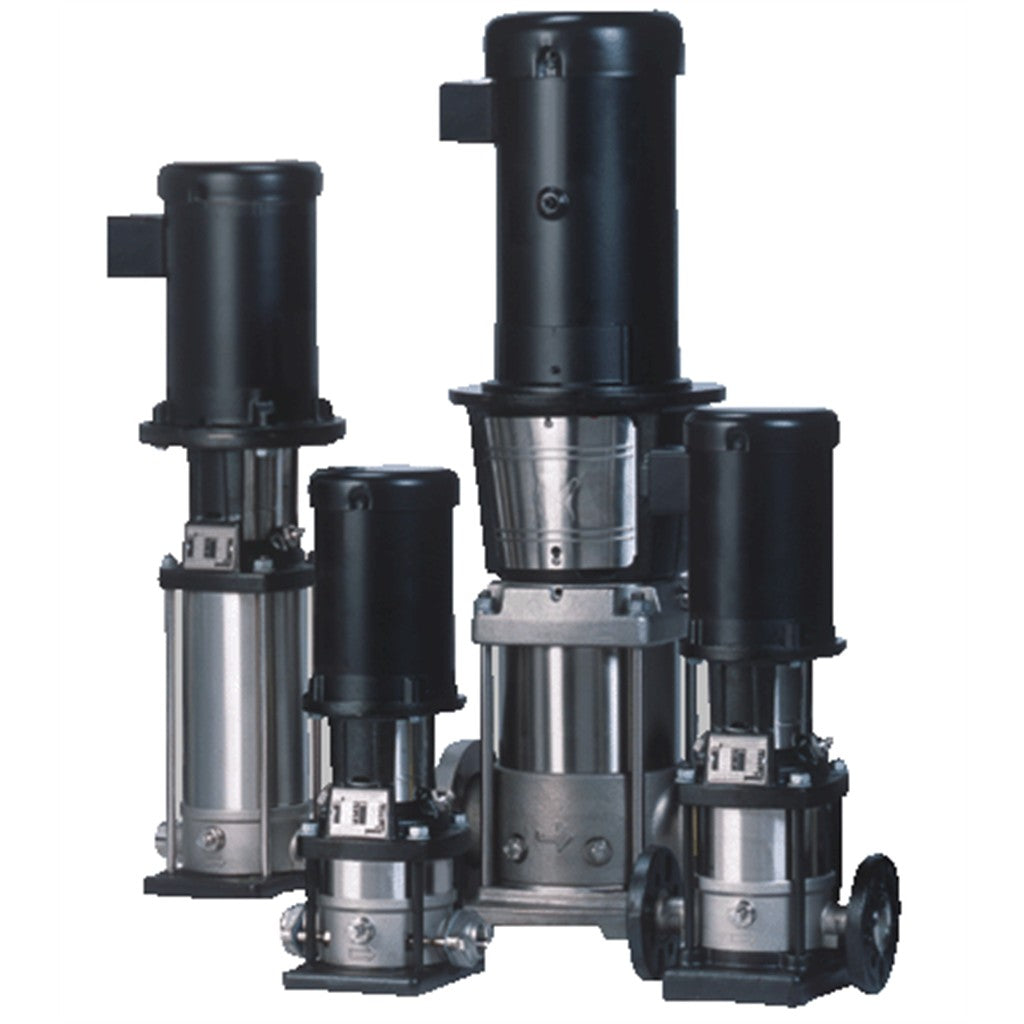

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.
Specs Table
| Vloeistof: | |
| Te verpompen medium: | Water |
| Bereik vloeistoftemperatuur: | -20 .. 120 °C |
| Medium temperatuur tijdens bedrijf: | 20 °C |
| Dichtheid: | 998.2 kg/m³ |
| Technisch: | |

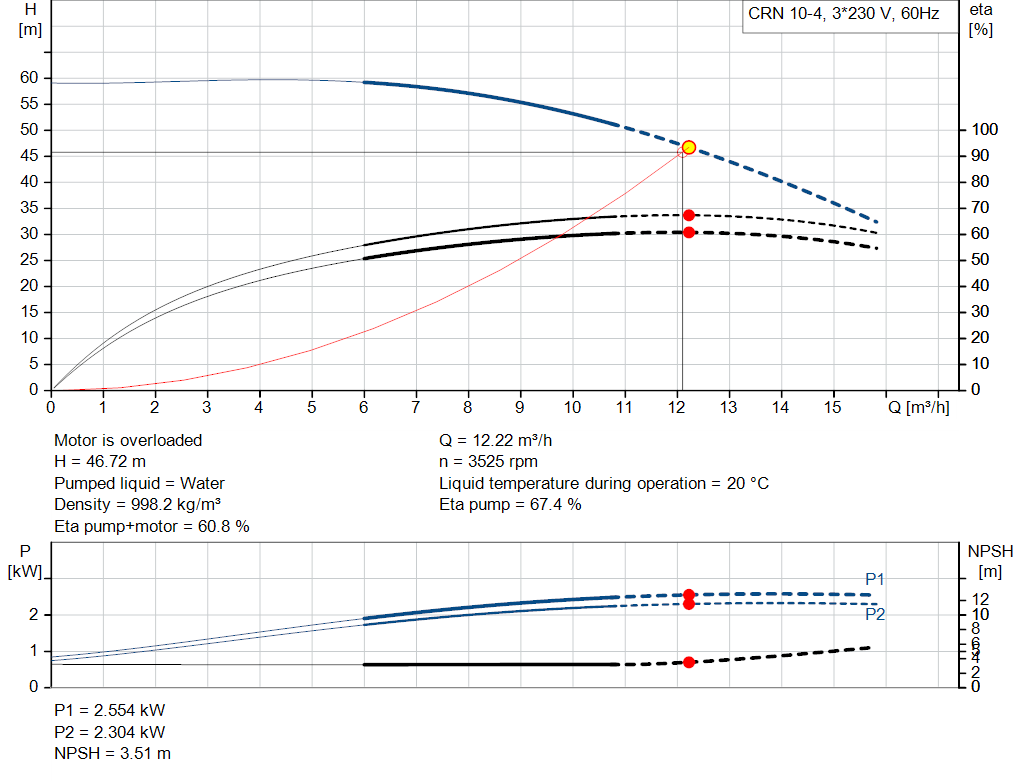

| Toerental waarop de pompgegevens zijn gebaseerd: | 3461 omw/min |
| Nominaal debiet: | 12.1 m³/u |
| Nominale opvoerhoogte: | 45.8 m |
| Werkelijke waaierdiameter: | 92.9 mm |
| Plaatsing: | Verticaal |
| Asafdichting arrangement: | Enkel |
| Primaire asafdichting: | HQQE |
| Code voor asafdichting: | HQQE |
| Goedkeuringen: | CE,CURUS |
| Drinkwater keurmerk: | NSF/ANSI 61 |
| Curve tolerantie: | ISO9906:2012 3B |
| Materialen: | |
| Pomphuis: | Roestvast staal |
| EN 1.4408 | |
| AISI 316 | |
| Waaier: | Roestvast staal |
| EN 1.4401 | |
| AISI 316 | |
| Lager: | SIC |
| Installatie: | |
| Maximum omgevingstemperatuur: | 60 °C |
| Maximale bedrijfsdruk: | 25 bar |
| Max. druk bij toegestane temp: | 25 bar / 120 °C |
| 25 bar / -20 °C | |
| Type aansluiting: | DIN / ANSI / JIS |
| Maat van de zuigaansluiting: | DN 50 |
| 2 inch | |
| Maat van de persaansluiting: | DN 50 |
| 2 inch | |
| Druktrap voor leidingaansluiting: | PN 25 |
| Druktrap van de zuigaansluiting: | 300 lb |
| Flensmaat van de motor: | 182TC |

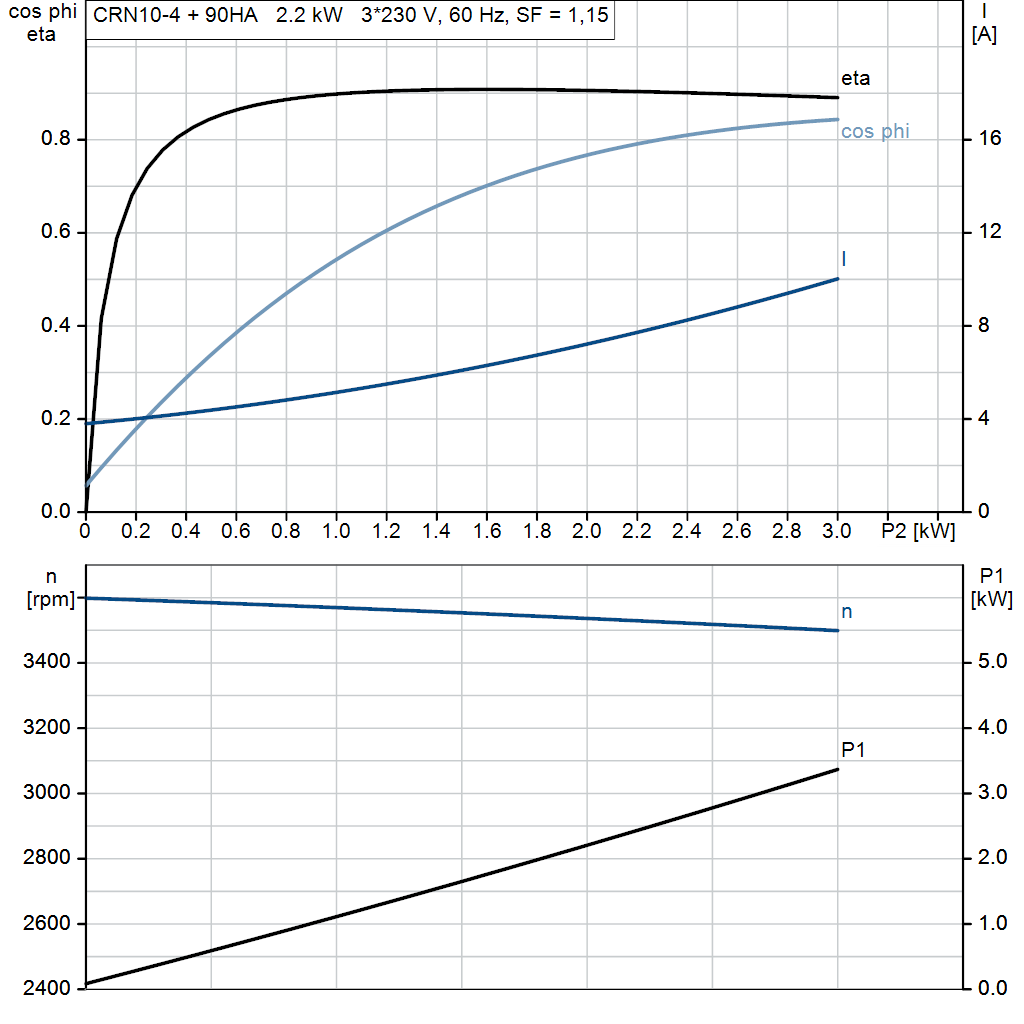

| Elektrische gegevens: | |
| Motor standaard: | NEMA |
| Motortype: | 90HA |
| Nominaal vermogen - P2: | 2.2 kW |
| Vermogen (P2) benodigd voor pomp: | 2.2 kW |
| Netfrequentie: | 60 Hz |

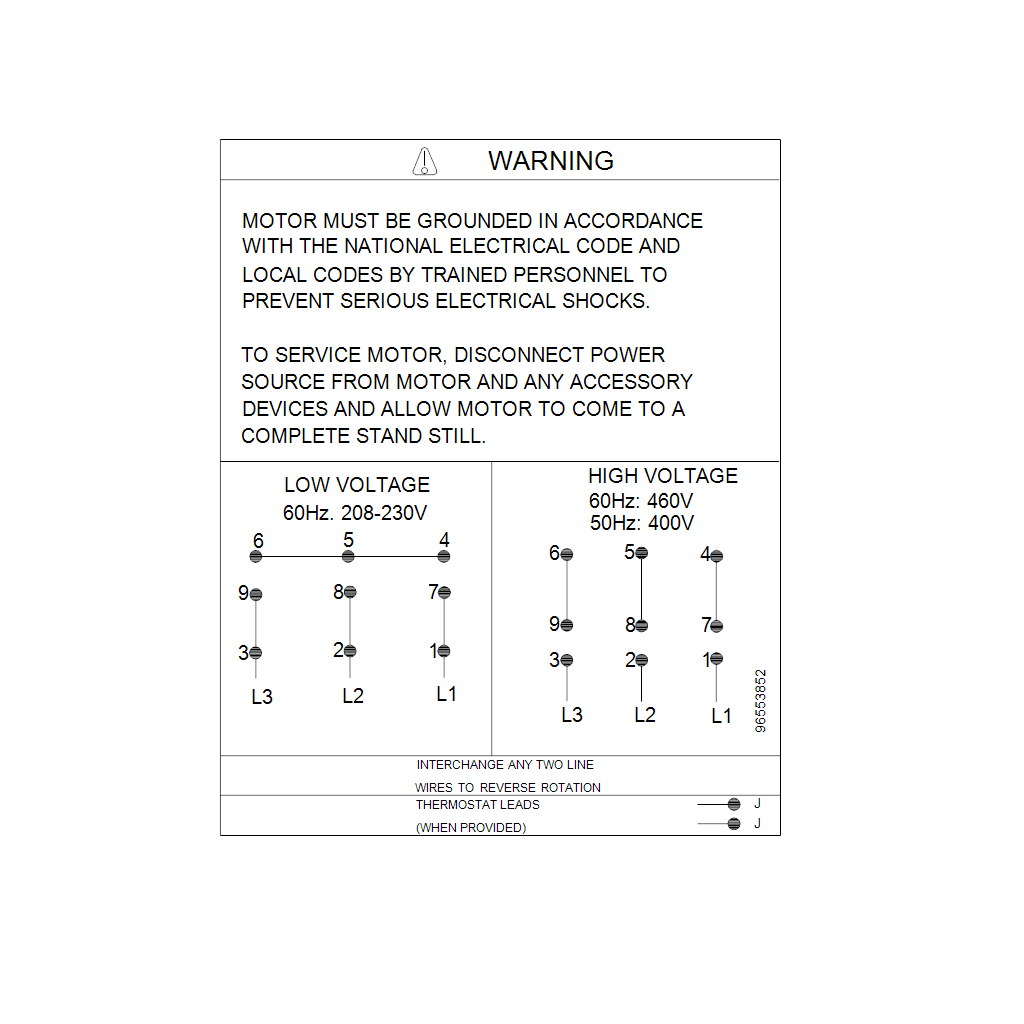

| Nominale spanning: | 3 x 208-230YY/460Y V |
| Service factor: | 1.15 |
| Nominaalstroom: | 8,50-8,20/4,10 A |
| Startstroom: | 850-970 % |
| Cos phi - vermogensfactor: | 0.85-0.82 |
| Nominaal toerental: | 3500-3520 omw/min |
| IE efficiëntieklasse: | NEMA Premium / IE3 60Hz |
| Motorrendement bij nominale belasting: | 86.5 % |
| Motor efficientie bij 3/4 vermogen: | 91.1-90.9 % |
| Motor efficientie bij half vermogen: | 91.4-90.1 % |
| Pooltal: | 2 |
| Dichtheidsklasse (IEC 34-5): | 55 Dust/Jetting |
| Isolatie klasse (IEC 85): | F |
| Motor Nr.: | 99540186 |
| Regeling: | |
| Frequency converter: | NONE |
| Overige: | |
| DOE pomp energie-index CL: | 0.87 |
| Netto gewicht: | 59 kg |
| Bruto gewicht: | 66 kg |
| Transportvolume: | 0.234 m³ |
