CR 95-1-1 A-F-A-V-HQQV [99141746]
CR 95-1-1 A-F-A-V-HQQV [99141746]
Grundfos
Normale prijs
€5.874,79 EUR
Normale prijs
€7.343,49 EUR
Aanbiedingsprijs
€5.874,79 EUR
Eenheidsprijs
/
per
Belastingen inbegrepen.
Verzendkosten worden berekend bij de checkout.
Prijs (ex BTW): €4.855,20
Kan beschikbaarheid voor afhalen niet laden

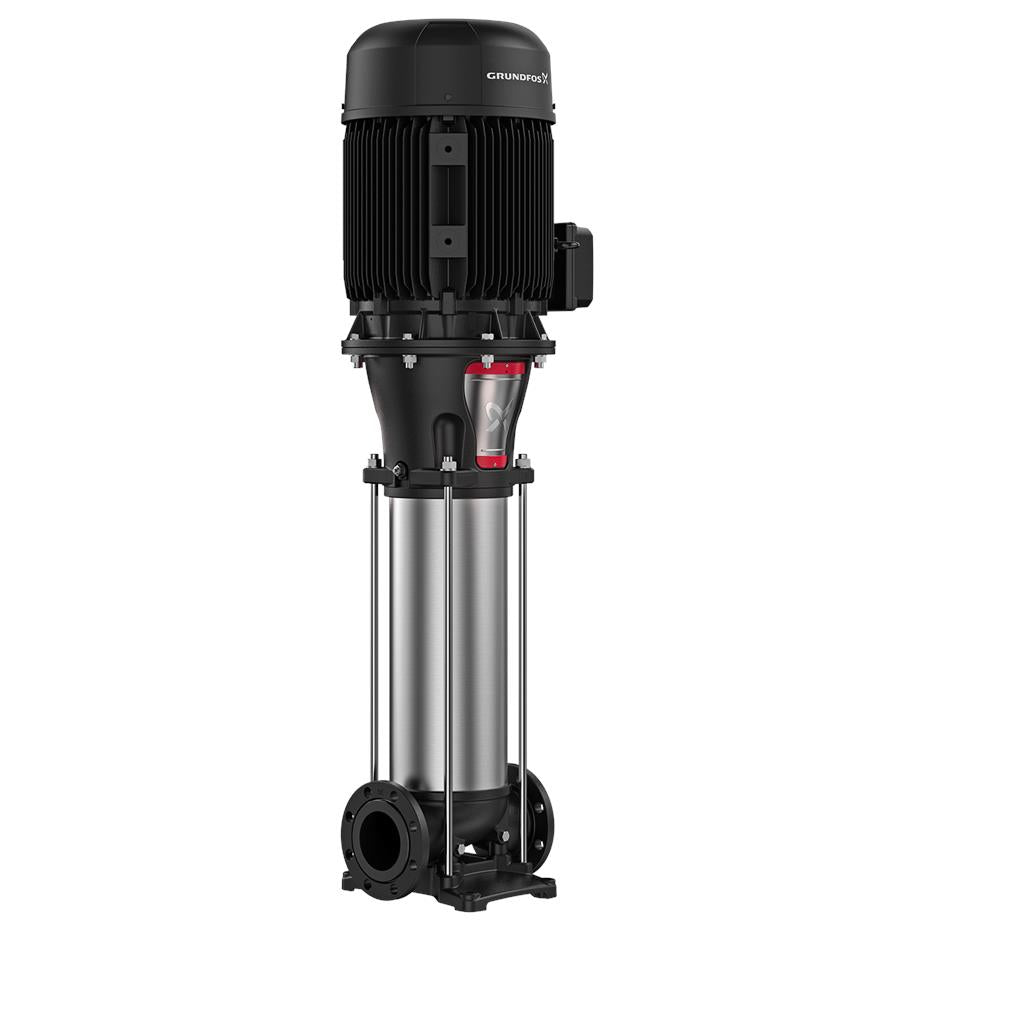

Verticale, meertraps centrifugaalpomp met zuig- en persopeningen op hetzelfde niveau (inline). De pompkop en voet zijn van gietijzer – alle andere natte delen van roestvaststaal. De Grundfos cartridgeasafdichting waarborgt een hoge betrouwbaarheid, veilige hantering en gemakkelijke service en toegankelijkheid. Krachtoverbrenging via een gedeelde koppeling. Aansluiting van het leidingwerk via DIN-flenzen. De pomp is uitgerust met een 3-fase, op de voet gemonteerde, ventilatorgekoelde a-synchrone motor.
Specs Table
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -20 .. 90 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |

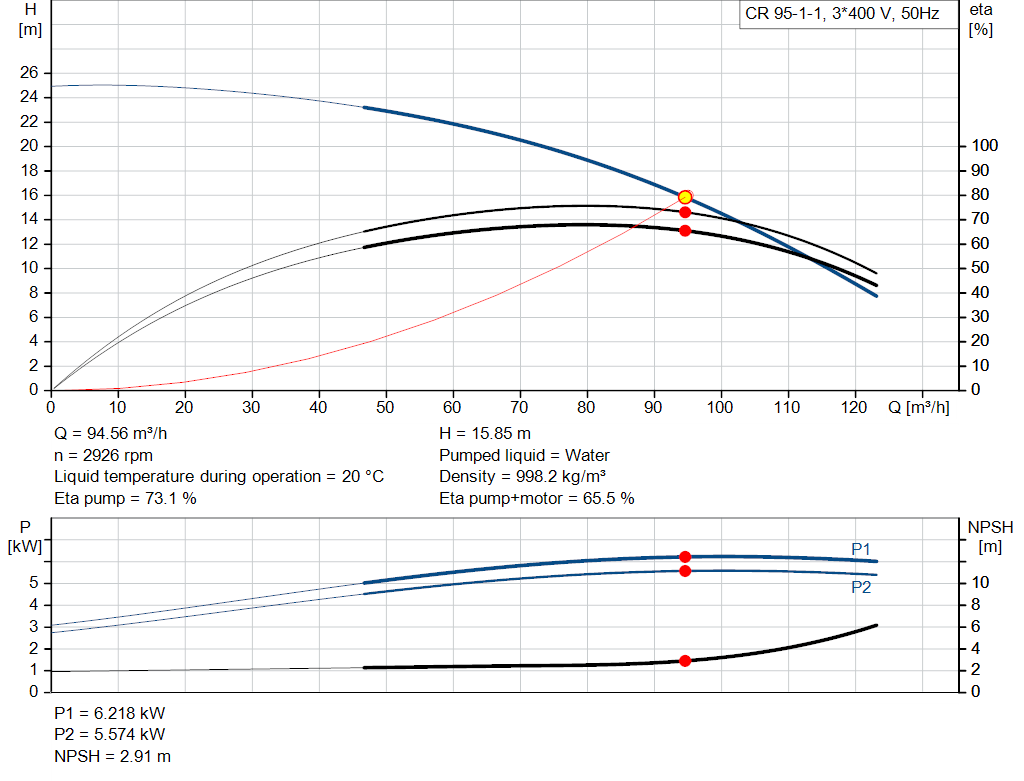

| Technical: | |
| Pump speed on which pump data are based: | 2938 rpm |
| Rated flow: | 95 m³/h |
| Rated head: | 16 m |
| Pump orientation: | Vertical |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | HQQV |
| Code for shaft seal: | HQQV |
| Approvals: | CE,EAC,UKCA,SEPRO |
| Approvals for drinking water: | ACS |
| Curve tolerance: | ISO9906:2012 3B |
| Materials: | |
| Base: | Ductile cast iron |
| EN 1563 EN-GJS-500-7 | |
| ASTM A536-84 65-45-12 | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Bearing: | WC/WC |
| Support bearing: | Graflon |
| Material certified according to: | European standards |

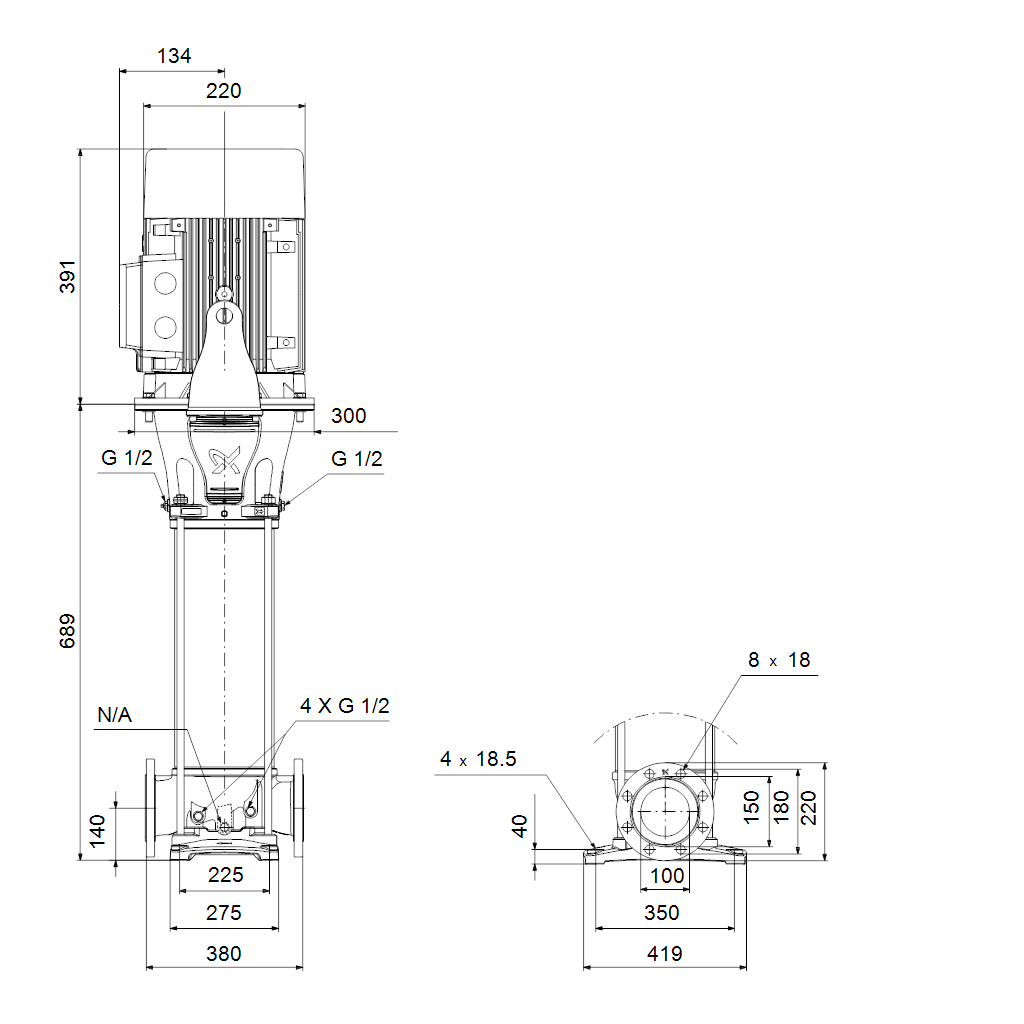

| Installation: | |
| Maximum ambient temperature: | 60 °C |
| Maximum operating pressure: | 16 bar |
| Max pressure at stated temp: | 16 bar / 90 °C |
| Type of connection: | DIN |
| Size of inlet connection: | DN 100 |
| Size of outlet connection: | DN 100 |
| Pressure rating for connection: | PN 16 |
| Flange size for motor: | FF265 |

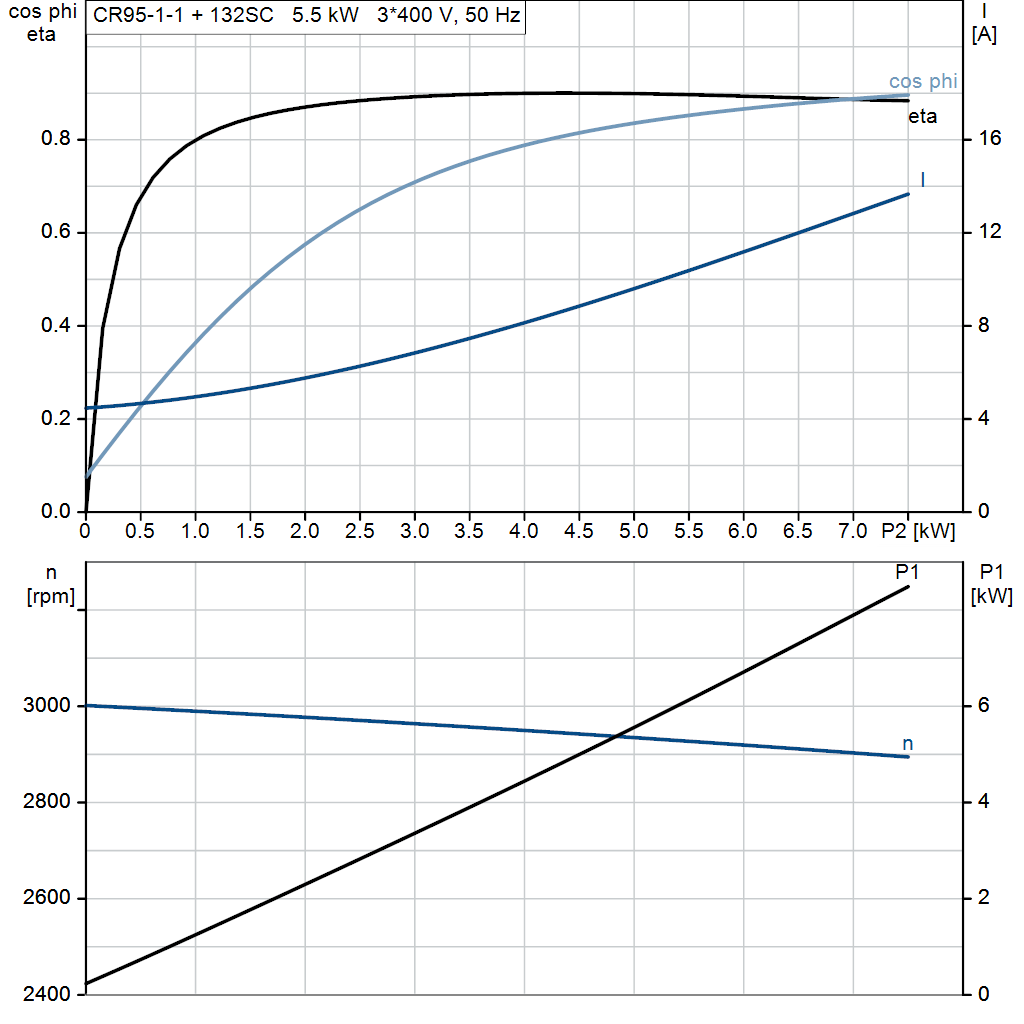

| Electrical data: | |
| Motor standard: | IEC |
| Motor type: | 132SC |
| Rated power - P2: | 5.5 kW |
| Power (P2) required by pump: | 5.5 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-415D V |
| Rated current: | 11 A |
| Starting current: | 1080-1180 % |
| Cos phi - power factor: | 0.87-0.82 |
| Rated speed: | 2920-2940 rpm |
| IE Efficiency class: | IE3 |
| Motor efficiency at full load: | 89.2 % |
| Motor efficiency at 3/4 load: | 90.0-89.8 % |
| Motor efficiency at 1/2 load: | 89.6-88.4 % |
| Number of poles: | 2 |
| Enclosure class (IEC 34-5): | 55 Dust/Jetting |
| Insulation class (IEC 85): | F |
| Motor No: | 85U17417 |
| Controls: | |
| Frequency converter: | None |
| Others: | |
| Terminal box position: | 6 |
| Minimum efficiency index, MEI ≥: | 0.70 |
| Net weight: | 131 kg |
| Gross weight: | 174 kg |
| Shipping volume: | 0.611 m³ |
| Thrust handling device (Yes/No): | N |
| Country of origin: | DK |
| Custom tariff no.: | 84137075 |
