CR 3-8 A-FGJ-A-E-HQQE [96083187]
CR 3-8 A-FGJ-A-E-HQQE [96083187]
Grundfos
Normale prijs
€1.369,27 EUR
Normale prijs
€2.043,69 EUR
Aanbiedingsprijs
€1.369,27 EUR
Eenheidsprijs
/
per
Belastingen inbegrepen.
Verzendkosten worden berekend bij de checkout.
Prijs (ex BTW): €1.131,63
Kan beschikbaarheid voor afhalen niet laden

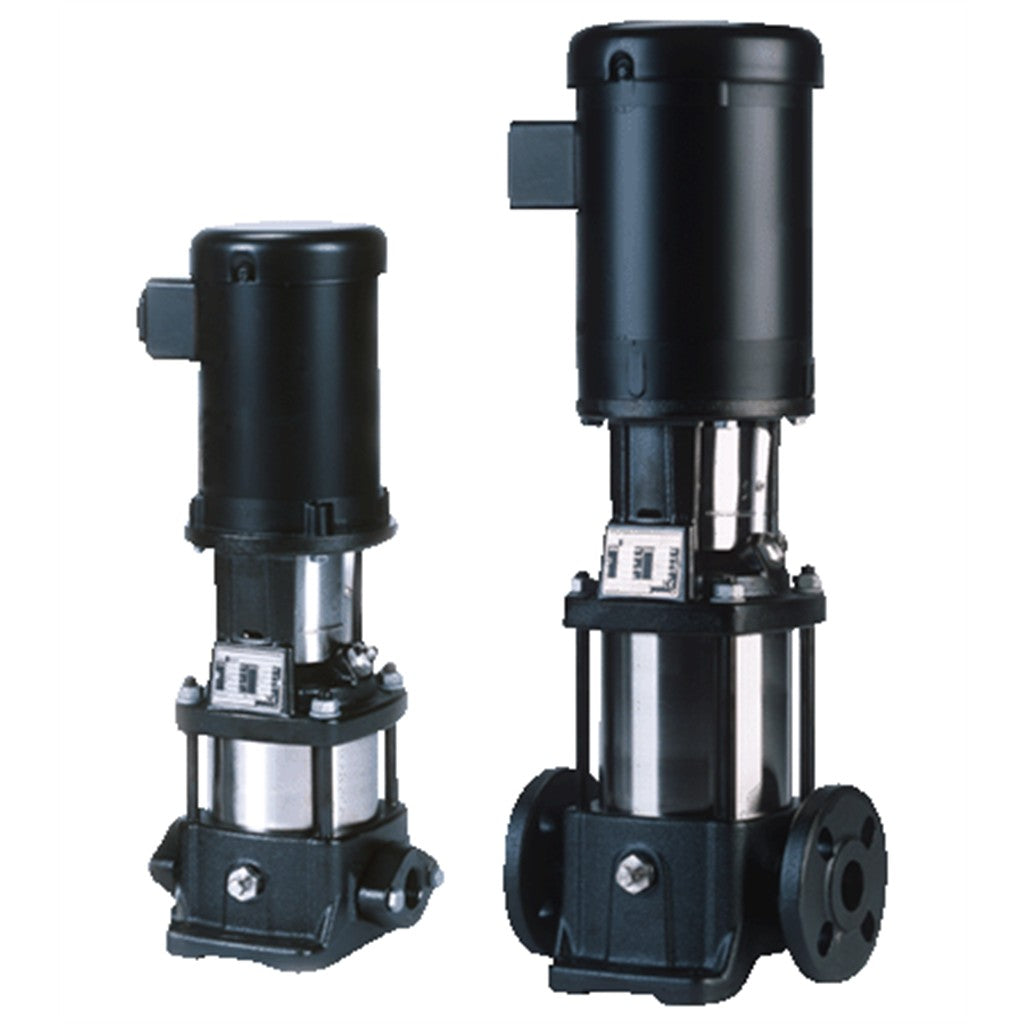

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges.
Specs Table
| Vloeistof: | |
| Te verpompen medium: | Water |
| Bereik vloeistoftemperatuur: | -20 .. 120 °C |
| Medium temperatuur tijdens bedrijf: | 20 °C |
| Dichtheid: | 998.2 kg/m³ |
| Technisch: | |

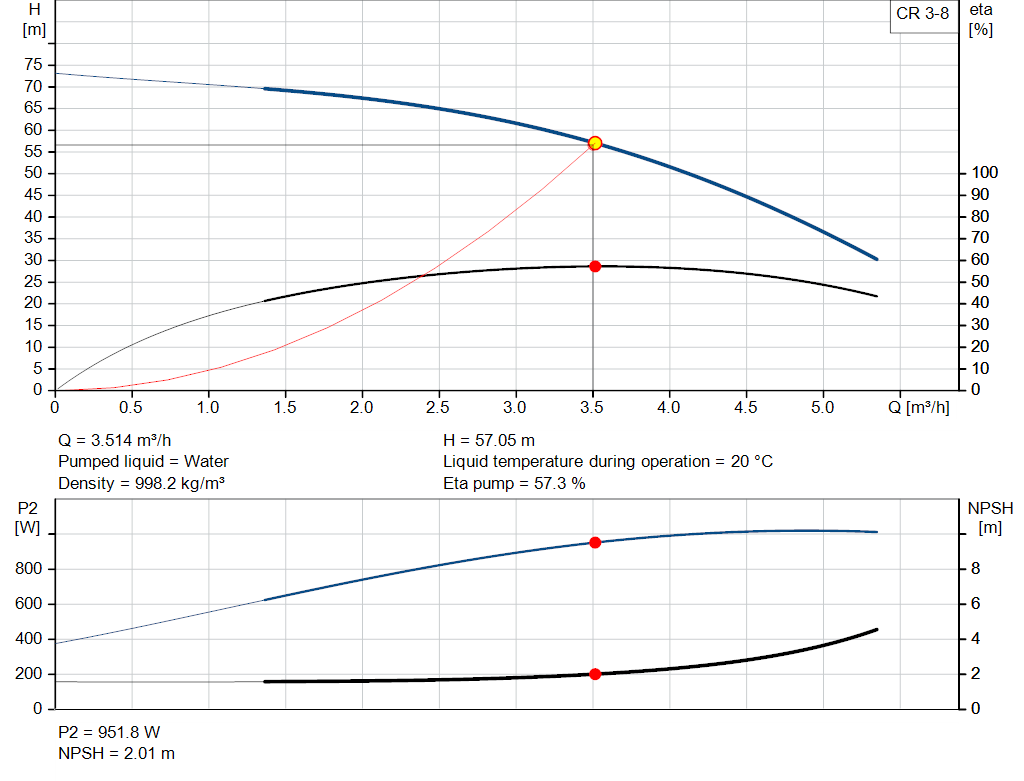

| Toerental waarop de pompgegevens zijn gebaseerd: | 3466 omw/min |
| Nominaal debiet: | 3.5 m³/u |
| Nominale opvoerhoogte: | 56.6 m |
| Plaatsing: | Verticaal |
| Asafdichting arrangement: | Enkel |
| Primaire asafdichting: | HQQE |
| Code voor asafdichting: | HQQE |
| Goedkeuringen: | CE |
| Drinkwater keurmerk: | NSF/ANSI 61 |
| Curve tolerantie: | ISO9906:2012 3B |
| Materialen: | |
| Pomphuis: | Gietijzer |
| EN 1561 EN-GJL-200 | |
| ASTM A48-25B | |
| Waaier: | Roestvast staal |
| EN 1.4301 | |
| AISI 304 | |
| Lager: | SIC |
| Installatie: | |
| Maximale bedrijfsdruk: | 25 bar |
| Max. druk bij toegestane temp: | 25 bar / 120 °C |
| 25 bar / -20 °C | |
| Type aansluiting: | DIN / ANSI / JIS |
| Maat van de zuigaansluiting: | DN 25/32 |
| 1 1/4 inch | |
| Maat van de persaansluiting: | DN 25/32 |
| 1 1/4 inch | |
| Druktrap voor leidingaansluiting: | PN 25 |
| Druktrap van de zuigaansluiting: | 250 lb |
| Flensmaat van de motor: | 56C |
| Elektrische gegevens: | |
| Motor standaard: | NEMA |
| Vermogen (P2) benodigd voor pomp: | 1.1 kW |
| Regeling: | |
| Frequency converter: | NONE |
| Overige: | |
| Netto gewicht: | 20.3 kg |
| Bruto gewicht: | 25.3 kg |
| Transportvolume: | 0.14 m³ |
