CR 20-2 A-GJ-A-E-HQQE [99917745]
CR 20-2 A-GJ-A-E-HQQE [99917745]
Grundfos
Normale prijs
€3.502,22 EUR
Normale prijs
€5.227,20 EUR
Aanbiedingsprijs
€3.502,22 EUR
Eenheidsprijs
/
per
Belastingen inbegrepen.
Verzendkosten worden berekend bij de checkout.
Prijs (ex BTW): €2.894,40
Kan beschikbaarheid voor afhalen niet laden

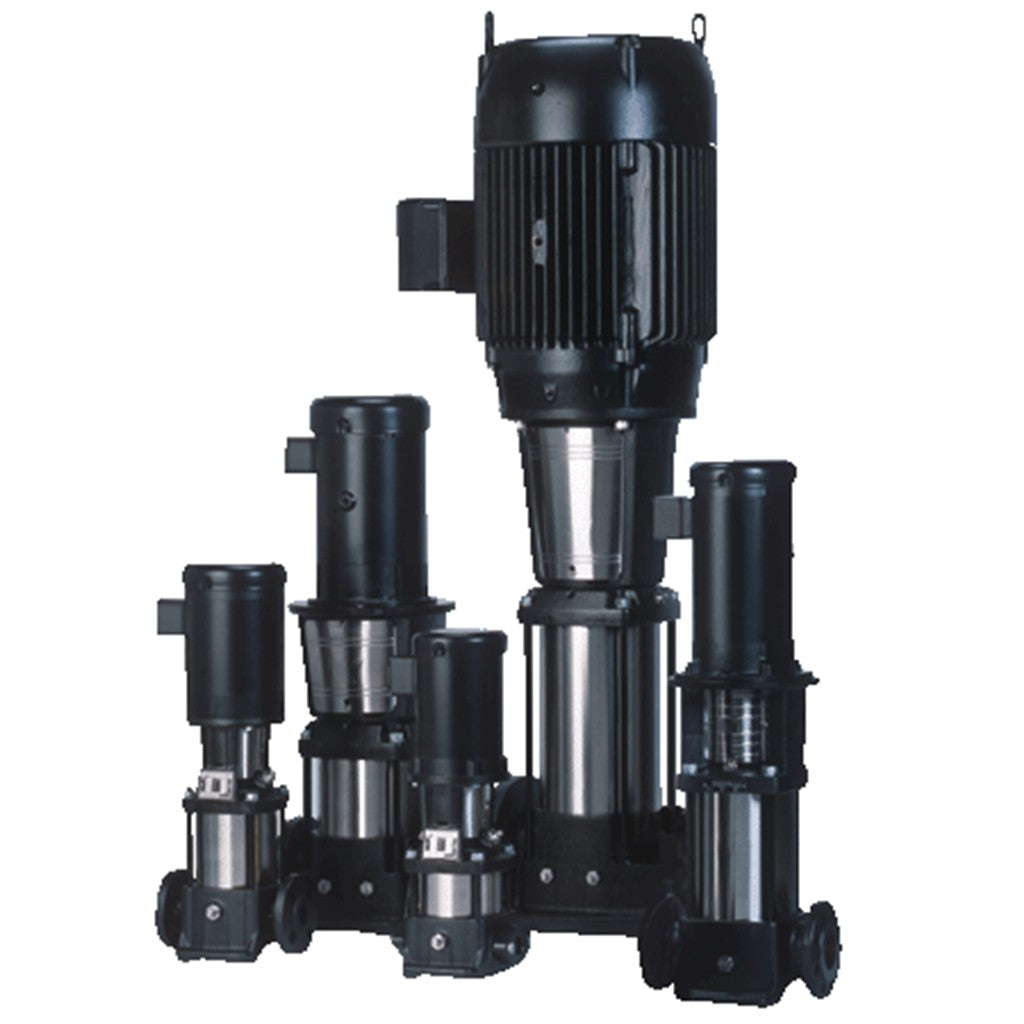

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined ANSI-JIS flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.
Specs Table
| Vloeistof: | |
| Te verpompen medium: | Water |
| Bereik vloeistoftemperatuur: | -20 .. 120 °C |
| Medium temperatuur tijdens bedrijf: | 20 °C |
| Dichtheid: | 998.2 kg/m³ |
| Technisch: | |

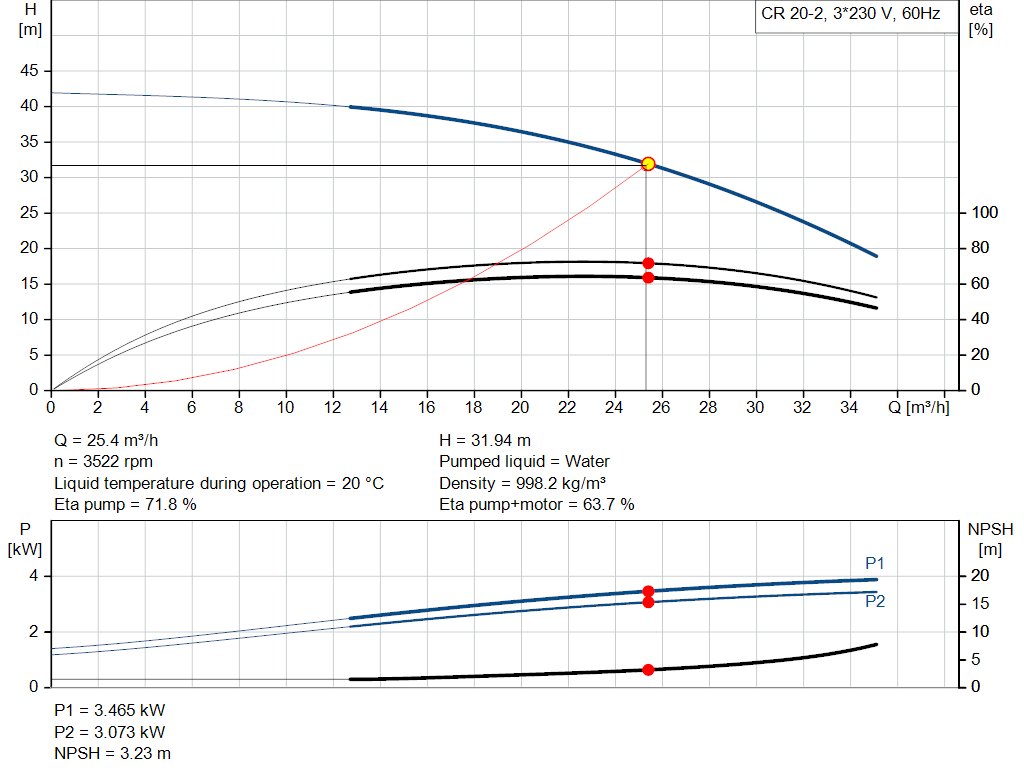

| Toerental waarop de pompgegevens zijn gebaseerd: | 3461 omw/min |
| Nominaal debiet: | 25.3 m³/u |
| Nominale opvoerhoogte: | 31.7 m |
| Werkelijke waaierdiameter: | 104.8 mm |
| Plaatsing: | Verticaal |
| Asafdichting arrangement: | Enkel |
| Primaire asafdichting: | HQQE |
| Code voor asafdichting: | HQQE |
| Goedkeuringen: | CURUS |
| Drinkwater keurmerk: | NSF/ANSI 61 |
| Curve tolerantie: | ISO9906:2012 3B |
| Materialen: | |
| Pomphuis: | Gietijzer |
| EN 1561 EN-GJL-200 | |
| ASTM A48-25B | |
| Waaier: | Roestvast staal |
| EN 1.4301 | |
| AISI 304 | |
| Lager: | SIC |
| Installatie: | |
| Maximum omgevingstemperatuur: | 40 °C |
| Maximale bedrijfsdruk: | 16 bar |
| Max. druk bij toegestane temp: | 16 bar / 120 °C |
| 16 bar / -20 °C | |
| Type aansluiting: | ANSI / JIS |

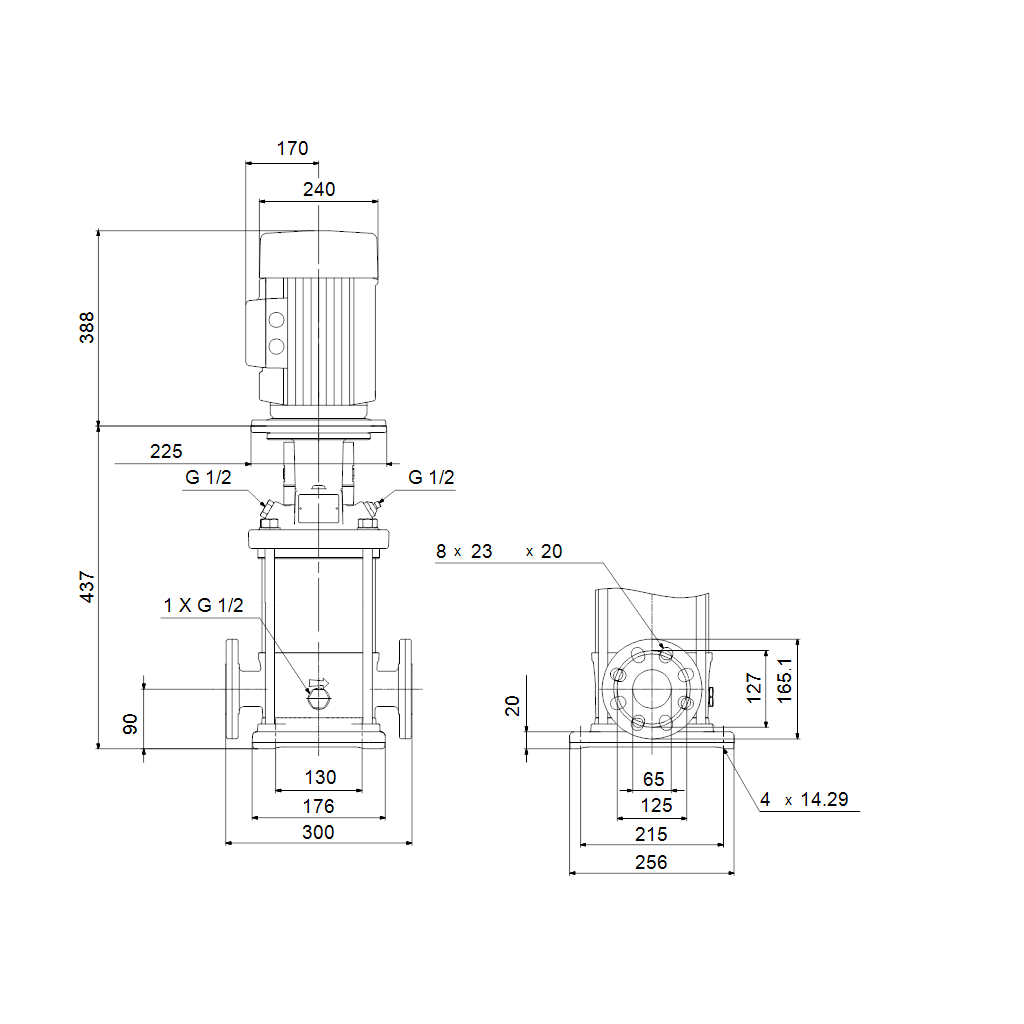

| Maat van de zuigaansluiting: | DN 50 |
| 2 inch | |
| Maat van de persaansluiting: | DN 50 |
| 2 inch | |
| Druktrap voor leidingaansluiting: | PN 25 |
| Druktrap van de zuigaansluiting: | 250 lb |
| Flensmaat van de motor: | 182TC |

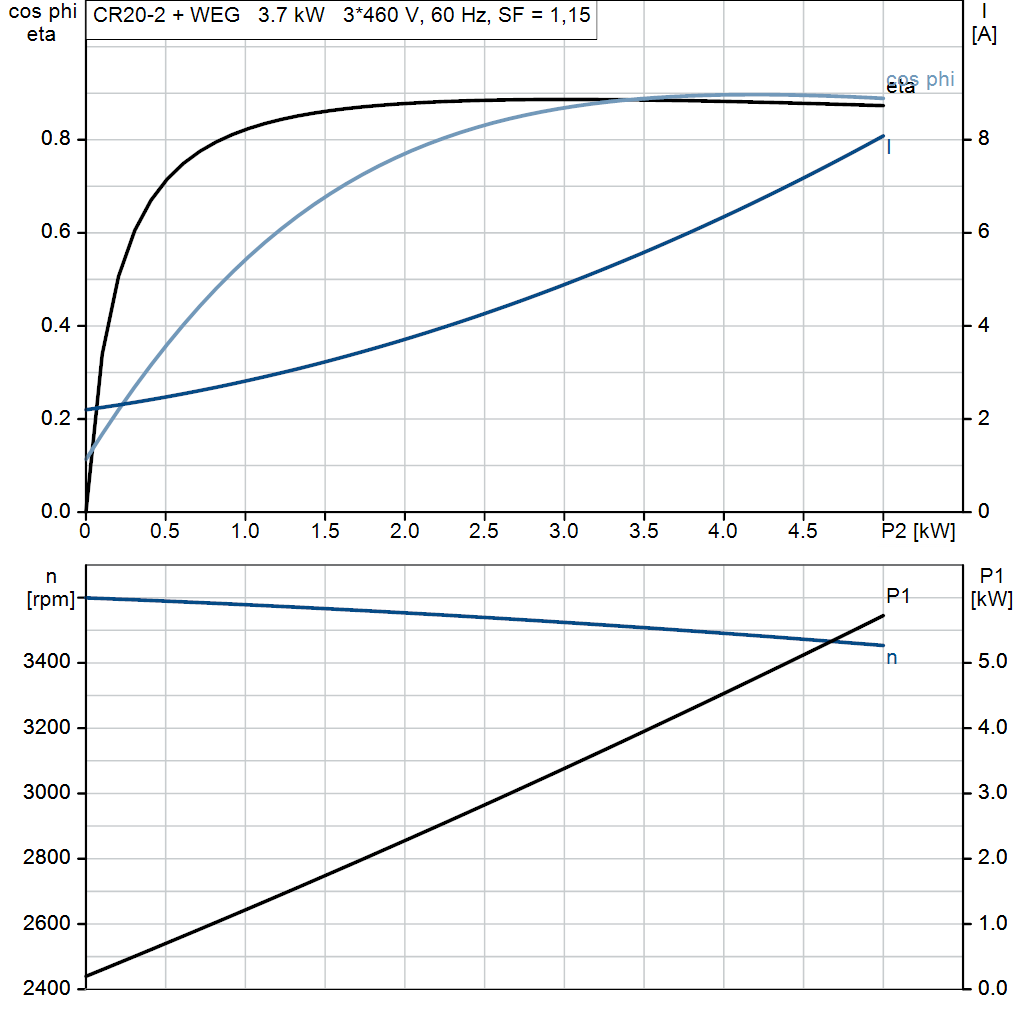

| Elektrische gegevens: | |
| Motor standaard: | NEMA |
| Motortype: | WEG |
| Nominaal vermogen - P2: | 3.7 kW |
| Vermogen (P2) benodigd voor pomp: | 3.7 kW |
| Netfrequentie: | 60 Hz |

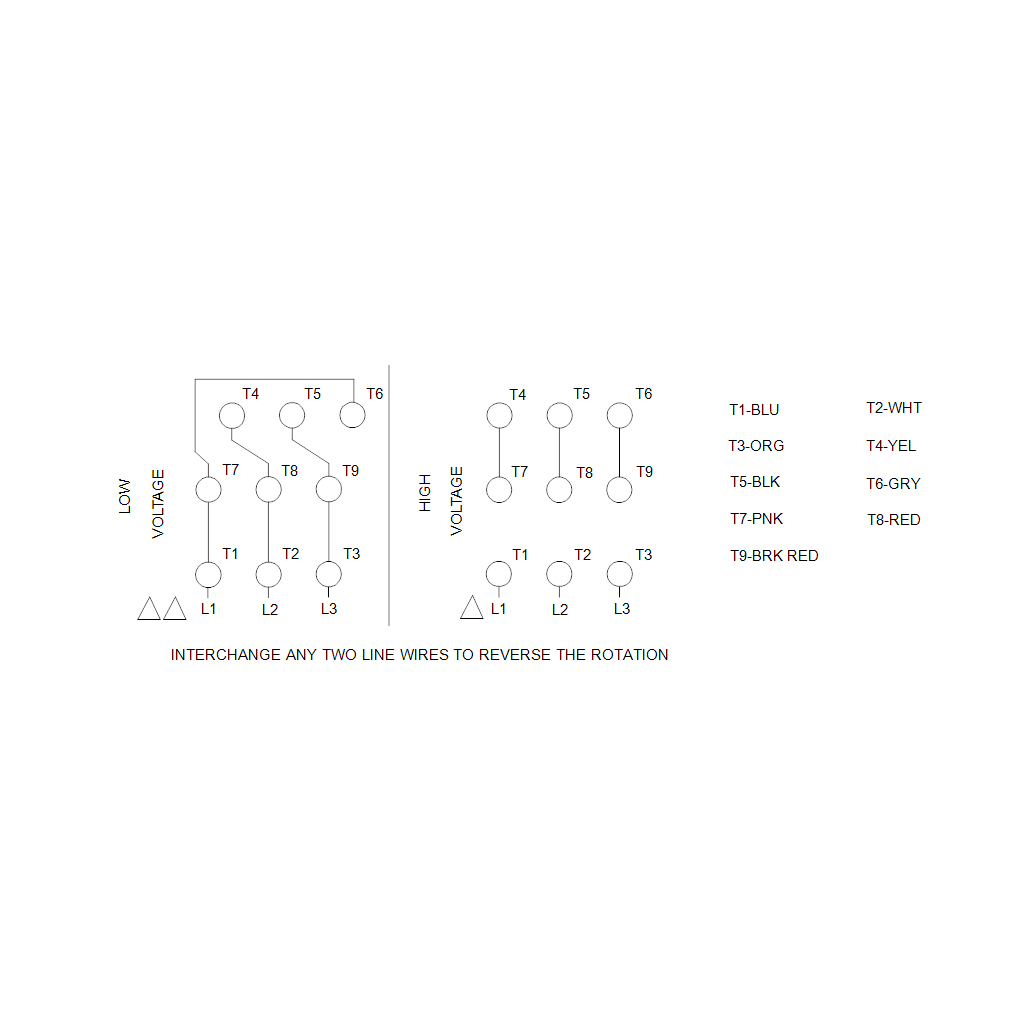

| Nominale spanning: | 3 x 230/460 V |
| Service factor: | 1.15 |
| Nominaalstroom: | 11.8/5.9 A |
| Startstroom: | 780 % |
| Cos phi - vermogensfactor: | 0.89 |
| Nominaal toerental: | 3500 omw/min |
| Rendement: | IE3 88,5% |
| IE efficiëntieklasse: | IE3 / NEMA Premium |
| Motorrendement bij nominale belasting: | 88.5 % |
| Motor efficientie bij 3/4 vermogen: | 88.5 % |
| Motor efficientie bij half vermogen: | 87.5 % |
| Pooltal: | 2 |
| Dichtheidsklasse (IEC 34-5): | IP55 |
| Isolatie klasse (IEC 85): | F |
| Motor Nr.: | 99882380 |
| Regeling: | |
| Frequency converter: | NONE |
| Overige: | |
| DOE pomp energie-index CL: | 0.91 |
| Netto gewicht: | 80 kg |
| Bruto gewicht: | 88 kg |
| Transportvolume: | 0.234 m³ |
