CR 15-8 A-GJ-A-V-HQQV [96126932]
CR 15-8 A-GJ-A-V-HQQV [96126932]
Grundfos
Normale prijs
€4.408,59 EUR
Normale prijs
€6.579,98 EUR
Aanbiedingsprijs
€4.408,59 EUR
Eenheidsprijs
/
per
Belastingen inbegrepen.
Verzendkosten worden berekend bij de checkout.
Prijs (ex BTW): €3.643,46
Kan beschikbaarheid voor afhalen niet laden

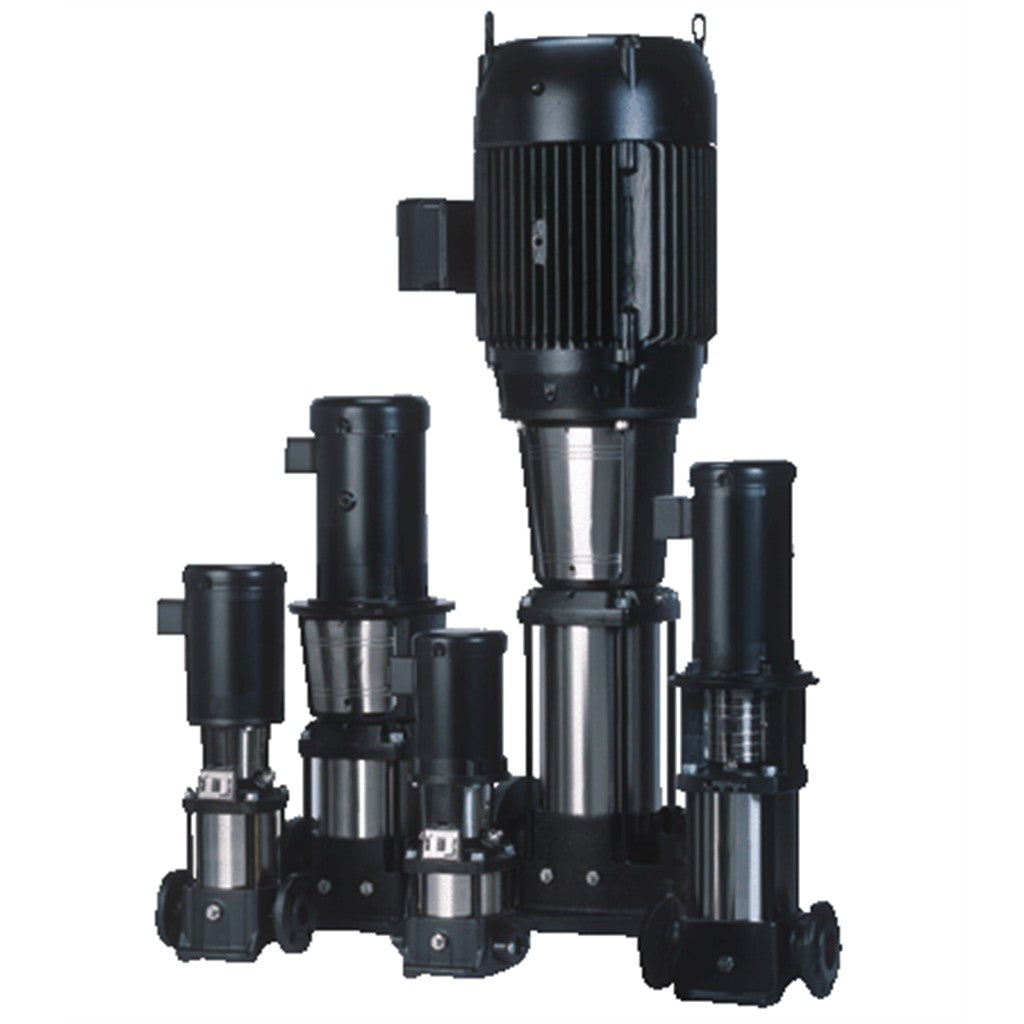

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined ANSI-JIS flanges.
Specs Table
| Vloeistof: | |
| Te verpompen medium: | Water |
| Bereik vloeistoftemperatuur: | -20 .. 90 °C |
| Medium temperatuur tijdens bedrijf: | 20 °C |
| Dichtheid: | 998.2 kg/m³ |
| Technisch: | |

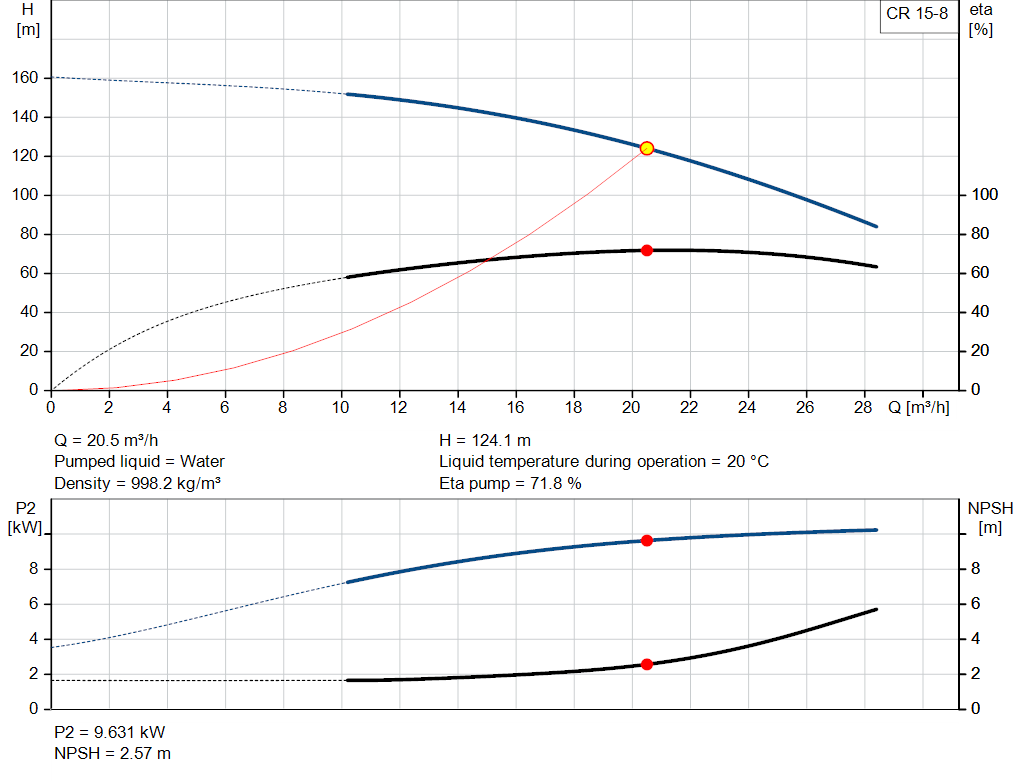

| Toerental waarop de pompgegevens zijn gebaseerd: | 3444 omw/min |
| Nominaal debiet: | 20.5 m³/u |
| Nominale opvoerhoogte: | 124.1 m |
| Werkelijke waaierdiameter: | 104.8 mm |
| Plaatsing: | Verticaal |
| Asafdichting arrangement: | Enkel |
| Primaire asafdichting: | HQQV |
| Code voor asafdichting: | HQQV |
| Goedkeuringen: | CE |
| Curve tolerantie: | ISO9906:2012 3B |
| Materialen: | |
| Pomphuis: | Gietijzer |
| EN 1561 EN-GJL-200 | |
| ASTM A48-25B | |
| Waaier: | Roestvast staal |
| EN 1.4301 | |
| AISI 304 | |
| Lager: | SIC |
| Installatie: | |
| Maximale bedrijfsdruk: | 16 bar |
| Max. druk bij toegestane temp: | 16 bar / 90 °C |
| 16 bar / -20 °C | |
| Type aansluiting: | ANSI / JIS |
| Maat van de zuigaansluiting: | DN 50 |
| 2 inch | |
| Maat van de persaansluiting: | DN 50 |
| 2 inch | |
| Druktrap voor leidingaansluiting: | PN 25 |
| Druktrap van de zuigaansluiting: | 300 lb |
| Flensmaat van de motor: | 254TC |
| Elektrische gegevens: | |
| Motor standaard: | NEMA |
| Regeling: | |
| Frequency converter: | NONE |
| Overige: | |
| Minimale Efficiëntie Index, MEI ≥: | 0.70 |
| DOE pomp energie-index CL: | 0.91 |
| Netto gewicht: | 53 kg |
| Bruto gewicht: | 105 kg |
| Transportvolume: | 0.234 m³ |
