CR 125-1 A-F-A-E-HQQE [93390552]
CR 125-1 A-F-A-E-HQQE [93390552]
Grundfos
Normale prijs
€8.010,53 EUR
Normale prijs
€11.956,01 EUR
Aanbiedingsprijs
€8.010,53 EUR
Eenheidsprijs
/
per
Belastingen inbegrepen.
Verzendkosten worden berekend bij de checkout.
Prijs (ex BTW): €6.620,27
Kan beschikbaarheid voor afhalen niet laden

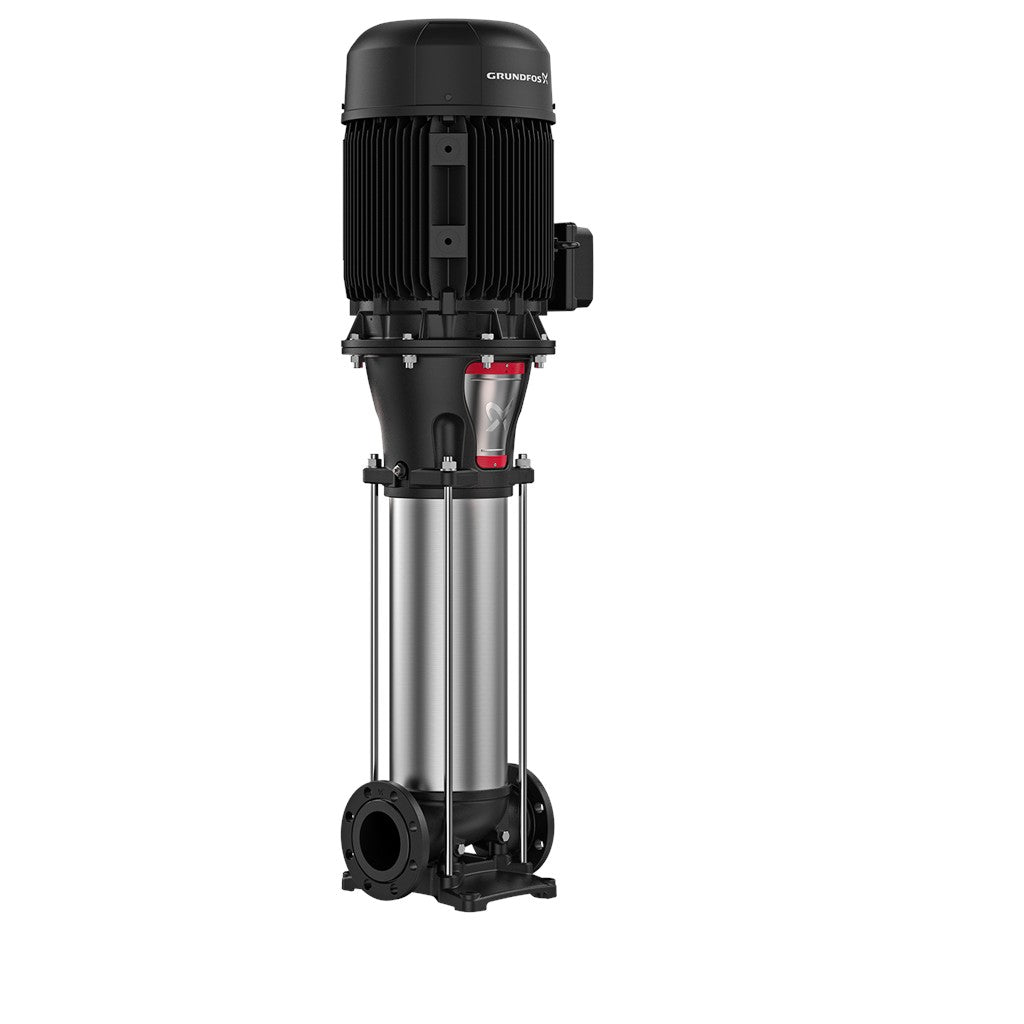

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via DIN flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.
Specs Table
| Vloeistof: | |
| Te verpompen medium: | Water |
| Bereik vloeistoftemperatuur: | -20 .. 120 °C |
| Medium temperatuur tijdens bedrijf: | 20 °C |
| Dichtheid: | 998.2 kg/m³ |
| Technisch: | |

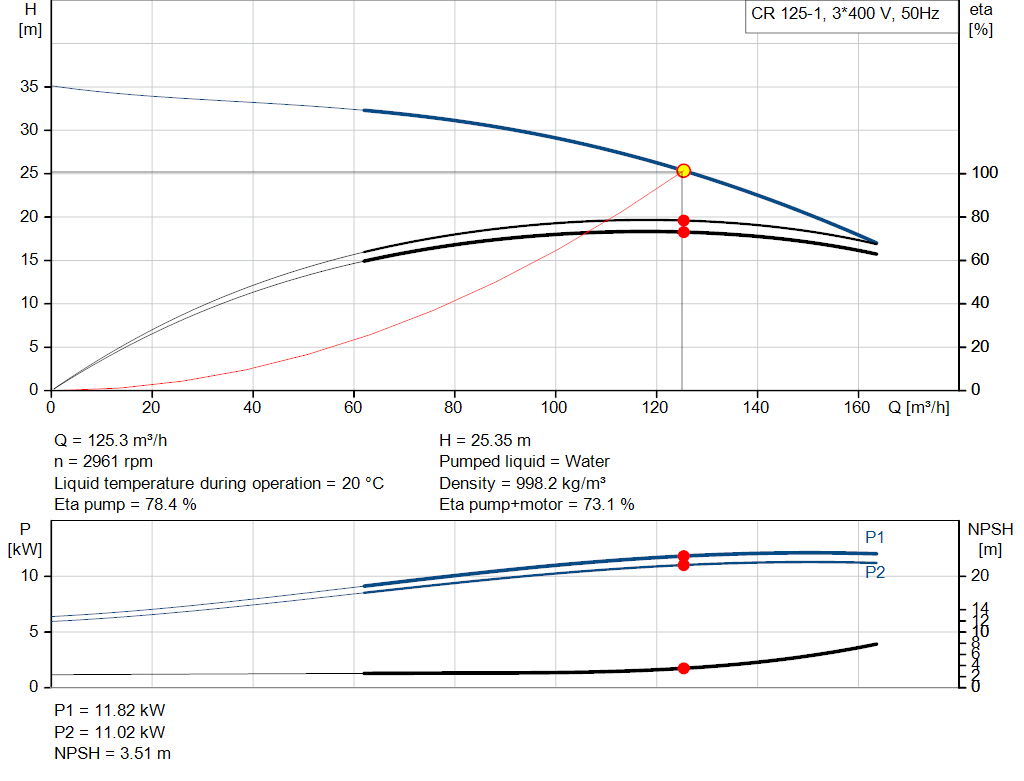

| Toerental waarop de pompgegevens zijn gebaseerd: | 2950 omw/min |
| Nominaal debiet: | 125 m³/u |
| Nominale opvoerhoogte: | 25.2 m |
| Plaatsing: | Verticaal |
| Asafdichting arrangement: | Enkel |
| Primaire asafdichting: | HQQE |
| Code voor asafdichting: | HQQE |
| Goedkeuringen: | CE,EAC,UKCA,SEPRO |
| Drinkwater keurmerk: | ACS |
| Curve tolerantie: | ISO9906:2012 3B |
| Materialen: | |
| Pomphuis: | Nodulair gietijzer |
| EN 1563 EN-GJS-500-7 | |
| ASTM A536-84 65-45-12 | |
| Waaier: | Roestvast staal |
| EN 1.4301 | |
| AISI 304 | |
| Lager: | WC/WC |
| Steunlager: | Graflon |
| Materiaal gecertificeerd volgens: | European standards |
| Installatie: | |
| Maximum omgevingstemperatuur: | 60 °C |
| Maximale bedrijfsdruk: | 16 bar |
| Max. druk bij toegestane temp: | 16 bar / 120 °C |

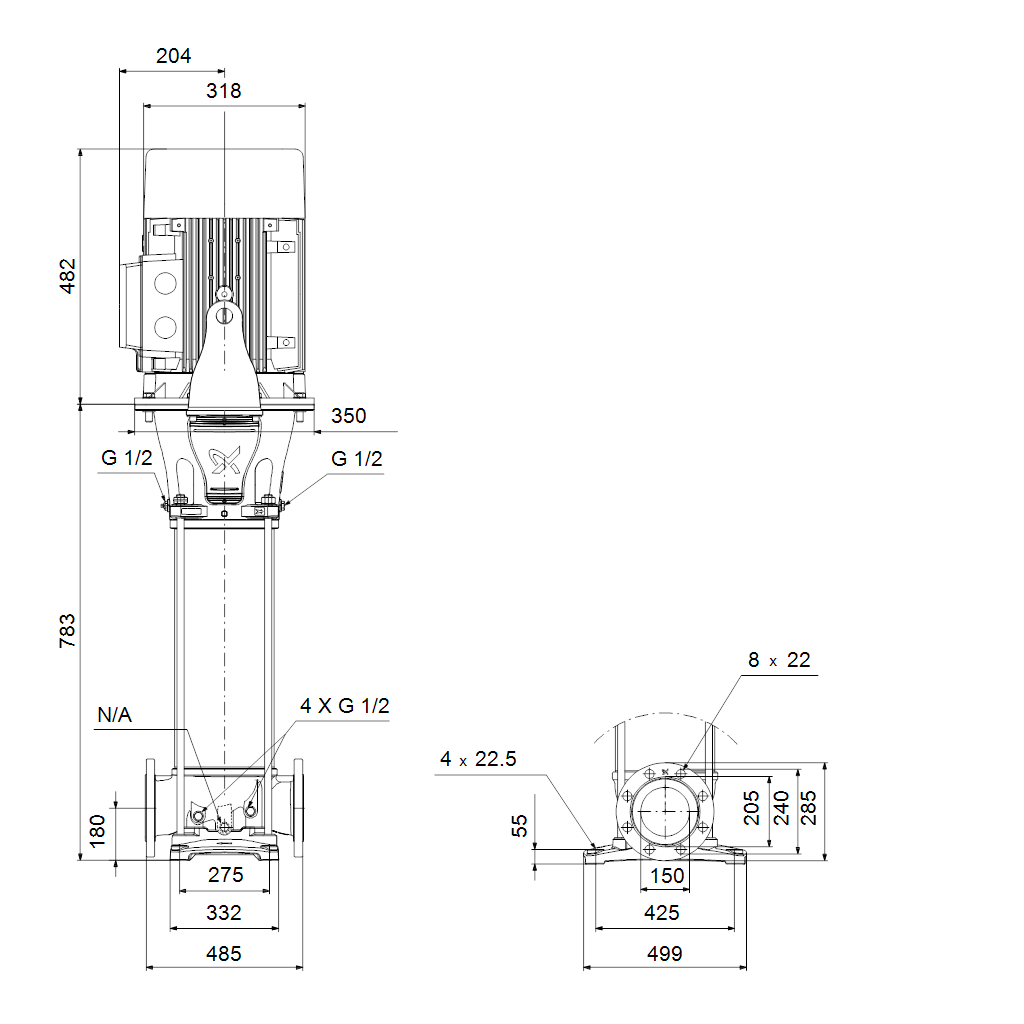

| Type aansluiting: | DIN |
| Maat van de zuigaansluiting: | DN 150 |
| Maat van de persaansluiting: | DN 150 |
| Druktrap voor leidingaansluiting: | PN 16 |
| Flensmaat van de motor: | FF300 |
| Elektrische gegevens: | |
| Motor standaard: | IEC |
| Motortype: | 160MD |
| Nominaal vermogen - P2: | 11 kW |
| Vermogen (P2) benodigd voor pomp: | 11 kW |
| Netfrequentie: | 50 Hz |

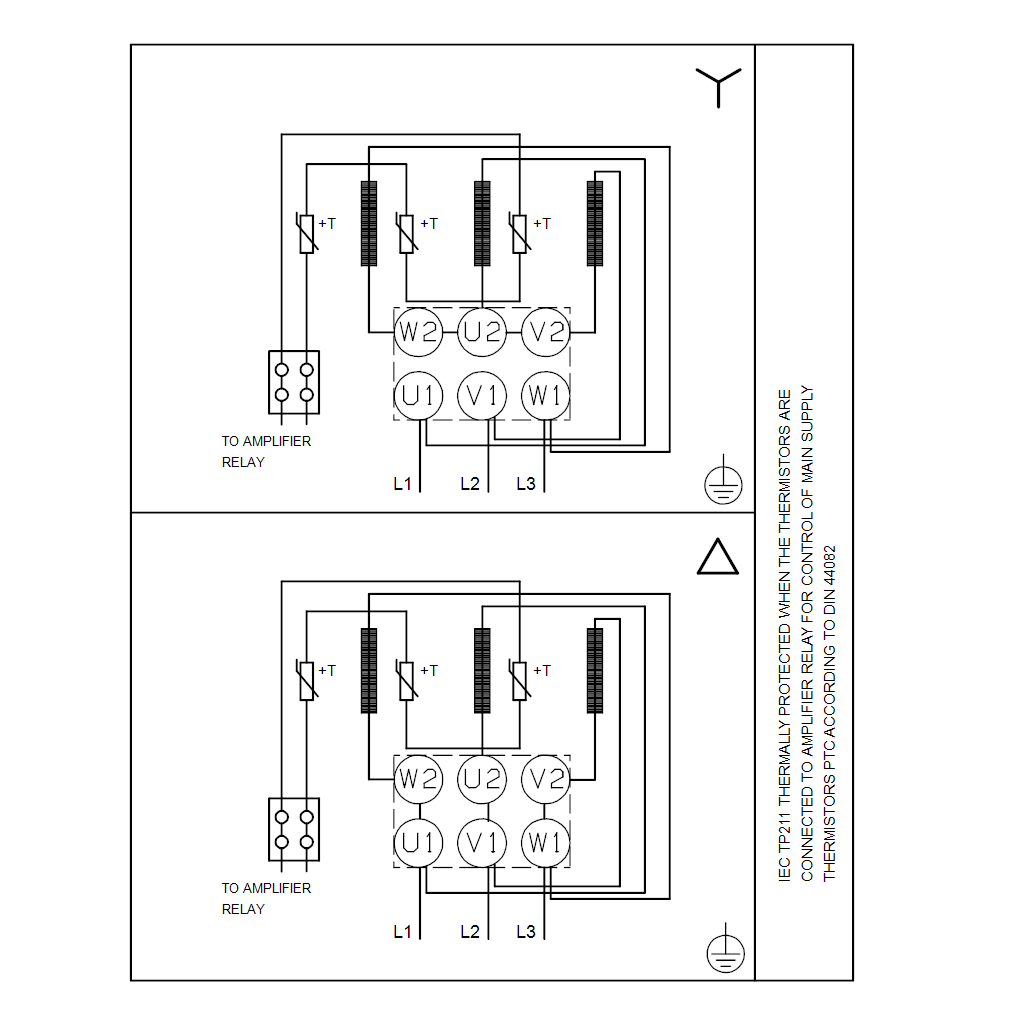

| Nominale spanning: | 3 x 380-400D/660-690Y V |
| Nominaalstroom: | 21.4/12.4 A |
| Startstroom: | 950-1000 % |

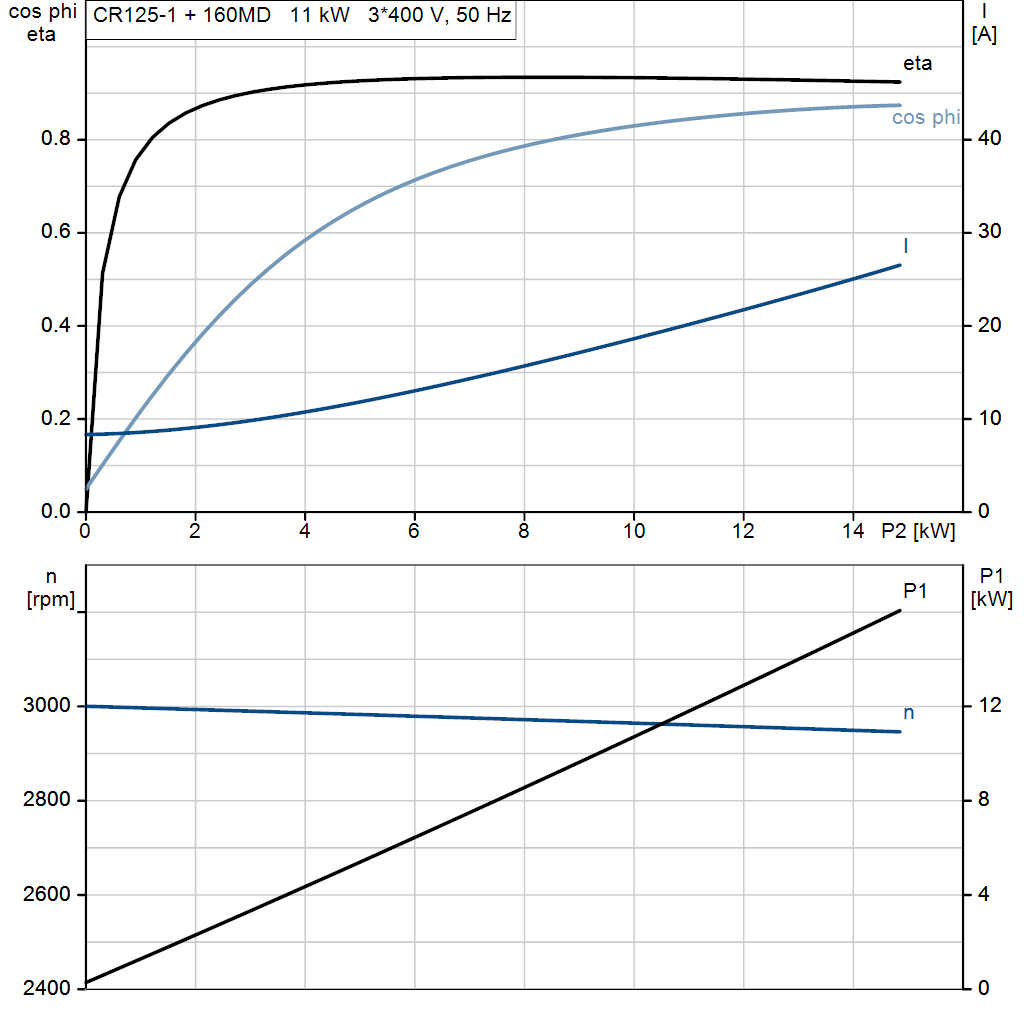

| Cos phi - vermogensfactor: | 0.86-0.84 |
| Nominaal toerental: | 2960 omw/min |
| IE efficiëntieklasse: | IE4 |
| Motorrendement bij nominale belasting: | 92.6 % |
| Motor efficientie bij 3/4 vermogen: | 93.5-93.4 % |
| Motor efficientie bij half vermogen: | 92.8-92.9 % |
| Pooltal: | 2 |
| Dichtheidsklasse (IEC 34-5): | 55 Dust/Jetting |
| Isolatie klasse (IEC 85): | F |
| Motor Nr.: | 92754774 |
| Regeling: | |
| Frequency converter: | NONE |
| Overige: | |
| Positie Klemmenkast: | 6 |
| Minimale Efficiëntie Index, MEI ≥: | 0.70 |
| Netto gewicht: | 239 kg |
| Bruto gewicht: | 303 kg |
| Transportvolume: | 1.14 m³ |
| Stuwkrachtbehandelingsapparaat: | N |
