CR 10-2 A-FJ-A-E-HQQE [99108157]
CR 10-2 A-FJ-A-E-HQQE [99108157]
Grundfos
Normale prijs
€1.832,42 EUR
Normale prijs
€2.290,53 EUR
Aanbiedingsprijs
€1.832,42 EUR
Eenheidsprijs
/
per
Belastingen inbegrepen.
Verzendkosten worden berekend bij de checkout.
Prijs (ex BTW): €1.514,40
Kan beschikbaarheid voor afhalen niet laden

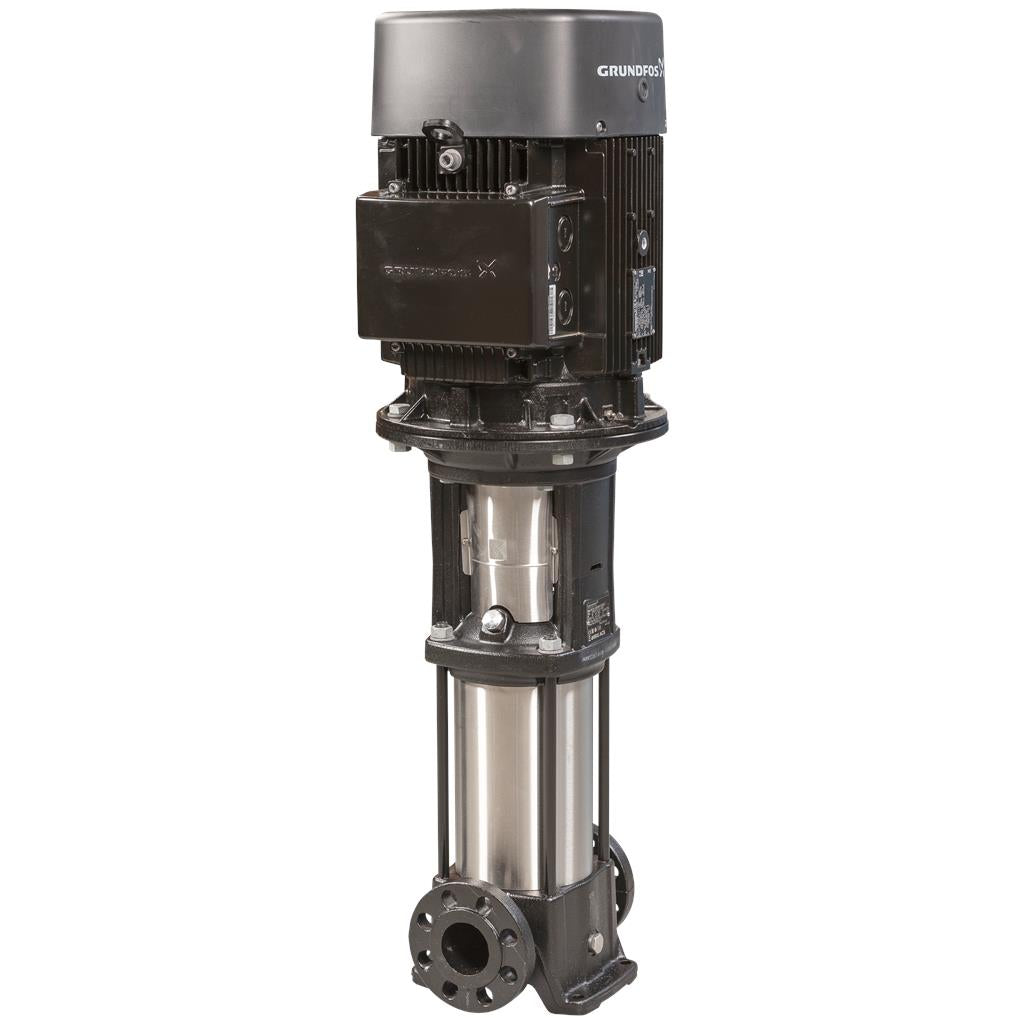

Verticale, meertraps centrifugaalpomp met zuig- en persopeningen op hetzelfde niveau (inline). De pompkop en voet zijn van gietijzer – alle andere natte delen van roestvaststaal. Een cartridgeasafdichting waarborgt een hoge betrouwbaarheid, veilige hantering en gemakkelijke service en toegankelijkheid. Krachtoverbrenging via een gedeelde koppeling. Aansluiting leidingwerk via gecombineerde DIN-JIS-flenzen. De pomp is uitgerust met een 3-fase, op de voet gemonteerde, ventilatorgekoelde a-synchrone motor.
Specs Table
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -20 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |
| Pump speed on which pump data are based: | 1700 rpm |

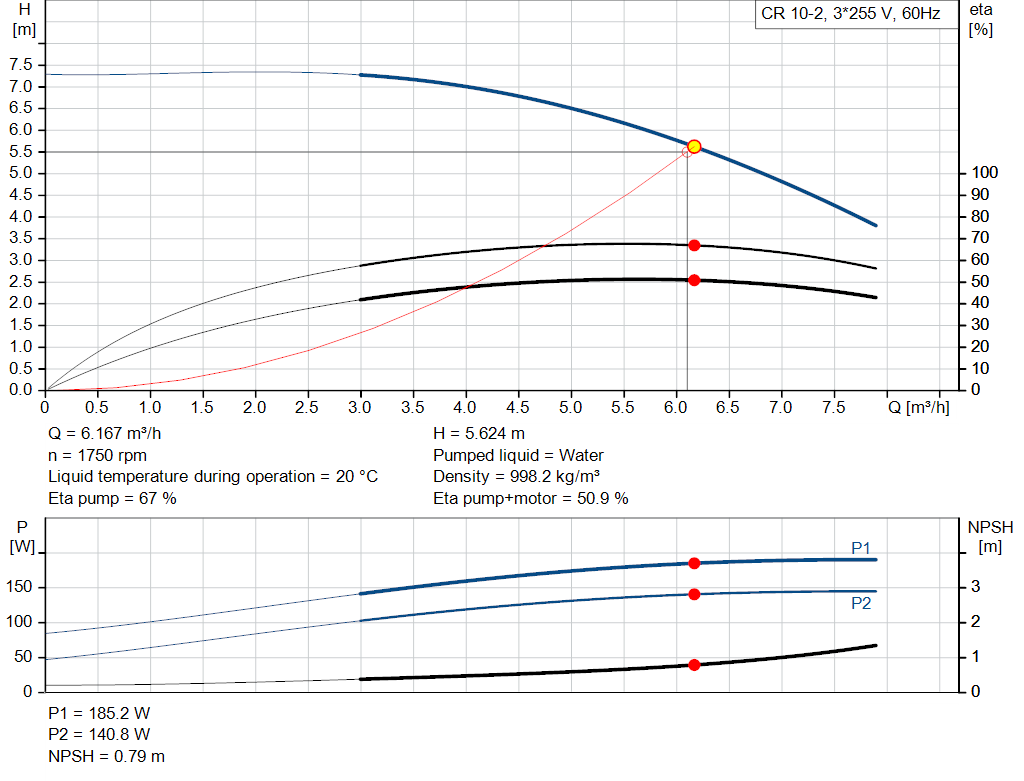

| Rated flow: | 6.1 m³/h |
| Rated head: | 5.5 m |
| Pump orientation: | Vertical |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | HQQE |
| Code for shaft seal: | HQQE |
| Approvals: | CE,EAC,UKCA,SEPRO |
| Approvals for drinking water: | WRAS,ACS |
| Curve tolerance: | ISO9906:2012 3B |
| Materials: | |
| Base: | Cast iron |
| EN 1561 EN-GJL-200 | |
| ASTM A48-25B | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Bearing: | SIC |
| Installation: | |
| Maximum ambient temperature: | 40 °C |
| Maximum operating pressure: | 16 bar |
| Max pressure at stated temp: | 16 bar / 120 °C |
| 16 bar / -20 °C | |
| Type of connection: | DIN / JIS |

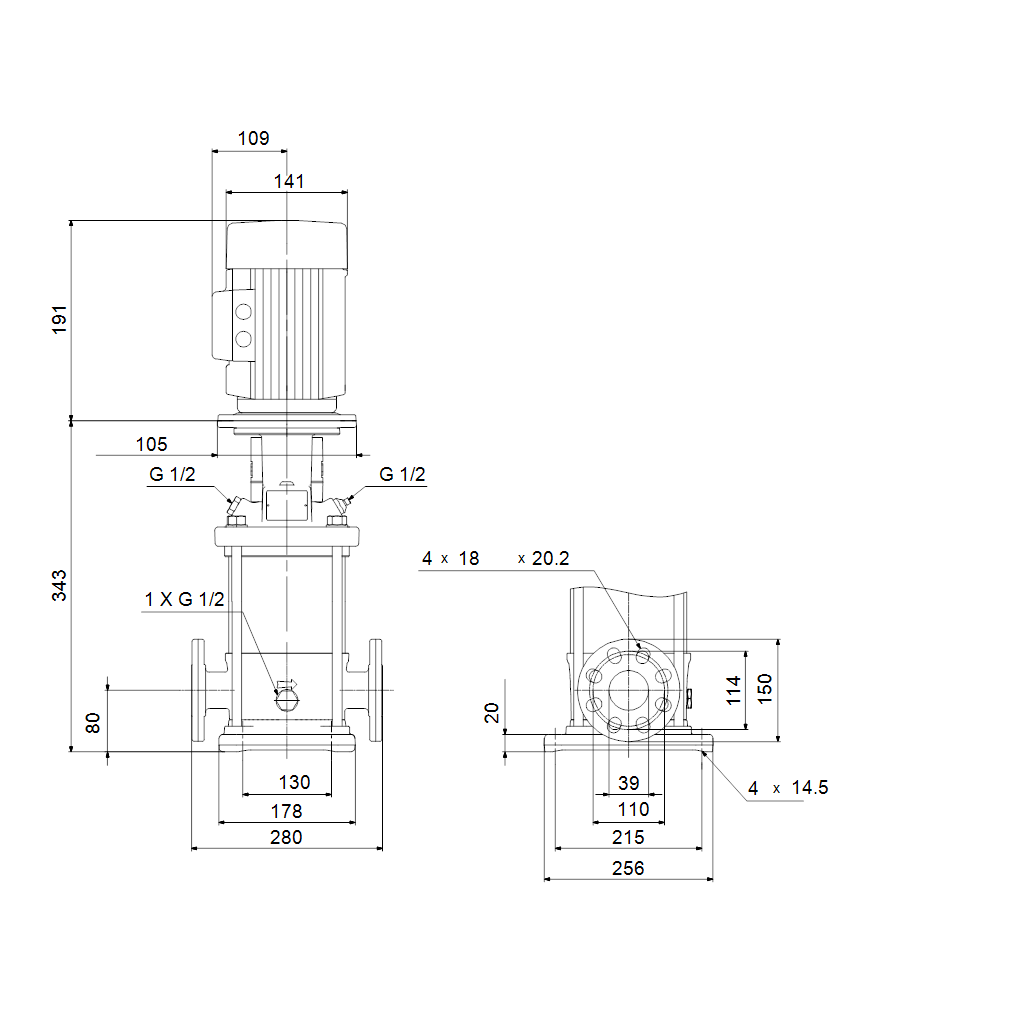

| Size of inlet connection: | DN 40 |
| 1 1/2 inch | |
| Size of outlet connection: | DN 40 |
| Pressure rating for connection: | PN 25 |
| Flange rating inlet: | 300 lb |
| Flange size for motor: | FT85 |
| Electrical data: | |
| Motor standard: | IEC |
| Motor type: | 71A |
| Rated power - P2: | 0.25 kW |
| Power (P2) required by pump: | 0.25 kW |
| Mains frequency: | 60 Hz |

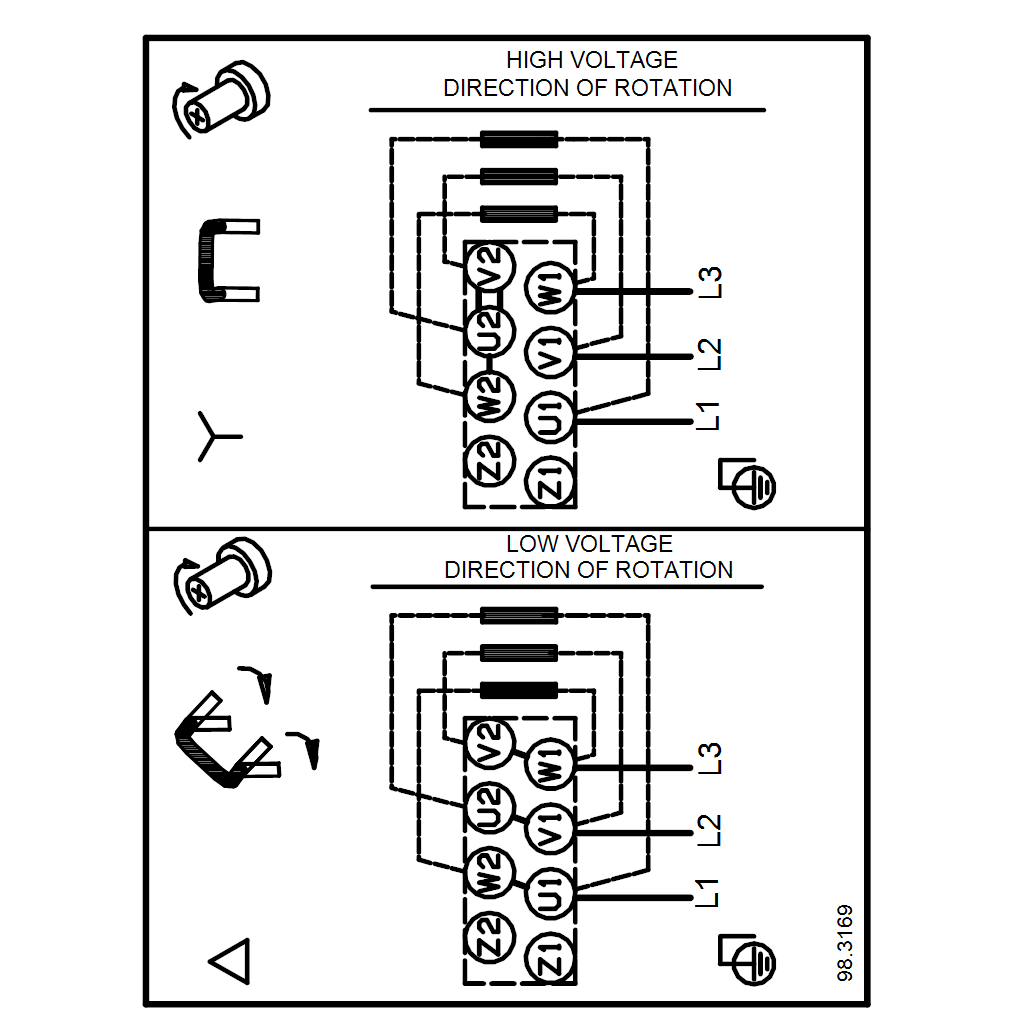

| Rated voltage: | 3 x 220-255D/380-440Y V |
| Rated current: | 1.18/0.68 A |
| Starting current: | 410-490 % |

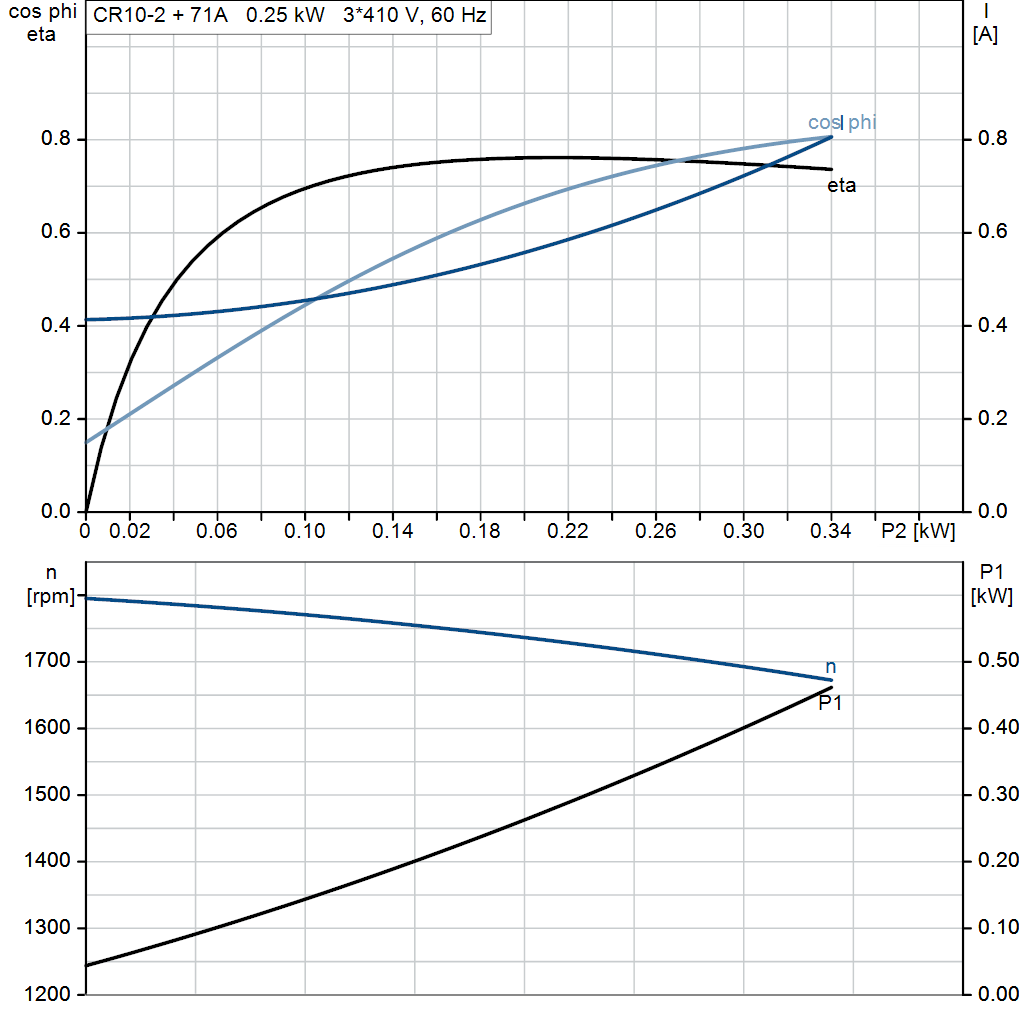

| Cos phi - power factor: | 0.79-0.68 |
| Rated speed: | 1700-1730 rpm |
| IE Efficiency class: | NEMA Energy / IE2 60Hz / NRC |
| Motor efficiency at full load: | 74.5-75.2 % |
| Motor efficiency at 3/4 load: | 76.2-73.7 % |
| Motor efficiency at 1/2 load: | 74.3-68.5 % |
| Number of poles: | 4 |
| Enclosure class (IEC 34-5): | 55 Dust/Jetting |
| Insulation class (IEC 85): | F |
| Motor No: | 99928151 |
| Controls: | |
| Frequency converter: | None |
| Others: | |
| Terminal box position: | 6 |
| Minimum efficiency index, MEI ≥: | 0.70 |
| Net weight: | 34 kg |
| Gross weight: | 46 kg |
| Shipping volume: | 0.14 m³ |
| Country of origin: | DK |
| Custom tariff no.: | 84137075 |
