CM 15-3 A-R-I-E-AVBE F-A-A-N [98693992]
CM 15-3 A-R-I-E-AVBE F-A-A-N [98693992]
Grundfos
Normale prijs
€2.987,25 EUR
Normale prijs
€3.734,06 EUR
Aanbiedingsprijs
€2.987,25 EUR
Eenheidsprijs
/
per
Belastingen inbegrepen.
Verzendkosten worden berekend bij de checkout.
Prijs (ex BTW): €2.468,80
Kan beschikbaarheid voor afhalen niet laden

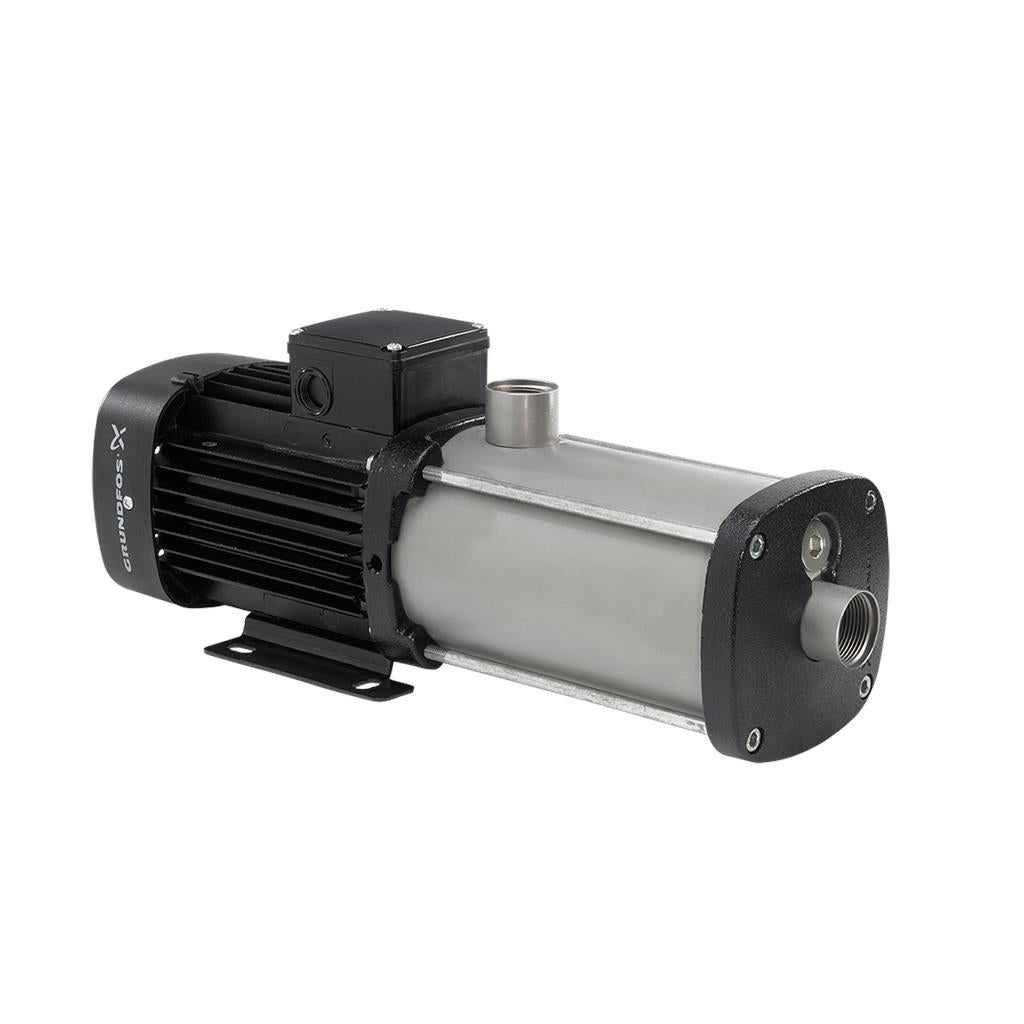

Compacte, betrouwbare, horizontale meertraps centrifugaal pomp met axiale zuigpoort en radiale perspoort. Pompmaterialen in contact met de vloeistof zijn uitgerust in roestvaststaal. De mechanische asafdichting is een speciaal ontworpen, niet-gebalanceerde O-ring afdichting. Aansluiting van het leidingwerk via inwendige Whitworth pijp schroefdraad, Rp (ISO 7/1). De pomp is uitgerust met een 3-fase, op de voet gemonteerde, ventilatorgekoelde a-synchrone motor.
Specs Table
| Controls: | |
| Frequency converter: | None |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -20 .. 90 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |
| Pump speed on which pump data are based: | 2900 rpm |

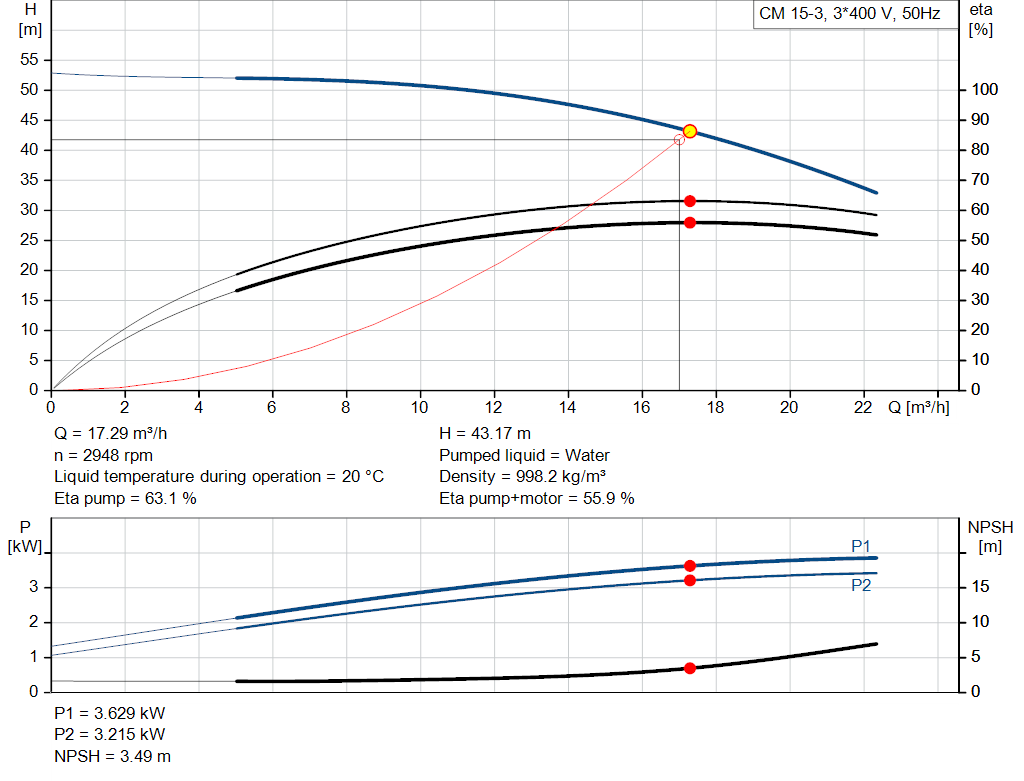

| Rated flow: | 17 m³/h |
| Rated head: | 41.77 m |
| Primary shaft seal: | AVBE |
| Code for shaft seal: | AVBE |
| Approvals: | CE,EAC,UKCA |
| Approvals for drinking water: | ACS,NSF61,UBA |
| Curve tolerance: | ISO9906:2012 3B |
| Materials: | |
| Pump housing: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Installation: | |
| Range of ambient temperature: | -20 .. 55 °C |
| Maximum operating pressure: | 10 bar |
| Max pressure at stated temp: | 10 bar / 40 °C |
| 6 bar / 90 °C | |

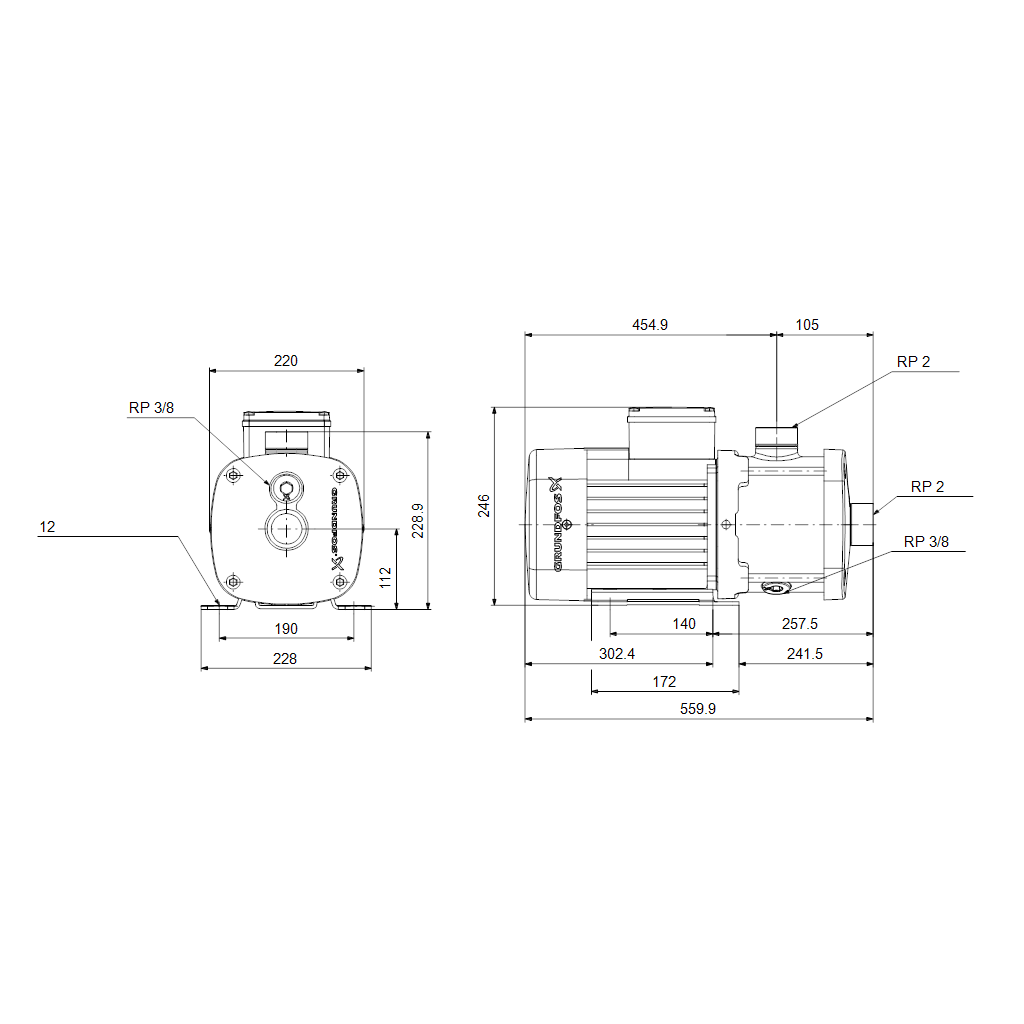

| Type of connection: | Rp |
| Size of inlet connection: | 2 inch |
| Size of outlet connection: | 2 inch |
| Outlet position: | 12 |

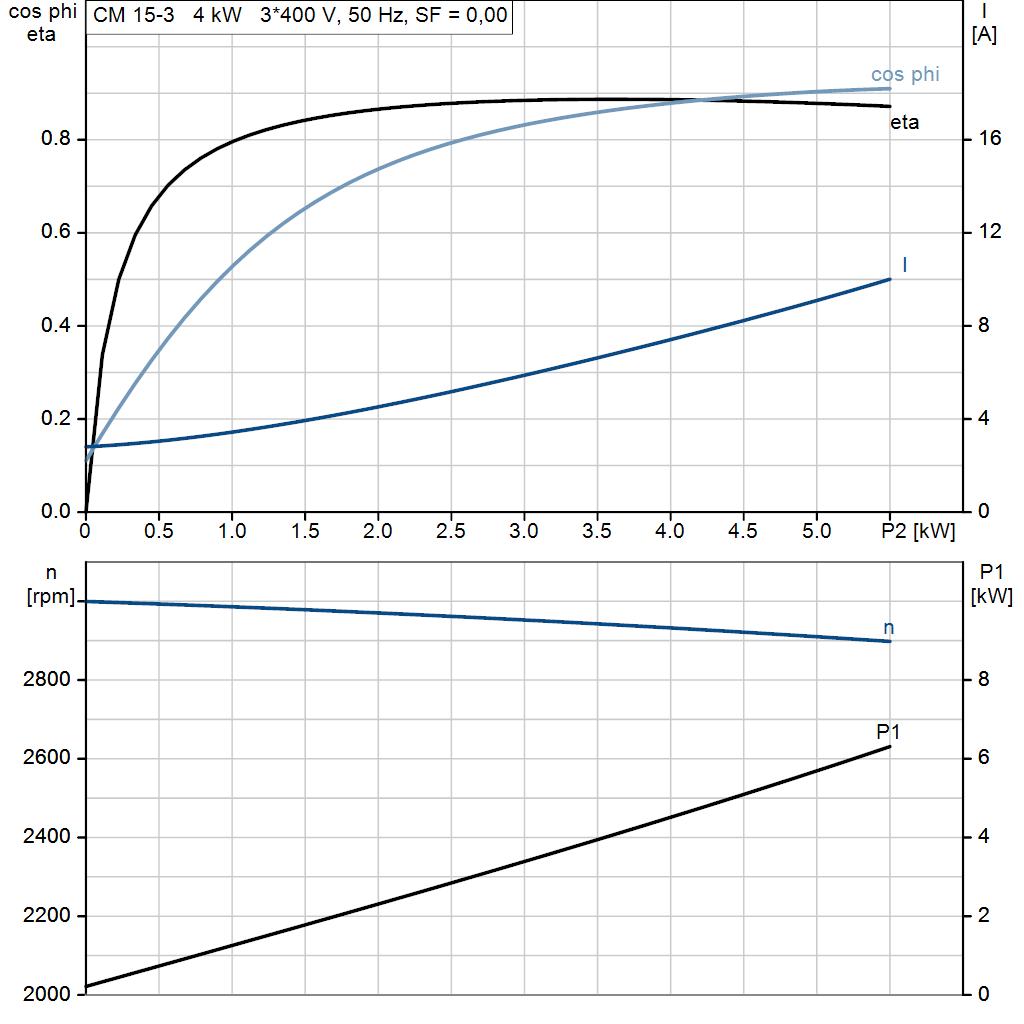

| Electrical data: | |
| Motor standard: | IEC |
| Frame size: | 112MC |
| IE efficiency class: | IE3 |
| Rated power - P2: | 4 kW |
| Mains frequency: | 50 Hz |
| Suitable for 50/60 Hz (Yes/No): | N |
| Rated voltage: | 3 x 220-240D/380-415Y V |
| Service factor: | 0.00 |
| Rated current: | 13,8-13,2/8,00-7,65 A |
| Starting current: | 1120-1230 % |
| Rated speed: | 2920-2940 rpm |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |

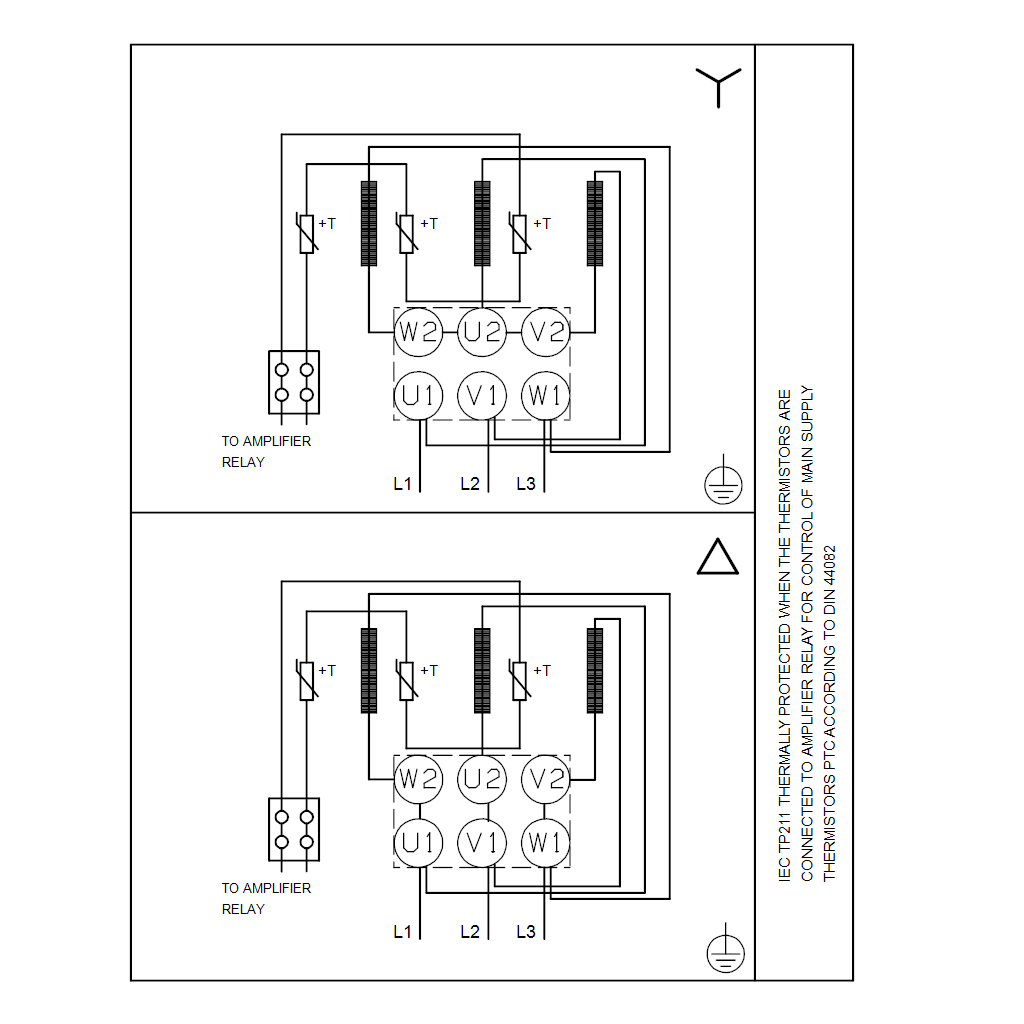

| Built-in motor protection: | PTC |
| Cable included (Yes/No): | N |
| Others: | |
| Terminal box position: | 12 |
| Minimum efficiency index, MEI ≥: | 0.59 |
| Net weight: | 43.2 kg |
| Gross weight: | 45.7 kg |
| Country of origin: | HU |
| Custom tariff no.: | 84137075 |
